Blower Motor Resistor: Testing and Inspection

RESISTOR INSPECTION

1. Remove the under cover.
2. Disconnect the resistor connector.
3. Check for continuity between the terminal C and E of the resistor.

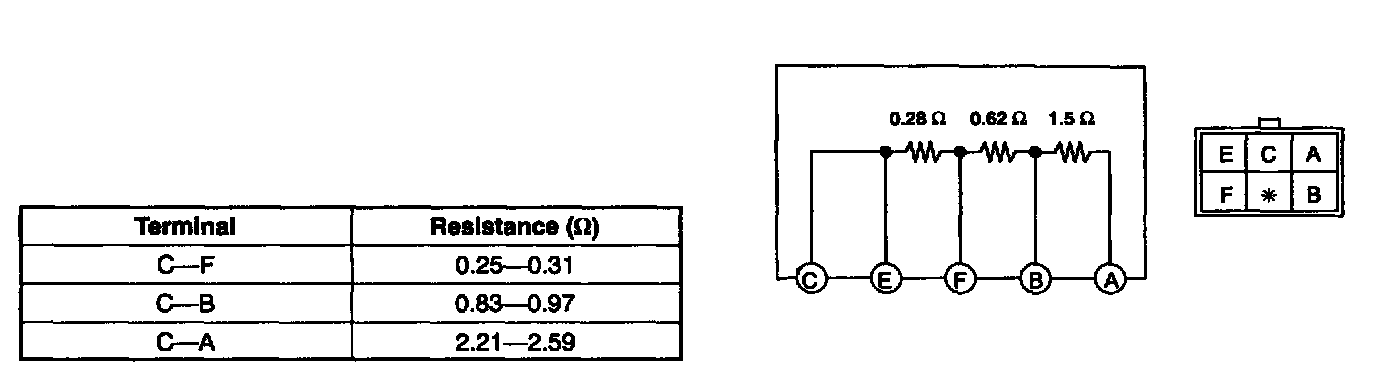

4. Verify that the resistance between the terminals of the resistor is as shown in the table.
If not as specified, replace the resistor.
