Compressor Clutch: Service and Repair

MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY

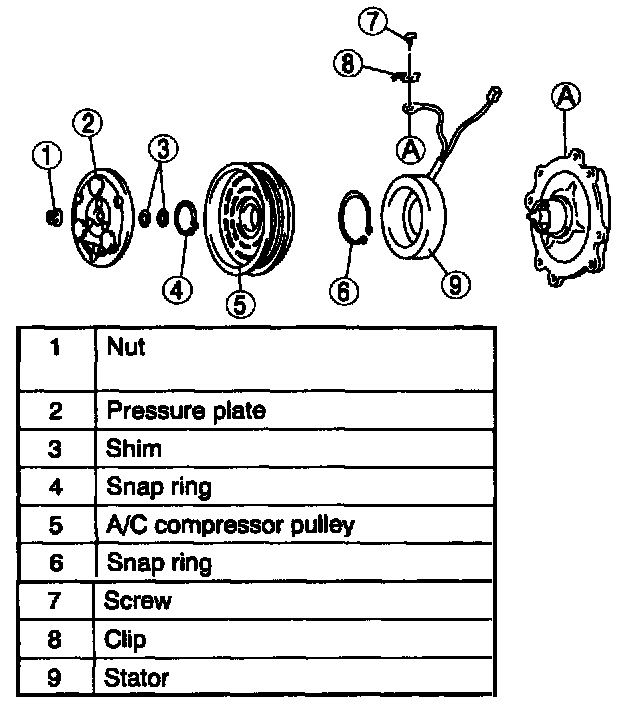

1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.




3. Adjust the magnetic clutch clearance.





Nut Removal/Installation Note

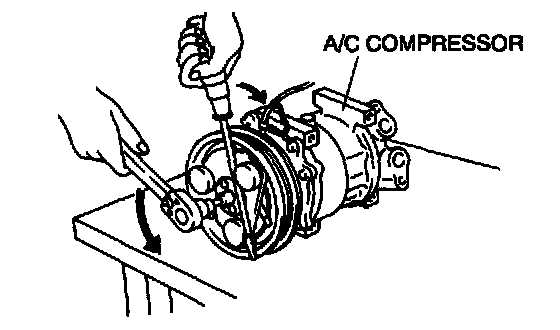

When removing or installing the nut, hold the pressure plate in place as shown in the figure.

A/C Compressor Pulley Removal Note
When removing the A/C compressor pulley, remove it by using a puller.
