Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mazda
>>
1999
>>
626 ES L4-2.0L DOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Control System
Control System

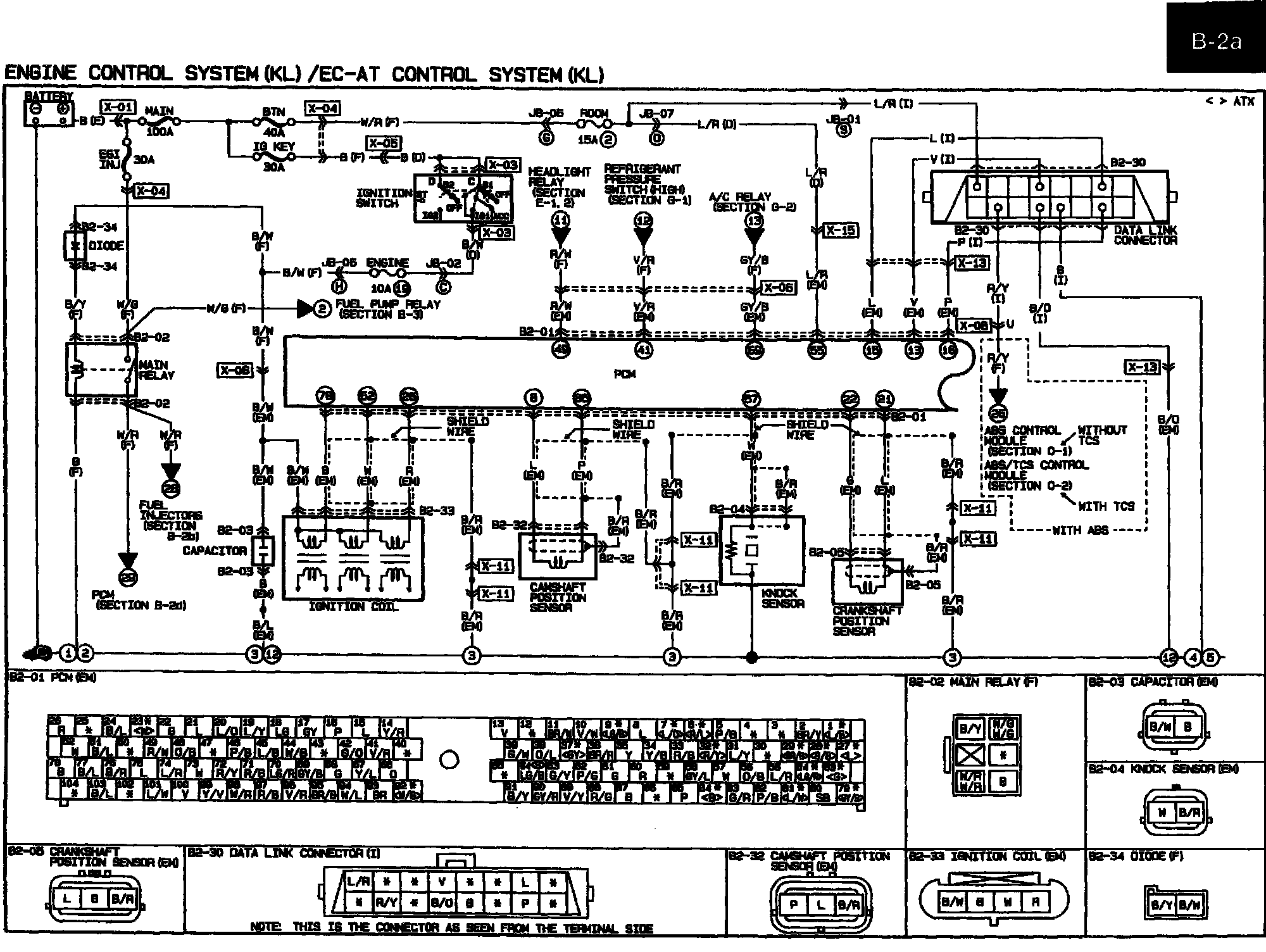

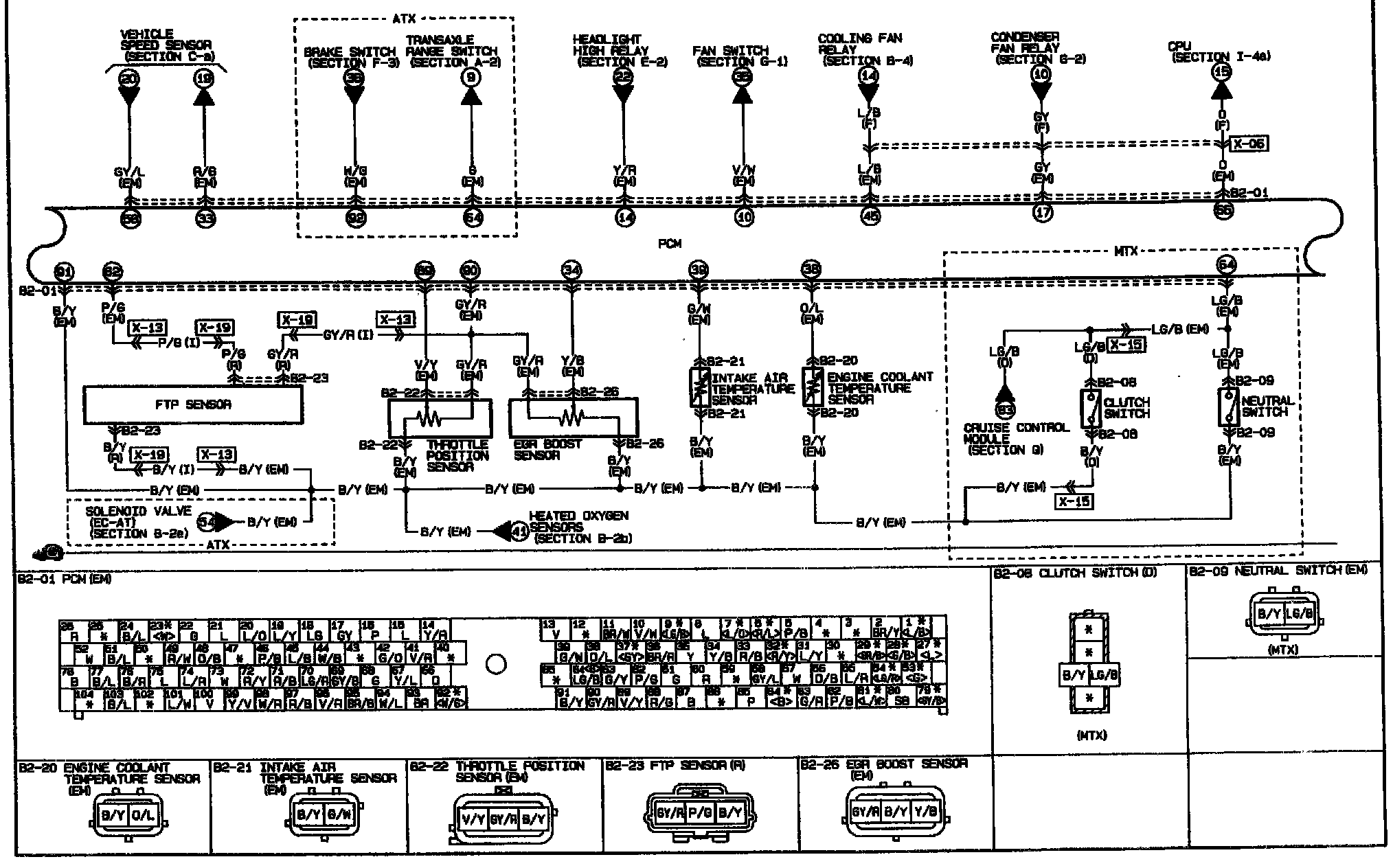

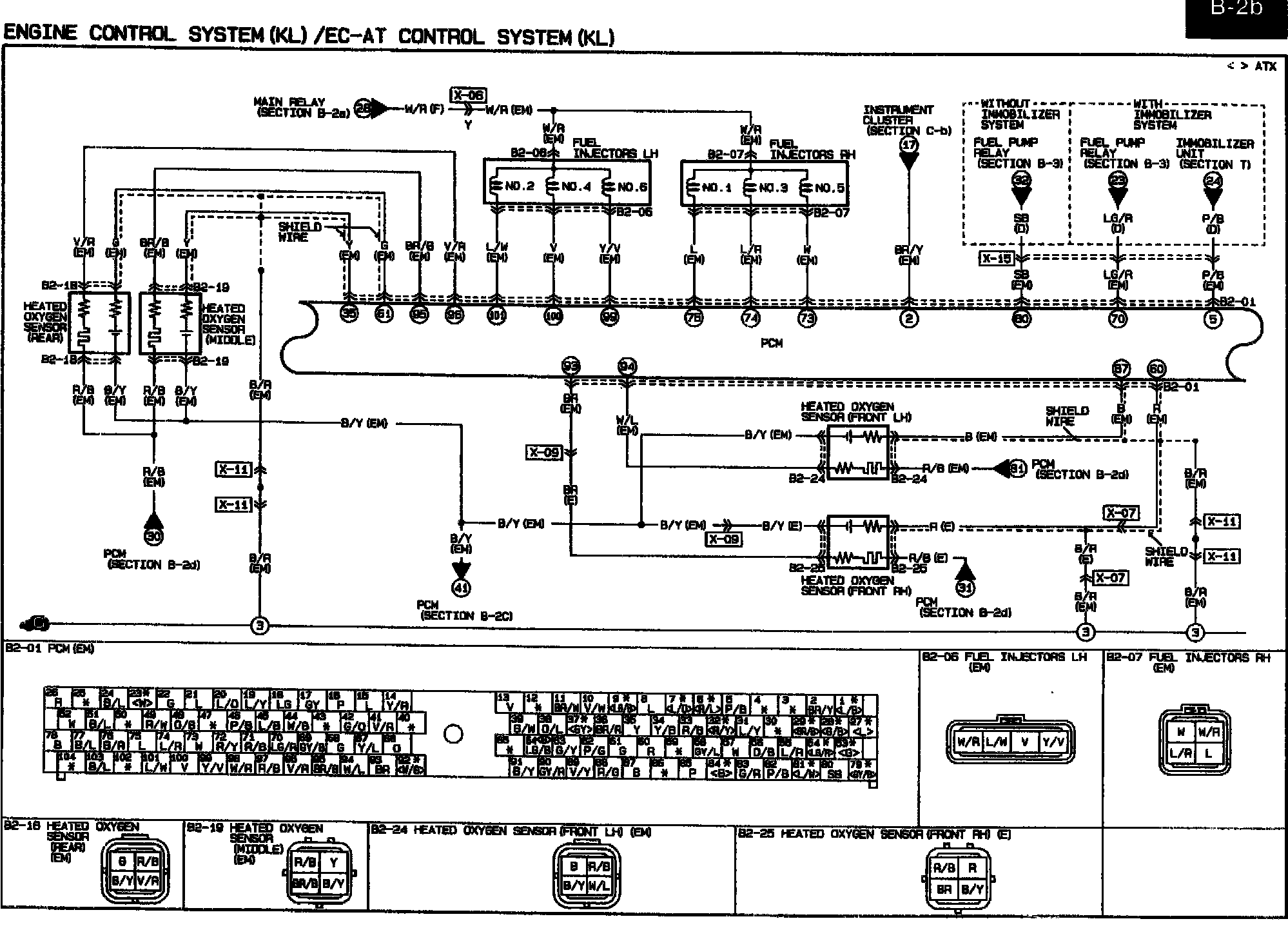

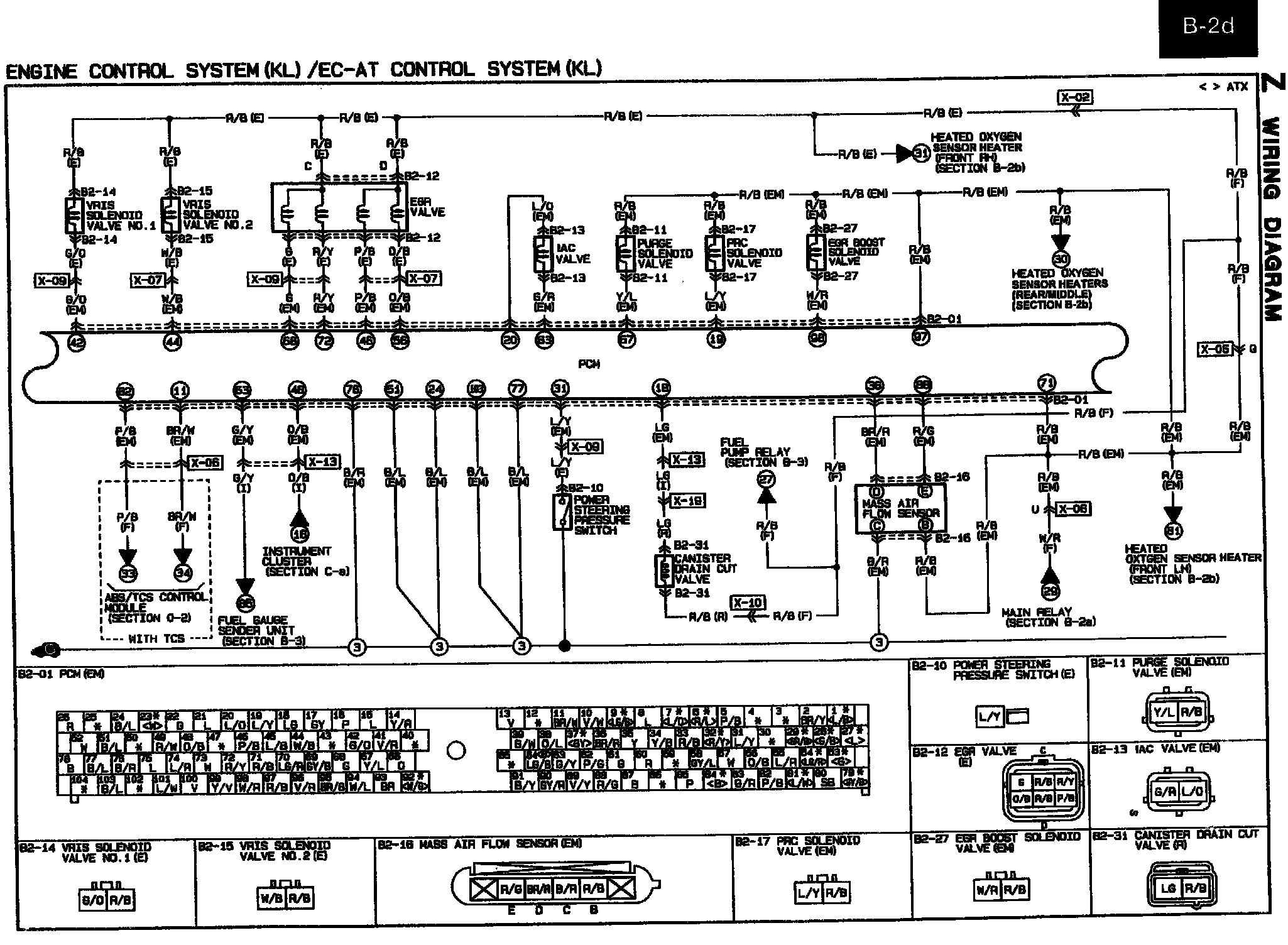

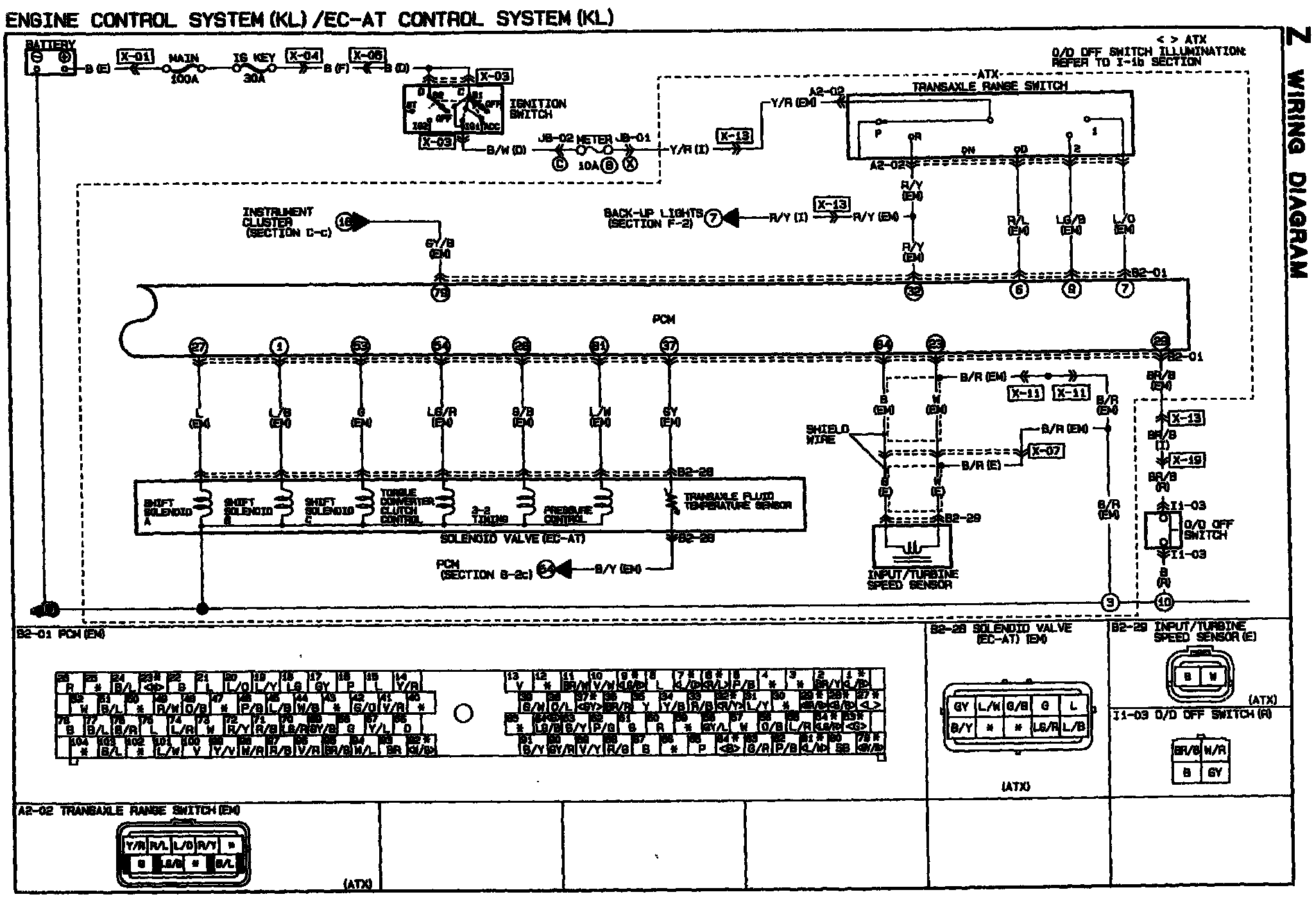

ECM AND RELATED WIRING
