RABS Control Module
REMOVAL / INSTALLATION1. Remove the audio unit.
2. Remove I/P center trim.
3. Remove the ash tray.

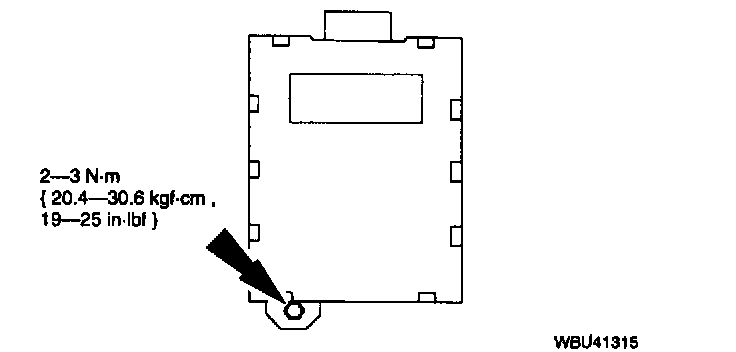

4. Remove the bolt.
5. Disconnect the RABS module connector O-238 and remove module.
6. Install in reverse order of removal.
1. Remove the audio unit.
2. Remove I/P center trim.
3. Remove the ash tray.
4. Remove the bolt.
5. Disconnect the RABS module connector O-238 and remove module.
6. Install in reverse order of removal.
