Home >> Mazda >> 1999 >> B2500 SE Cab Plus 2WD L4-2.5L VIN C >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Electronic Brake Control Module >> Testing and Inspection >> Component Tests and General Diagnostics >> Module Communication Index

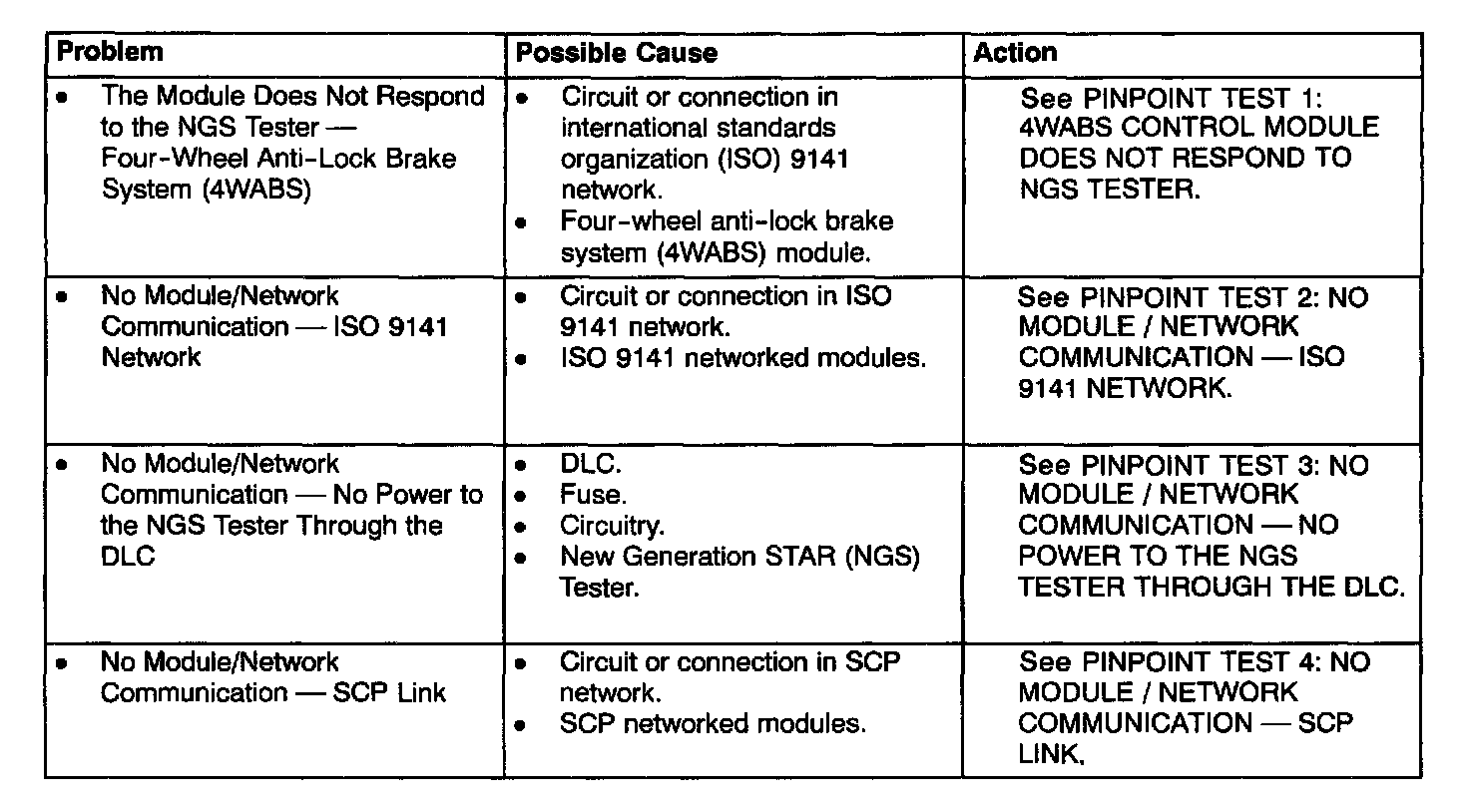

Module Communication Index
