System Diagram

Automatic Transmission Components

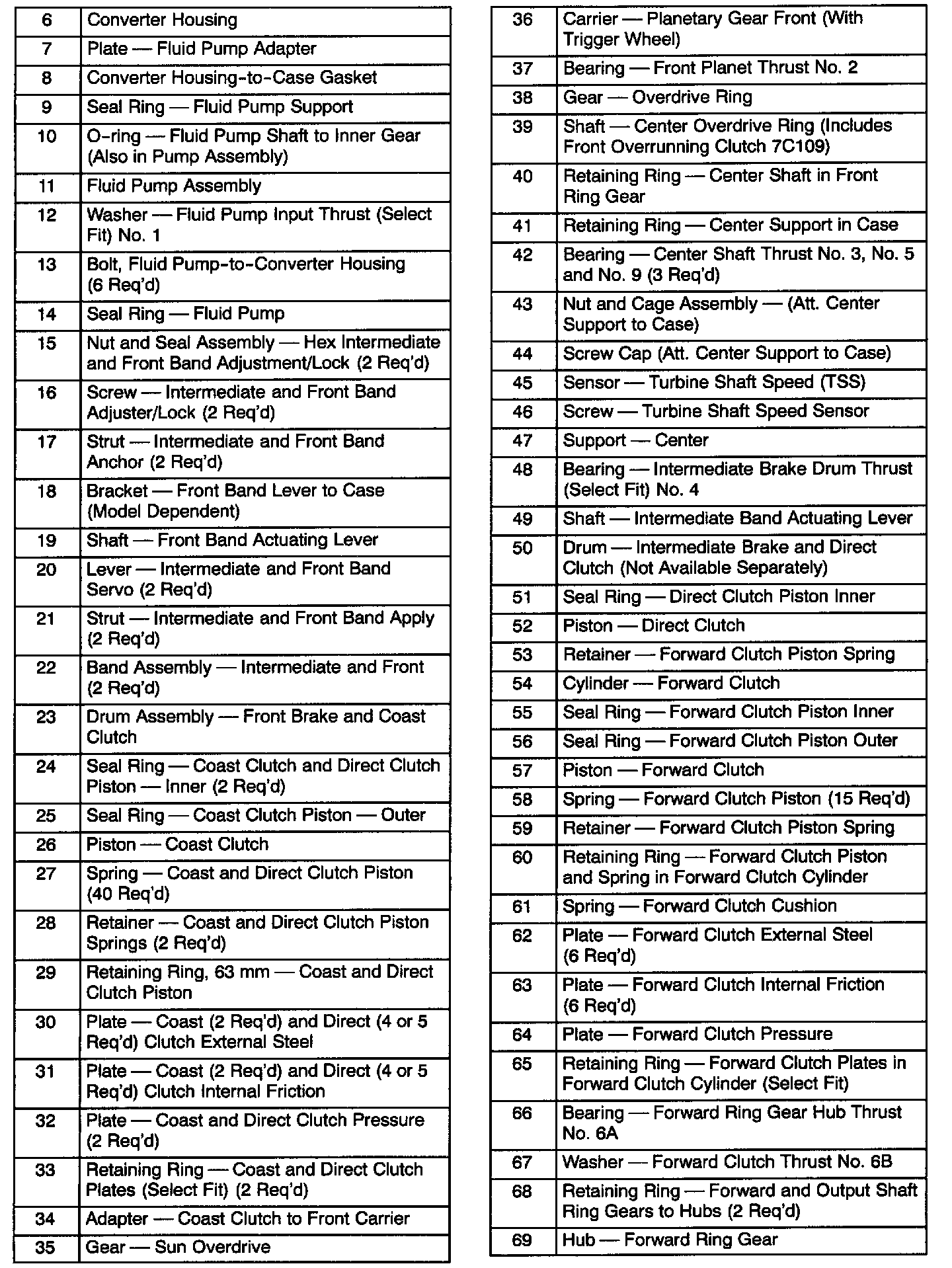

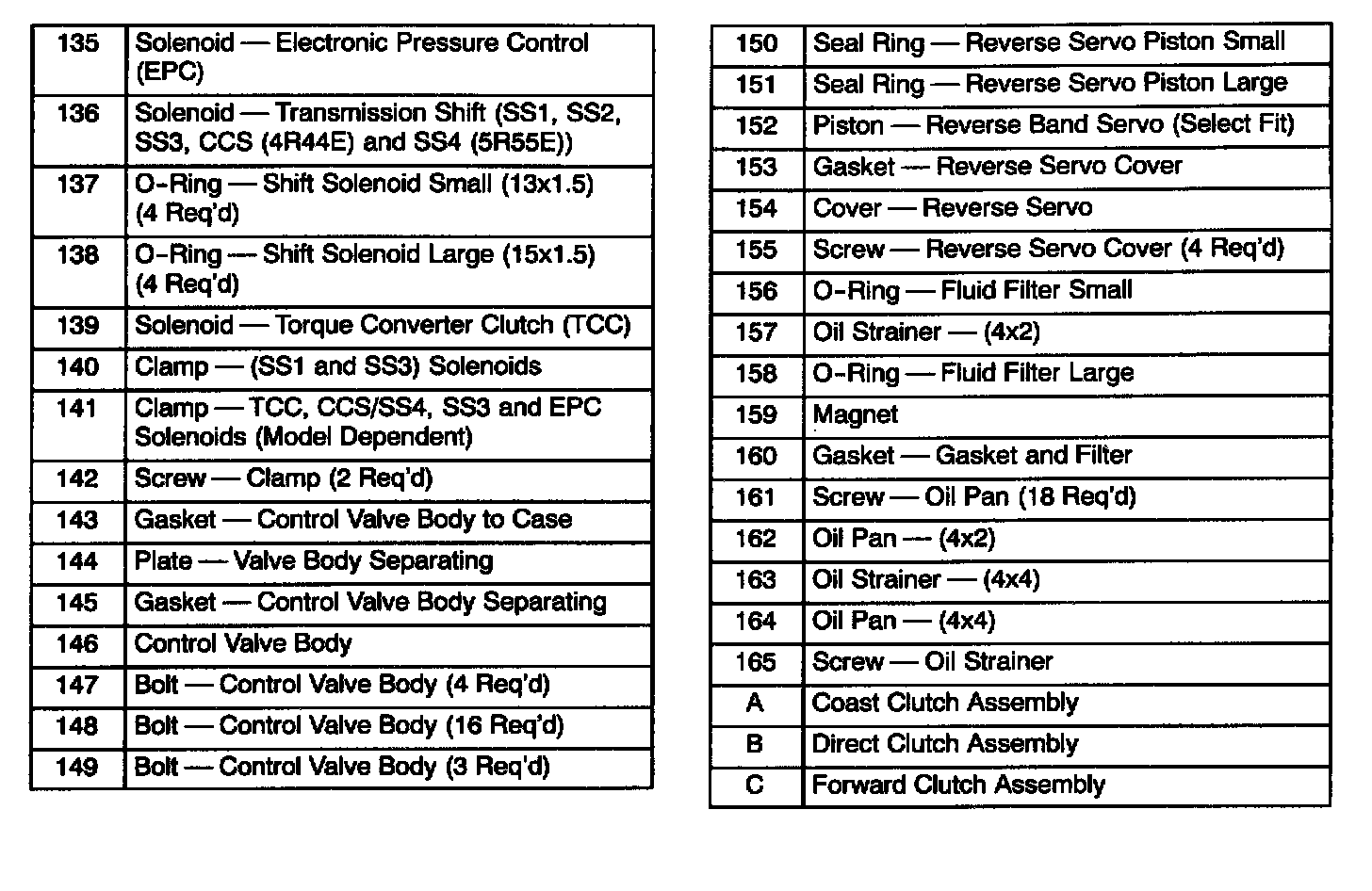

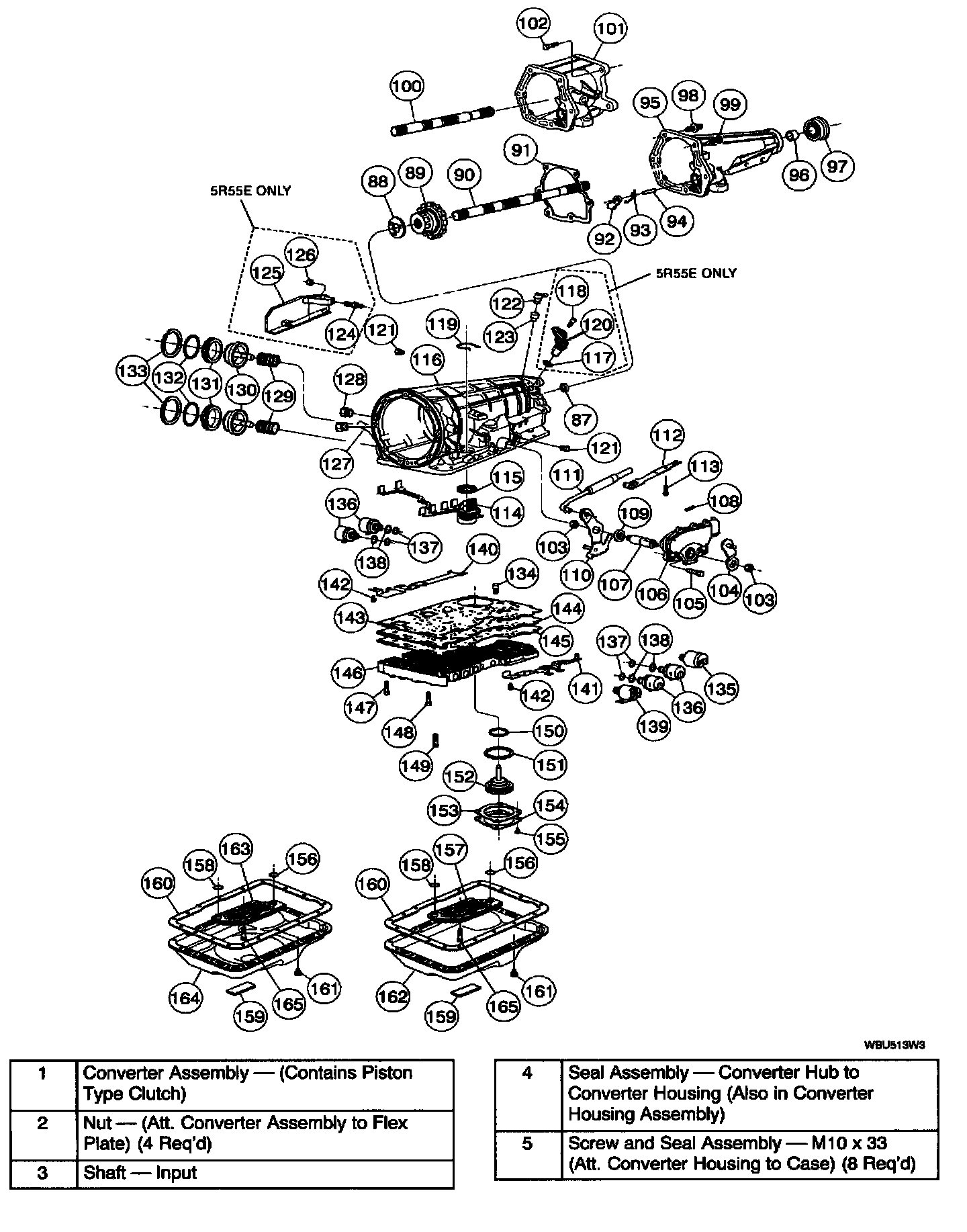

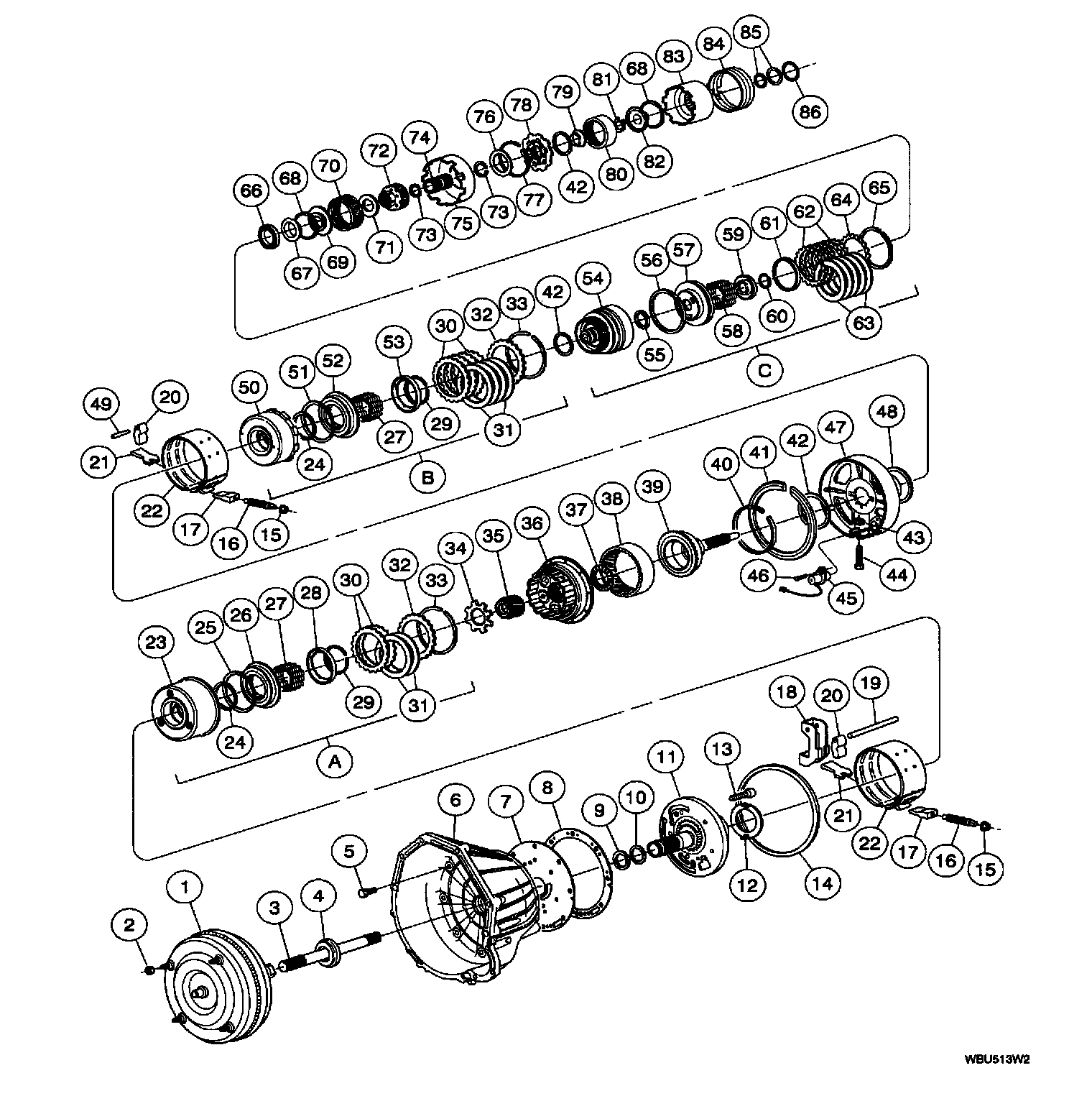

Disassembled View

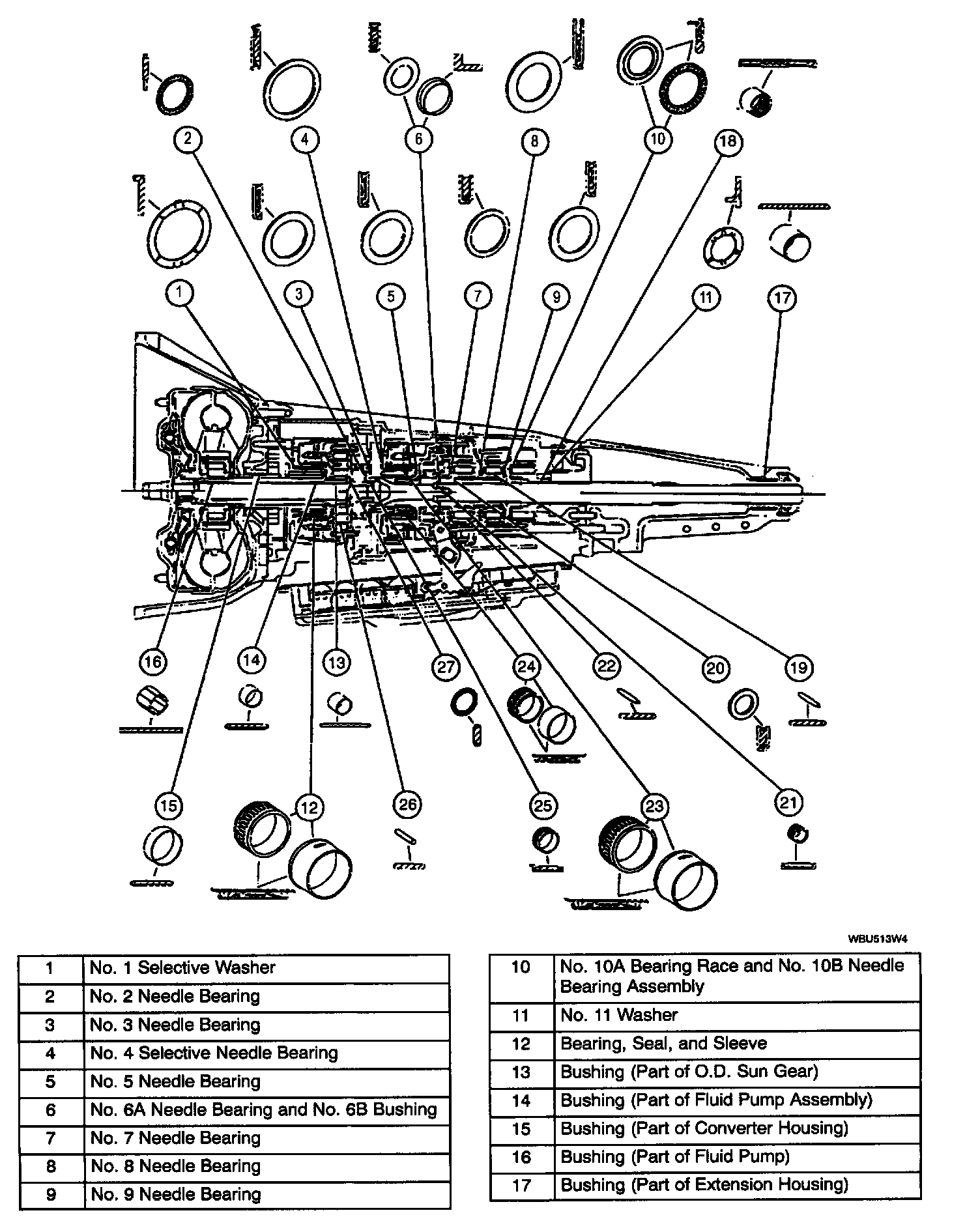

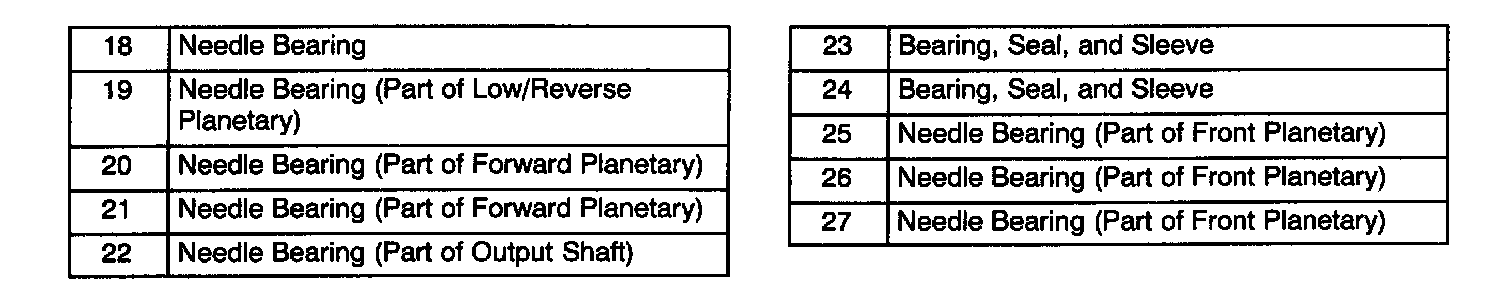

Bushings, Bearings And Thrust Washers Locator

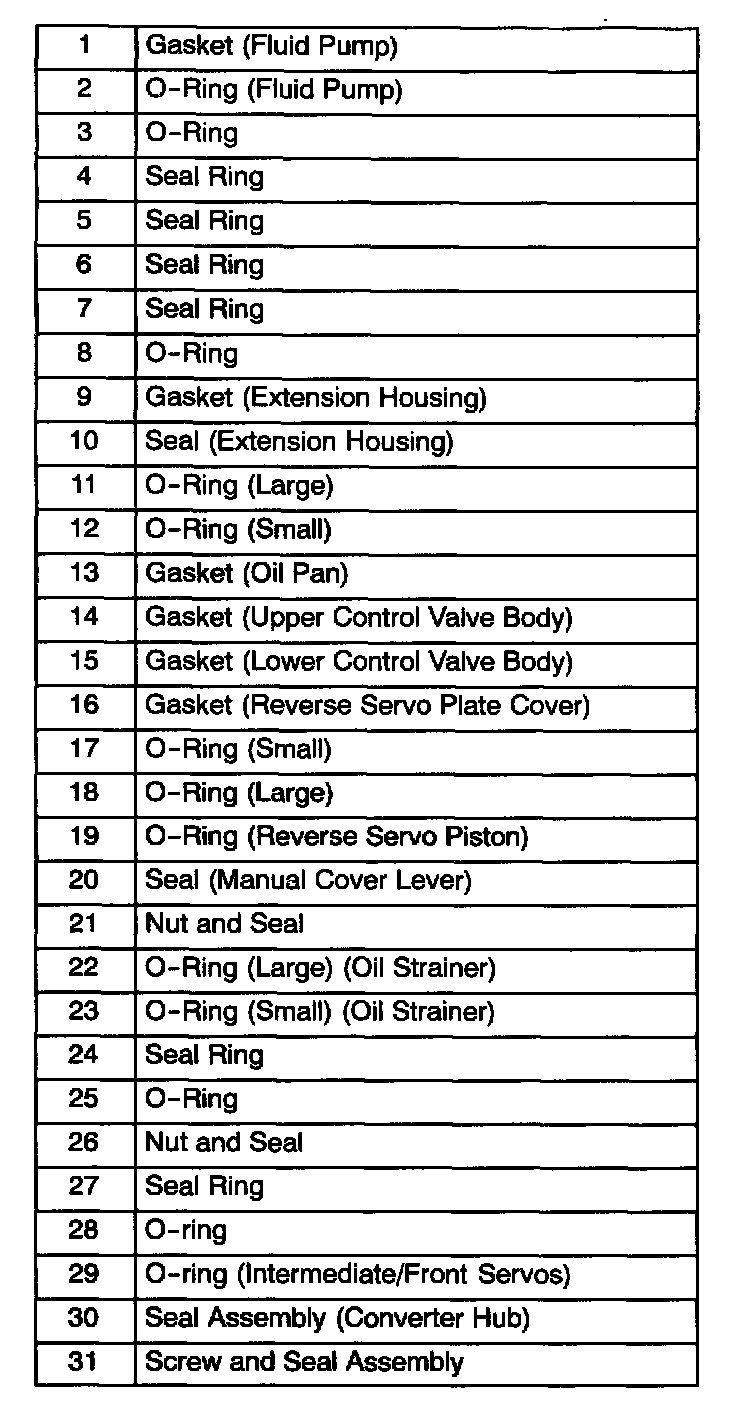

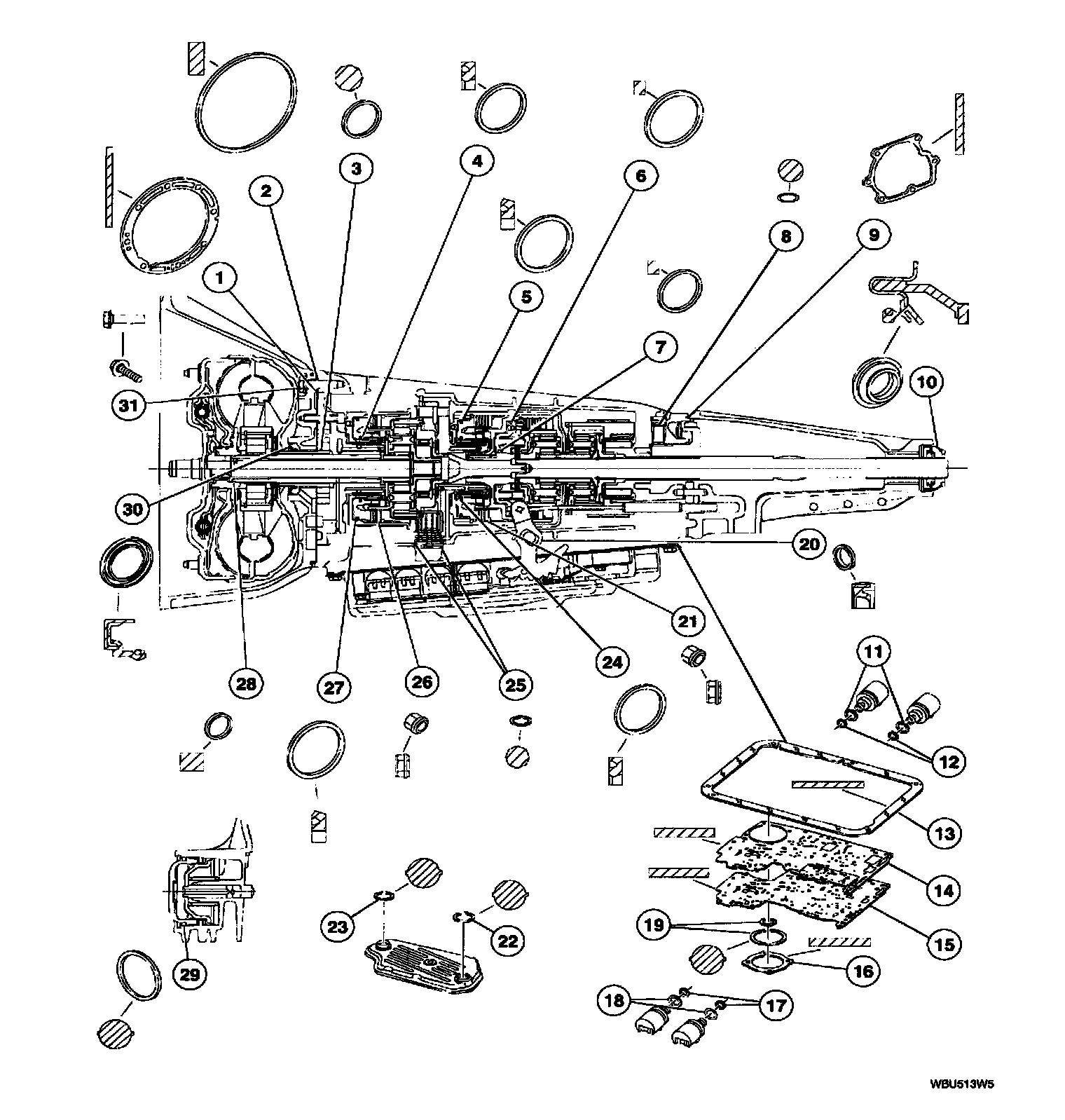

Seals, Rings And Gaskets Locator
