Technical Data

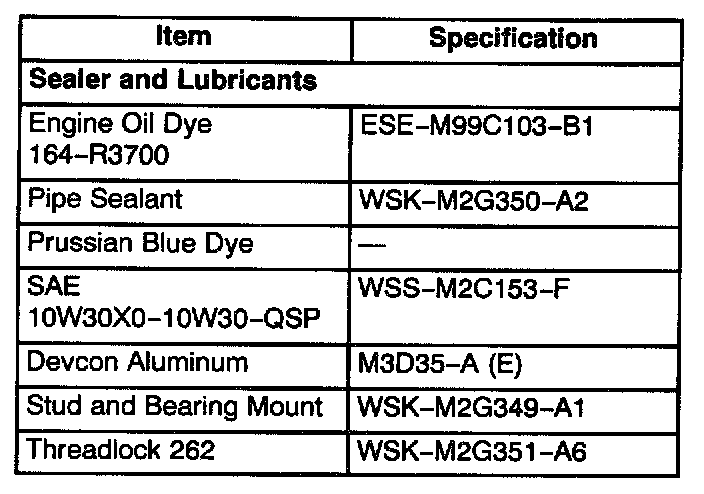

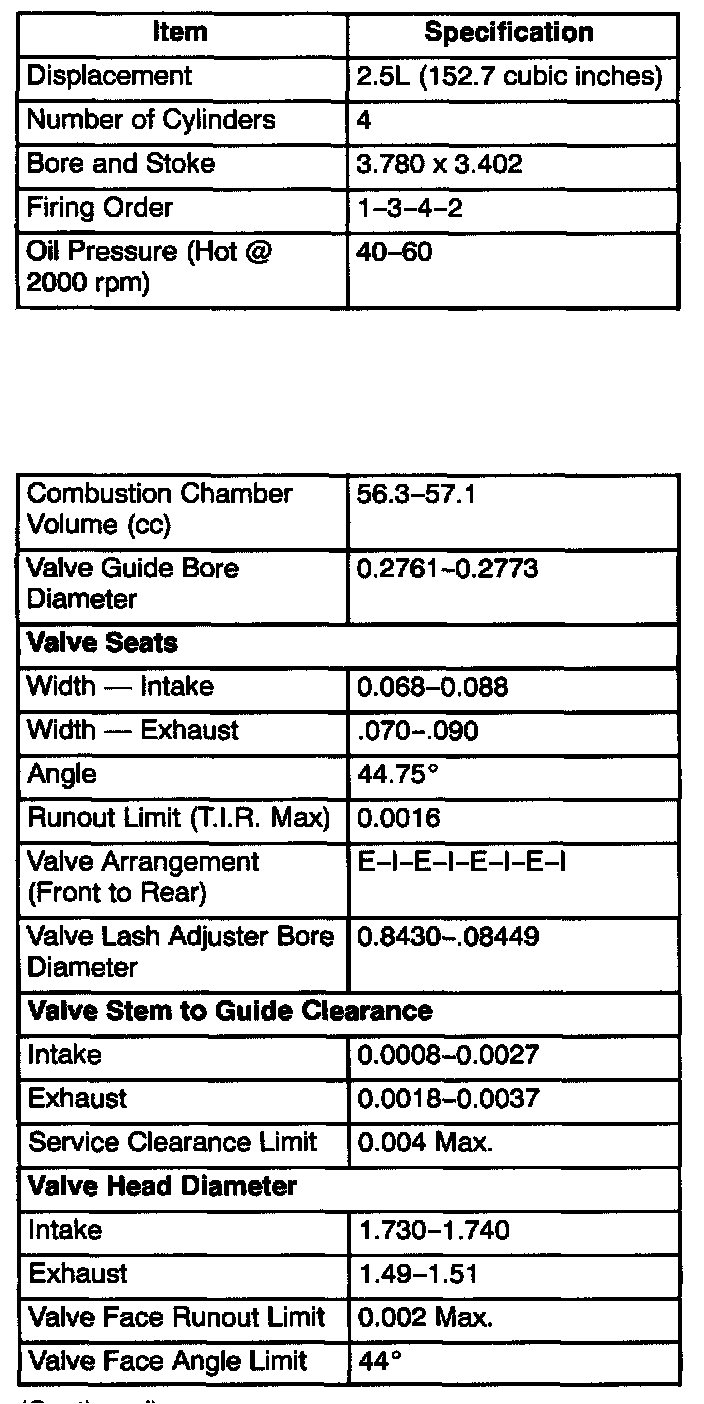

GENERAL SPECIFICATIONS

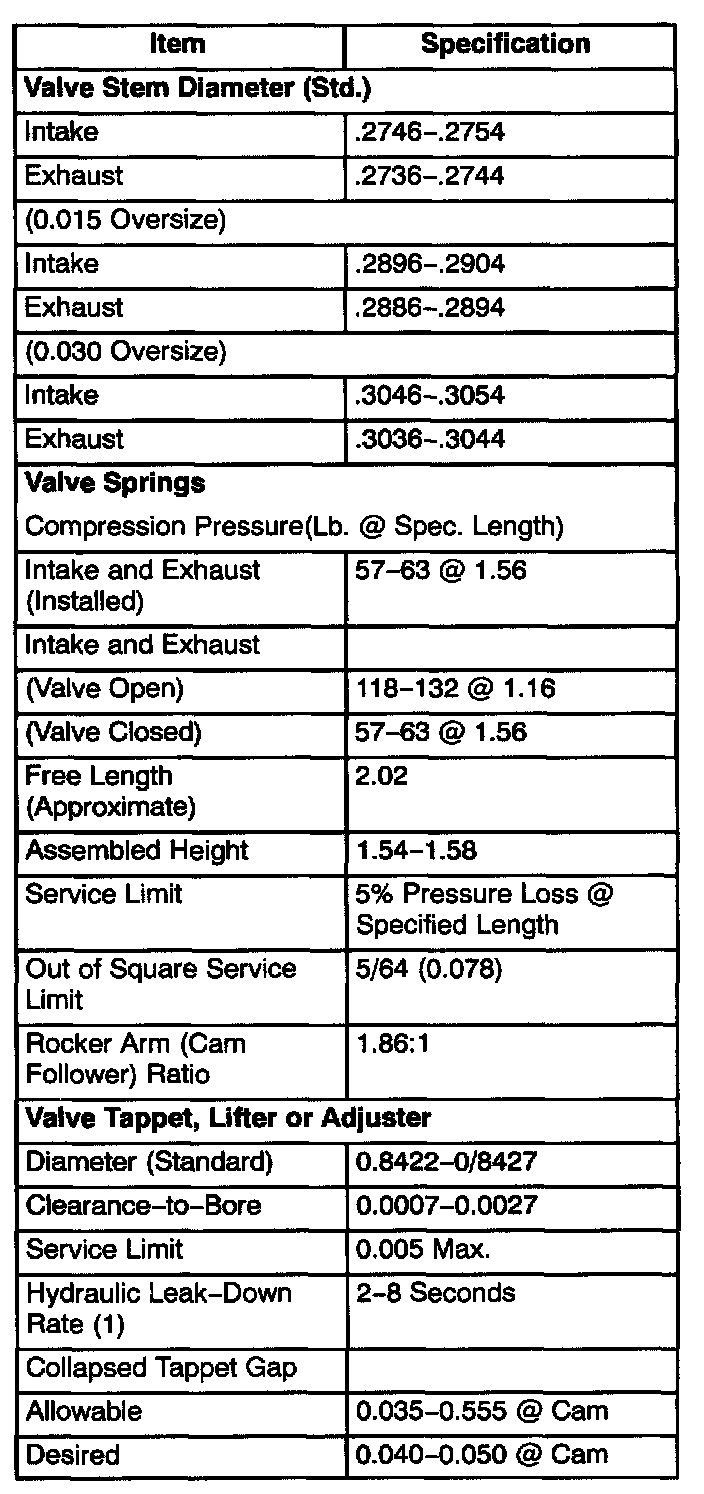

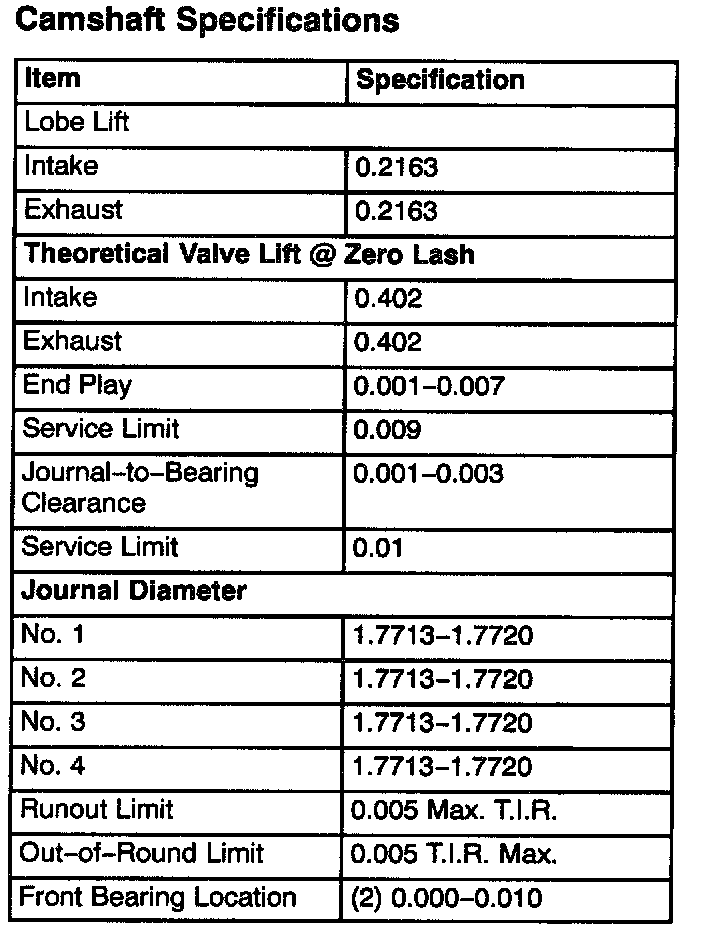

CAMSHAFT SPECIFICATIONS

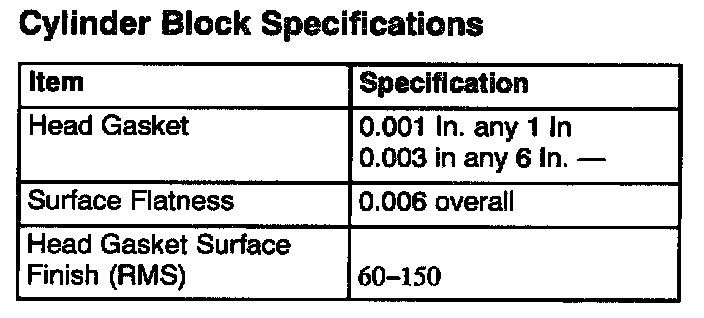

CYLINDER BLOCK SPECIFICATIONS

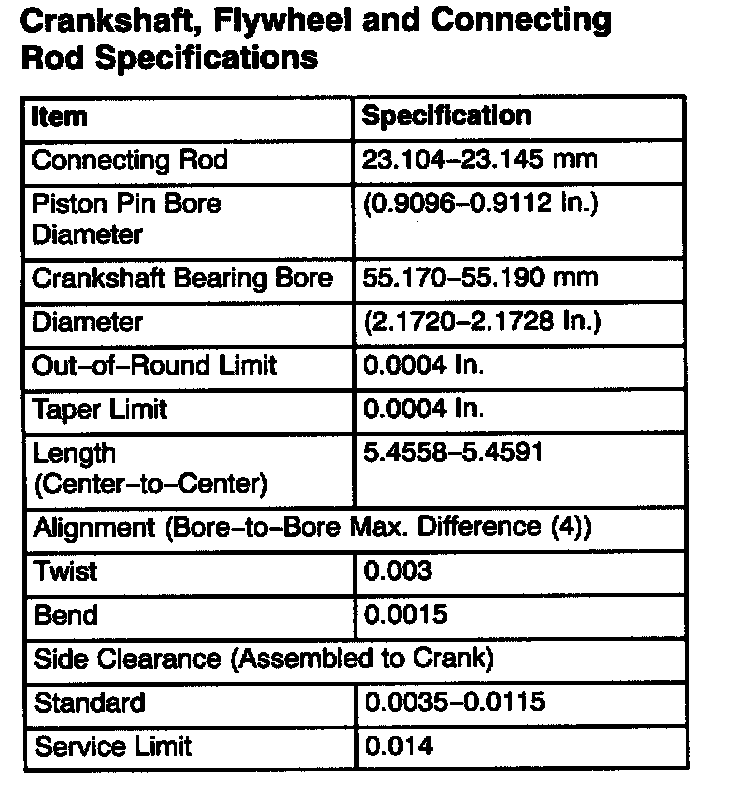

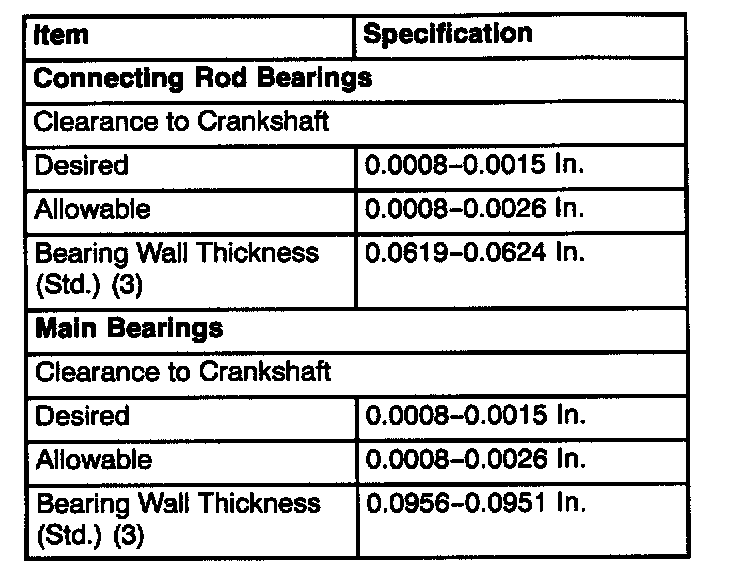

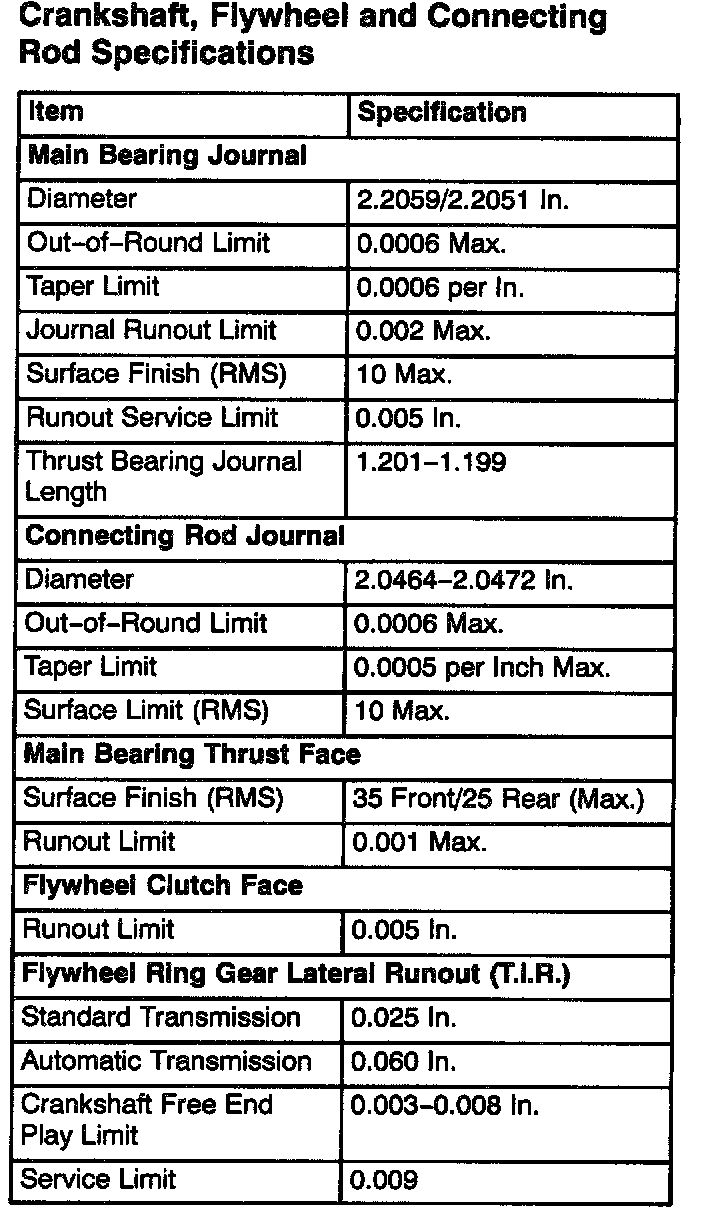

CRANKSHAFT, FLYWHEEL AND CONNECTING ROD SPECIFICATIONS

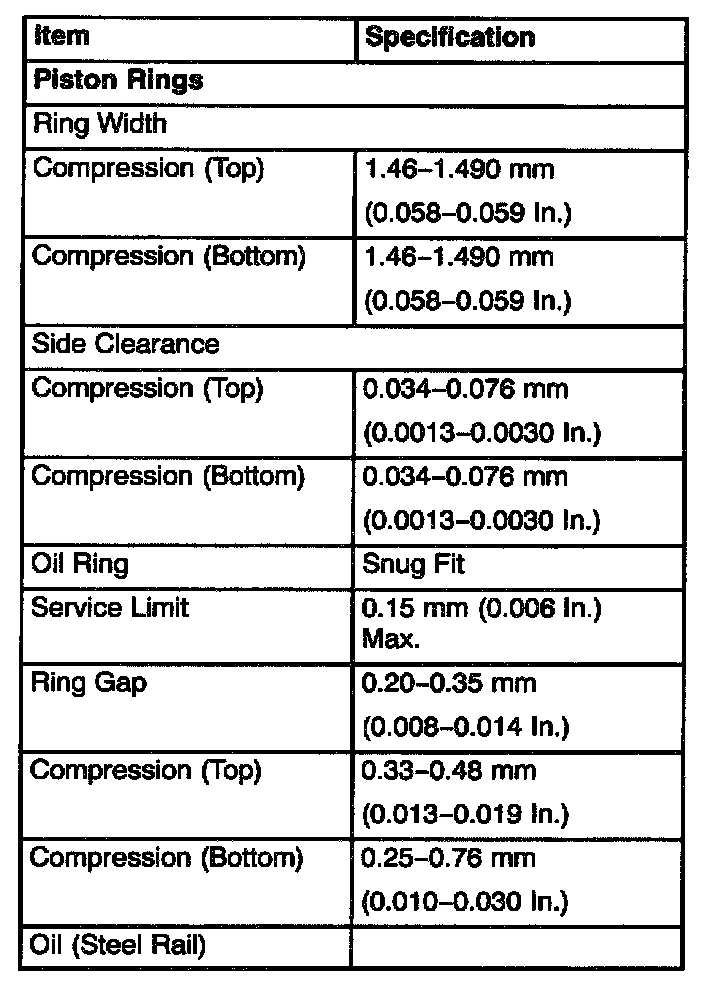

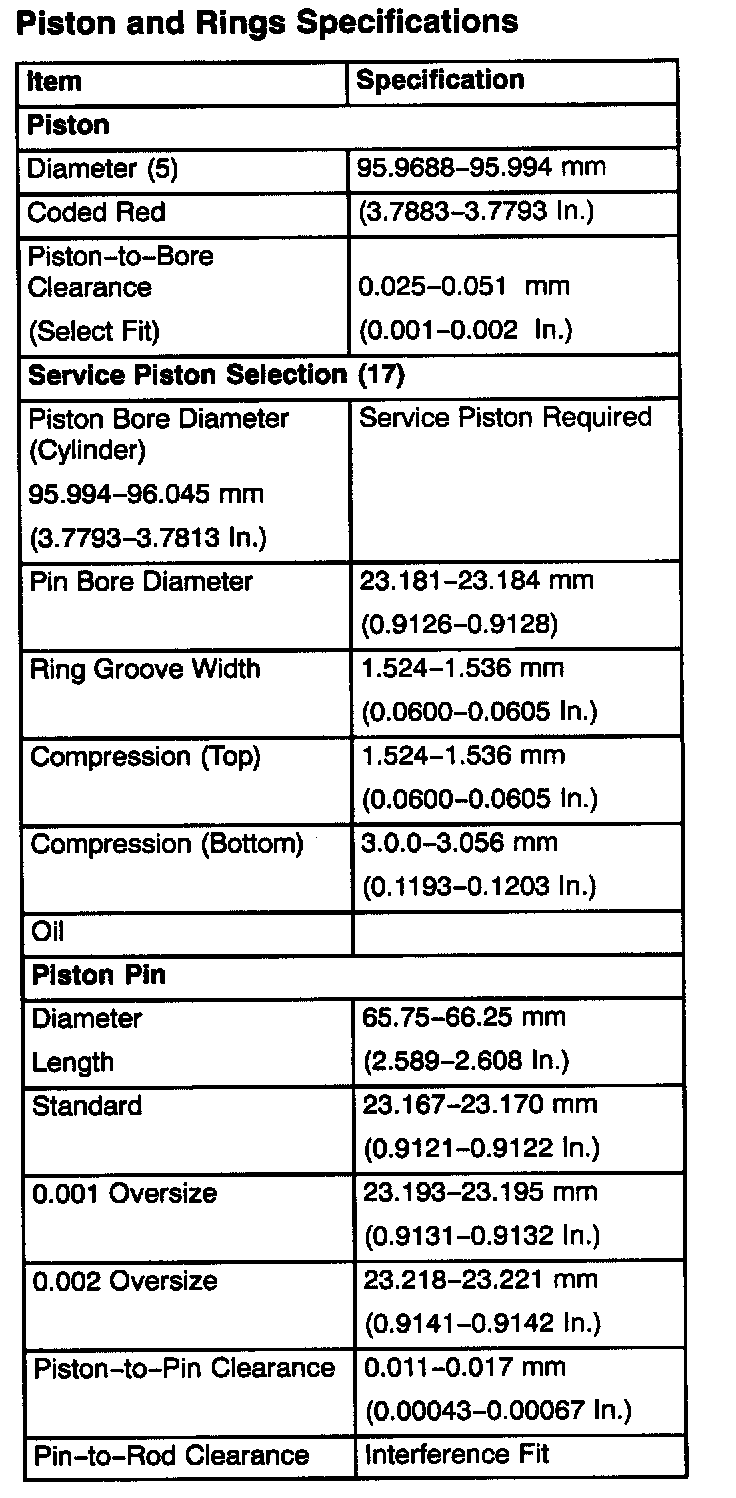

PISTON AND RINGS SPECIFICATIONS
