Heater Control Unit

1. Remove the audio unit. .
2. Remove the center trim finish panel. .




3. Remove the screws and remove the climate control assembly.

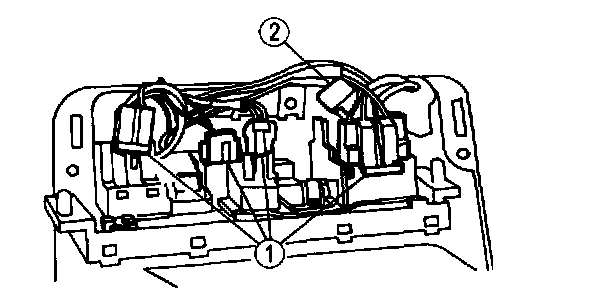

4. Disconnect the electrical connectors (1) and vacuum harness connector (2).
5. Install in reverse order of removal.
