Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mazda
>>
1999
>>
B2500 SE Cab Plus 2WD L4-2.5L VIN C
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Engine Control Module
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Related Diagnostic Procedures
>>

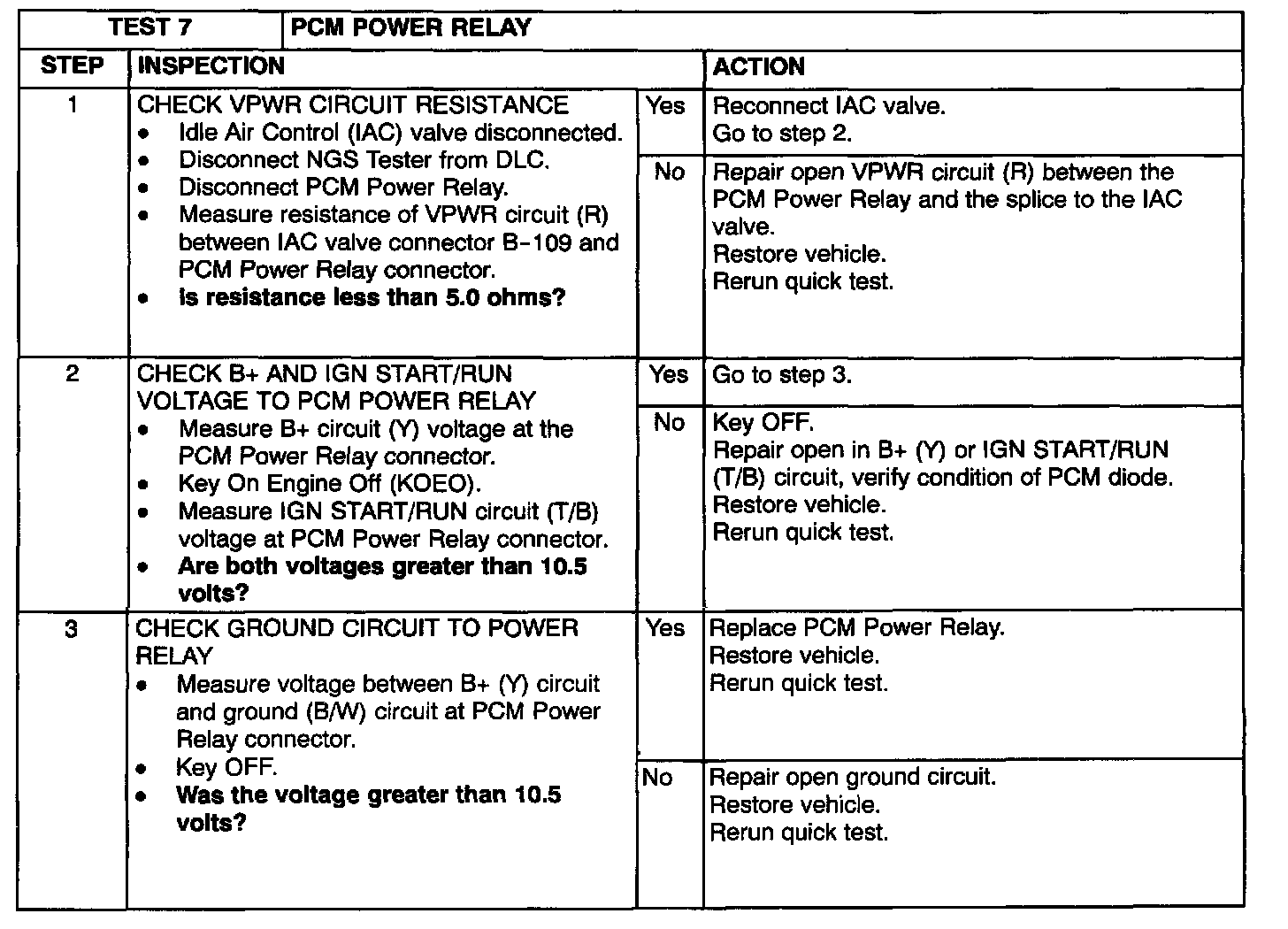

Test 7: PCM Power Relay
Test 7: PCM Power Relay
