Home >> Mazda >> 1999 >> B2500 SE Cab Plus 2WD L4-2.5L VIN C >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Pinpoint Tests >> 1: No Module/Network Communication-SCP Link

1: No Module/Network Communication-SCP Link

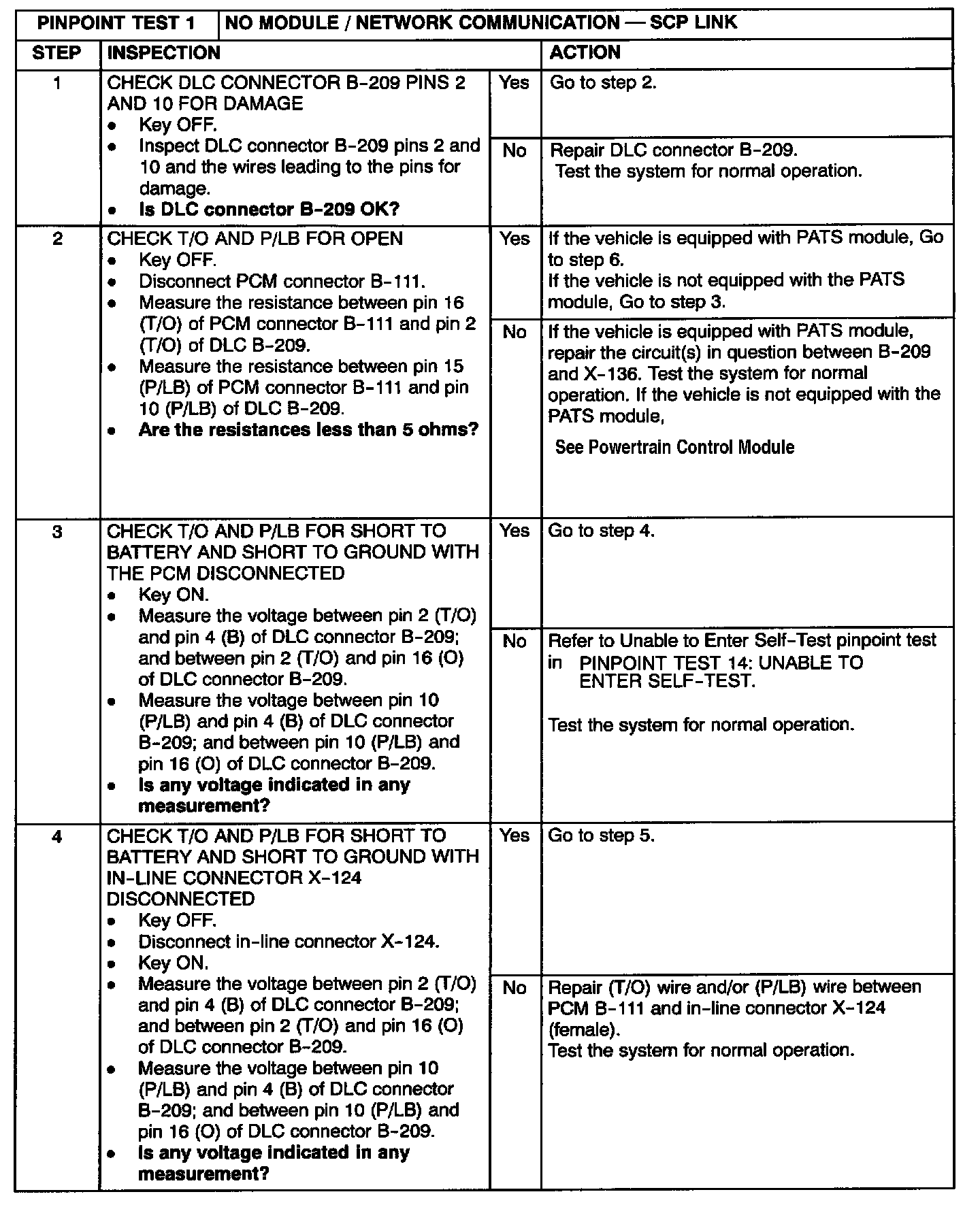

PART 1 OF 3:

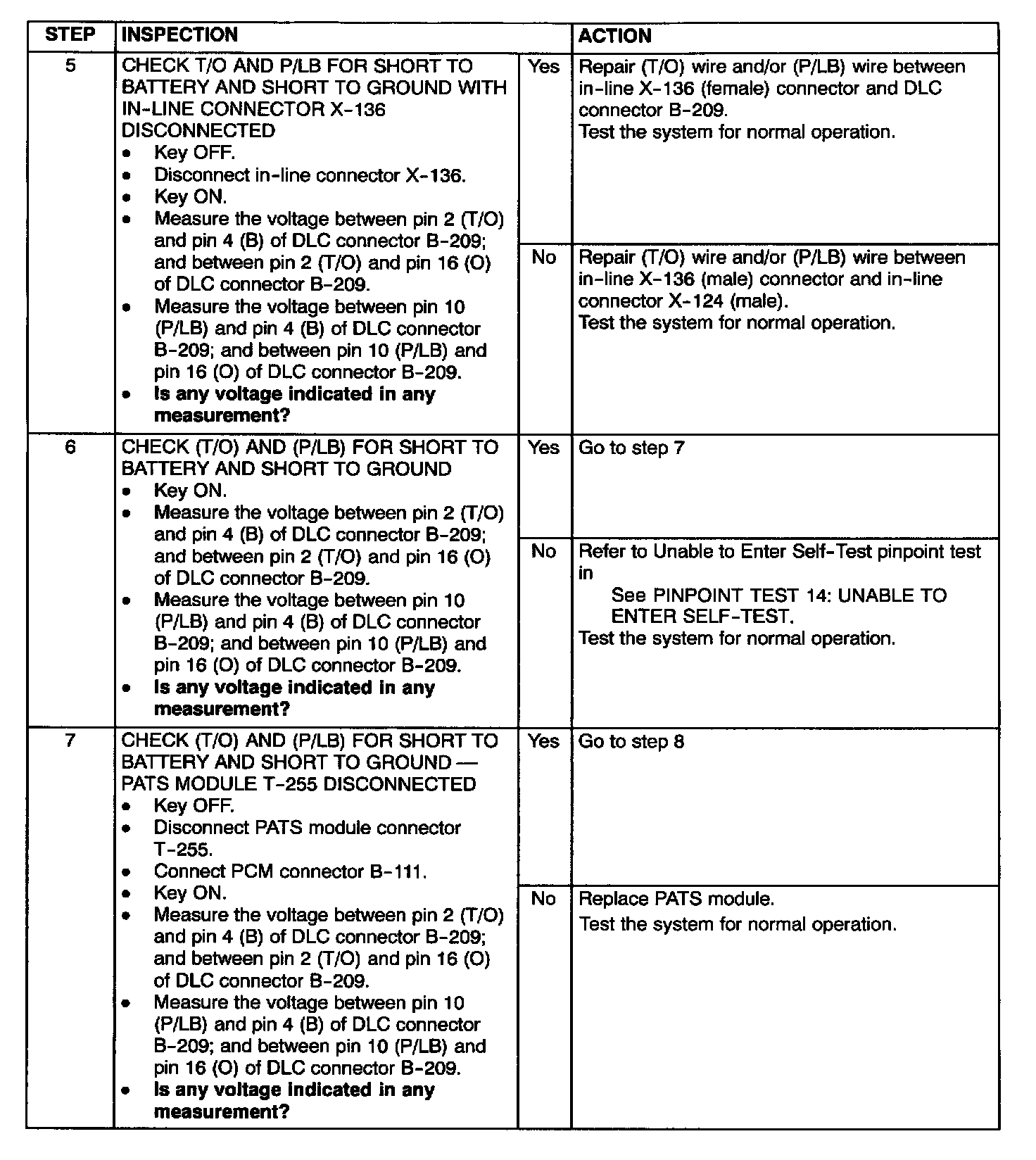

PART 2 OF 3:

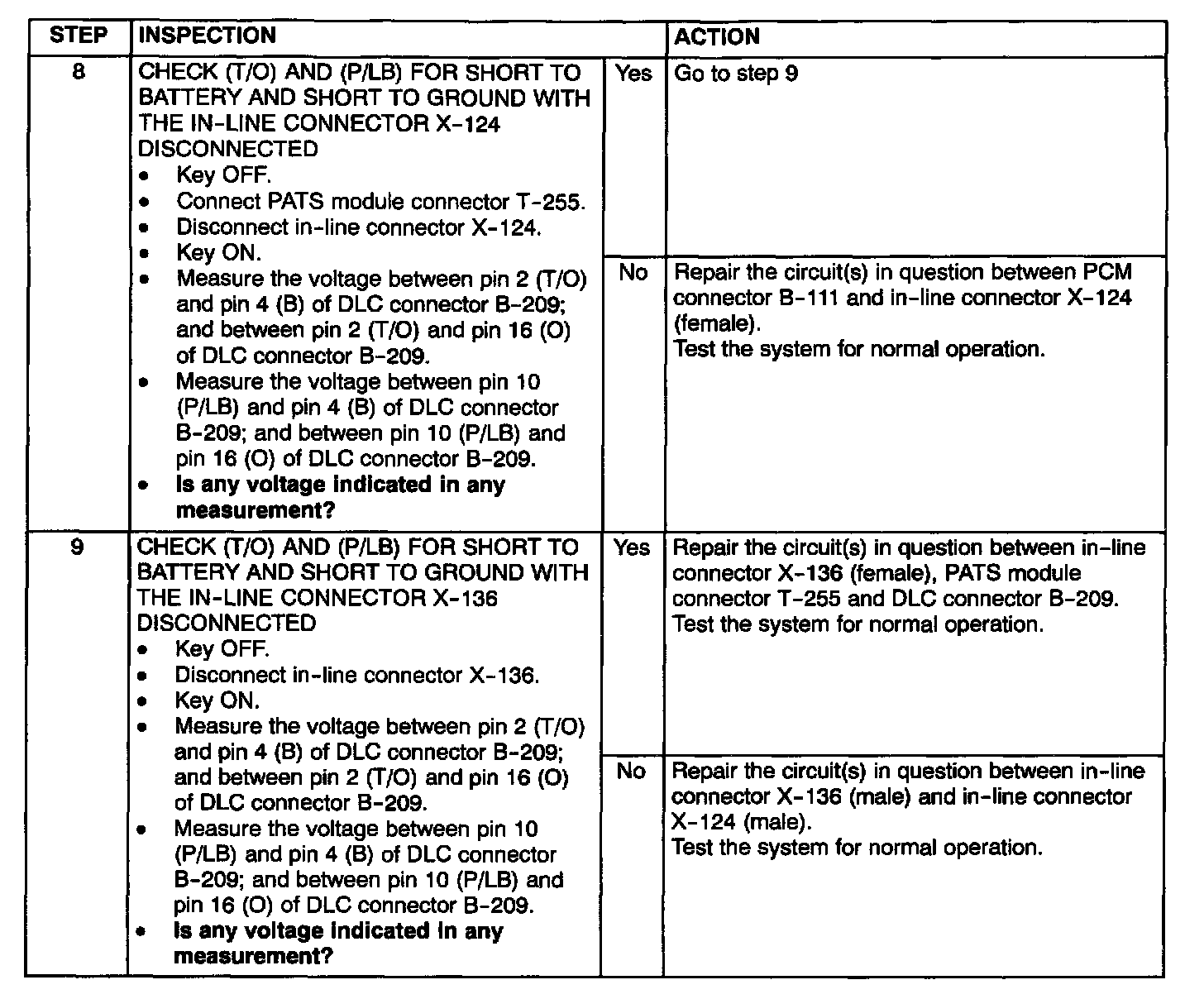

PART 3 OF 3:
