Connector End Views

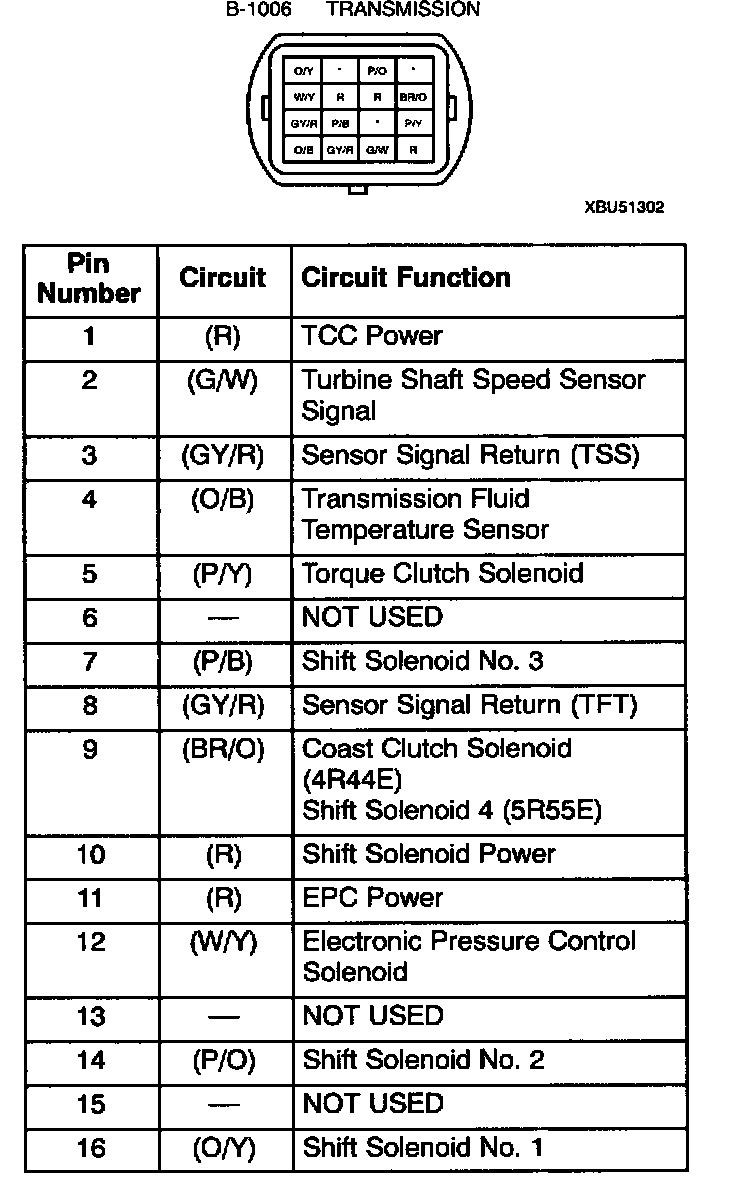

Transmission Vehicle Harness Connector

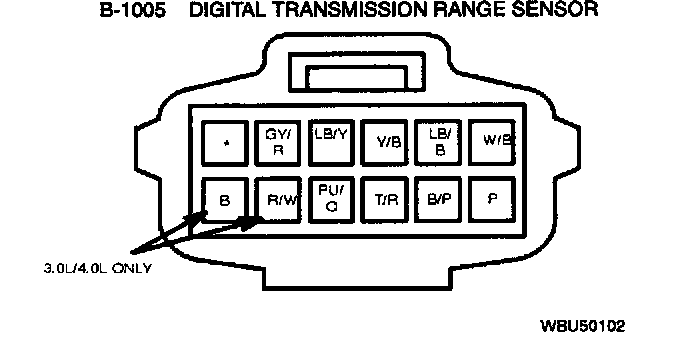

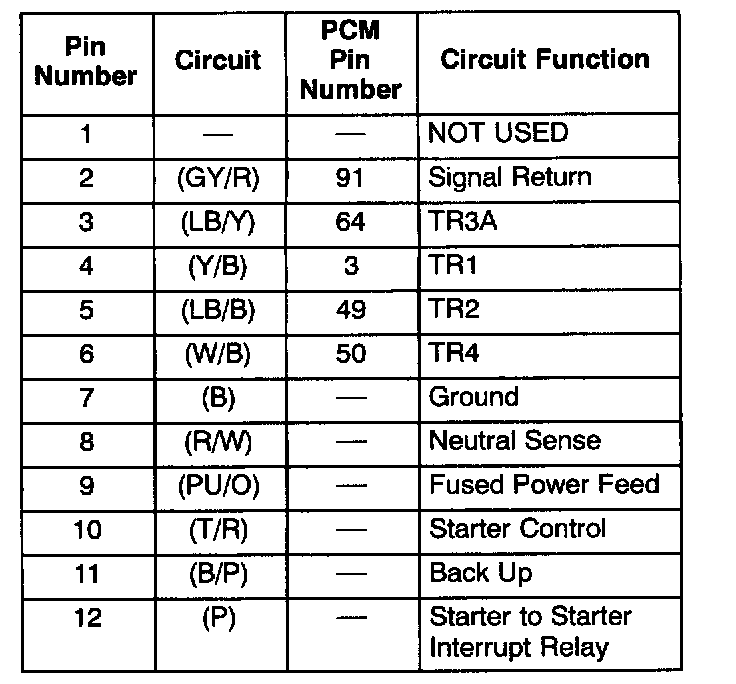

Digital Transmission Range (TR) Sensor Vehicle Harness Connector

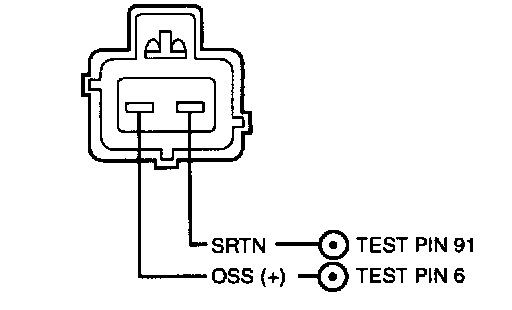

Output Shaft Speed (OSS) Sensor Connector

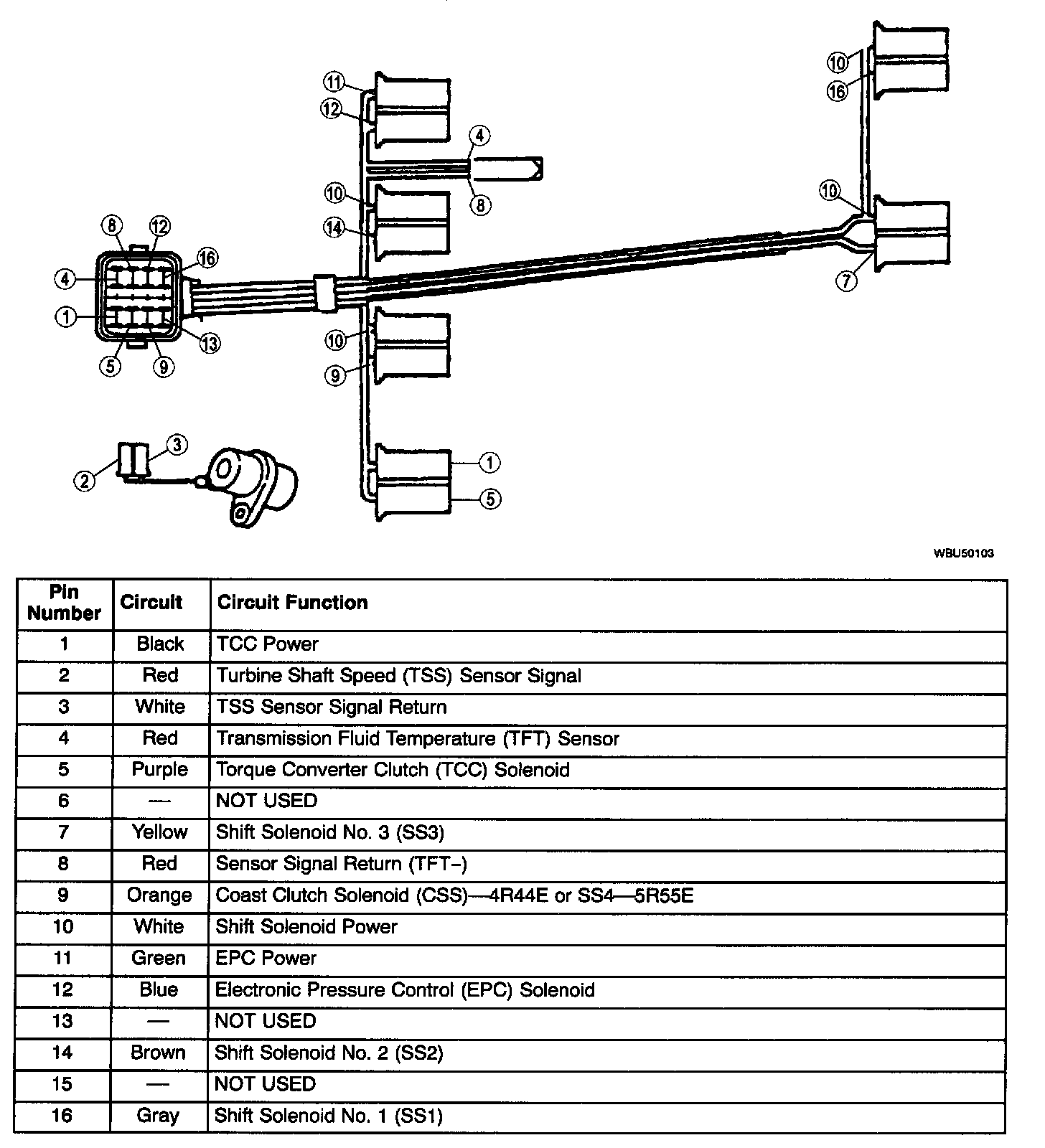

Control Valve Body Wire Harness Diagram
