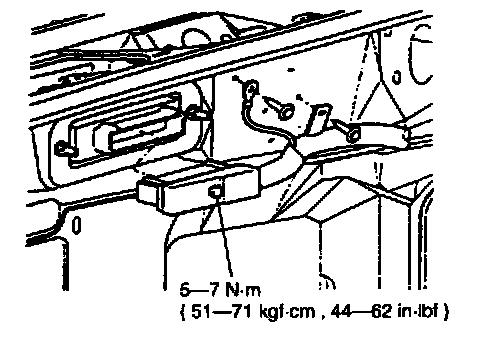

Removal/Installation

1. Disconnect the negative battery cable.




2. Disconnect the PCM connector.
3. Remove the two nuts and PCM cover.
4. Remove the ground wire.
5. Remove PCM.
6. Install in reverse order of removal.
