Pinpoint Test 2

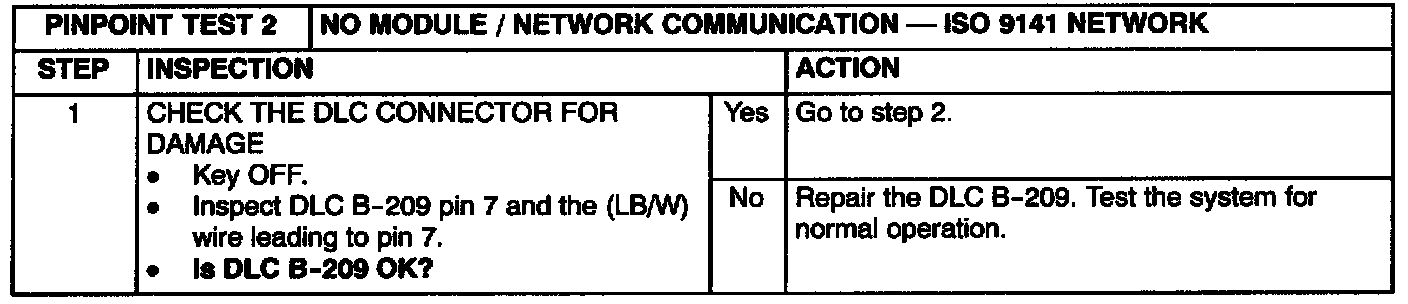

Pinpoint Test 2 (1 Of 4):

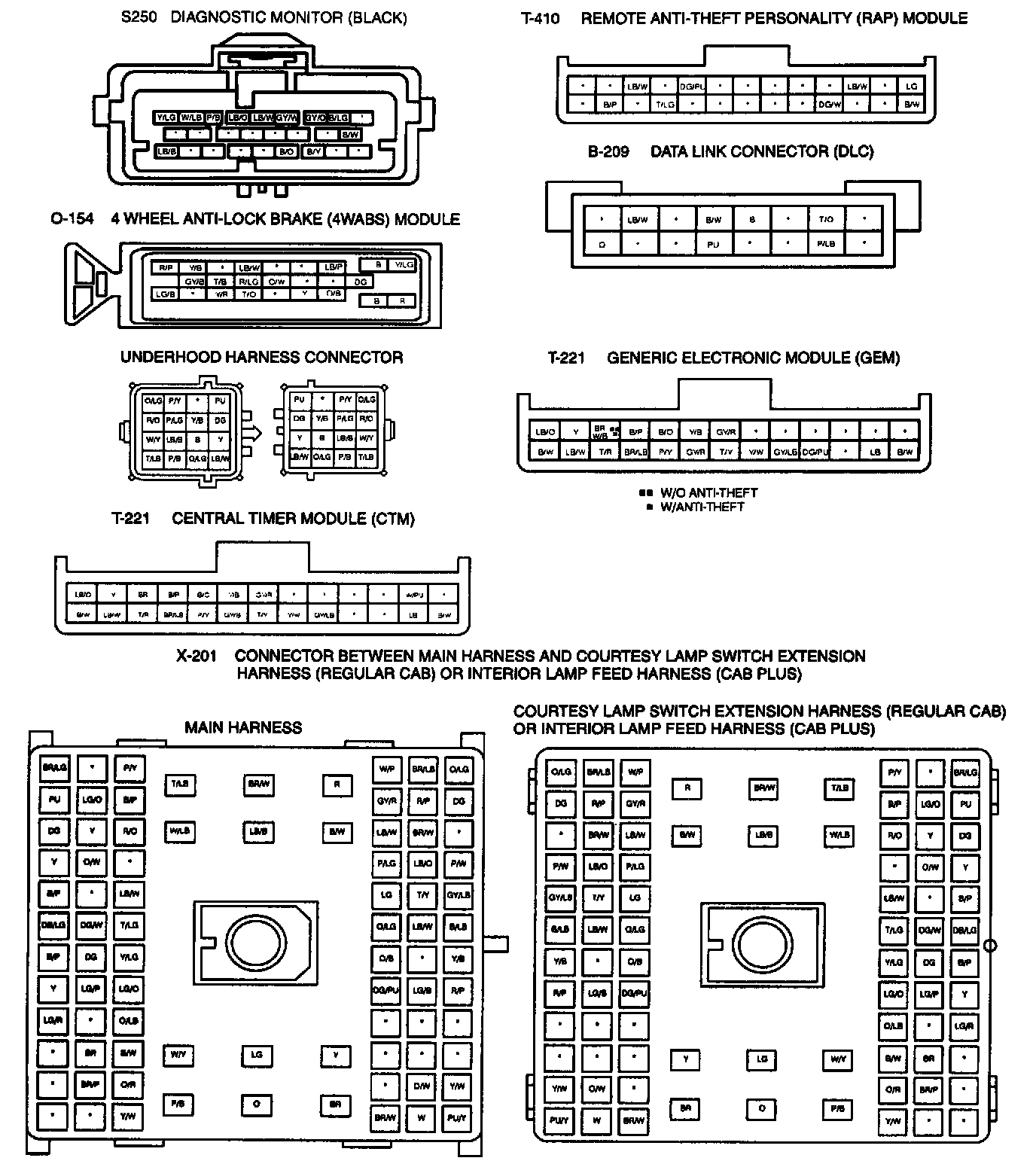

Pinpoint Test 2 (2 Of 4):

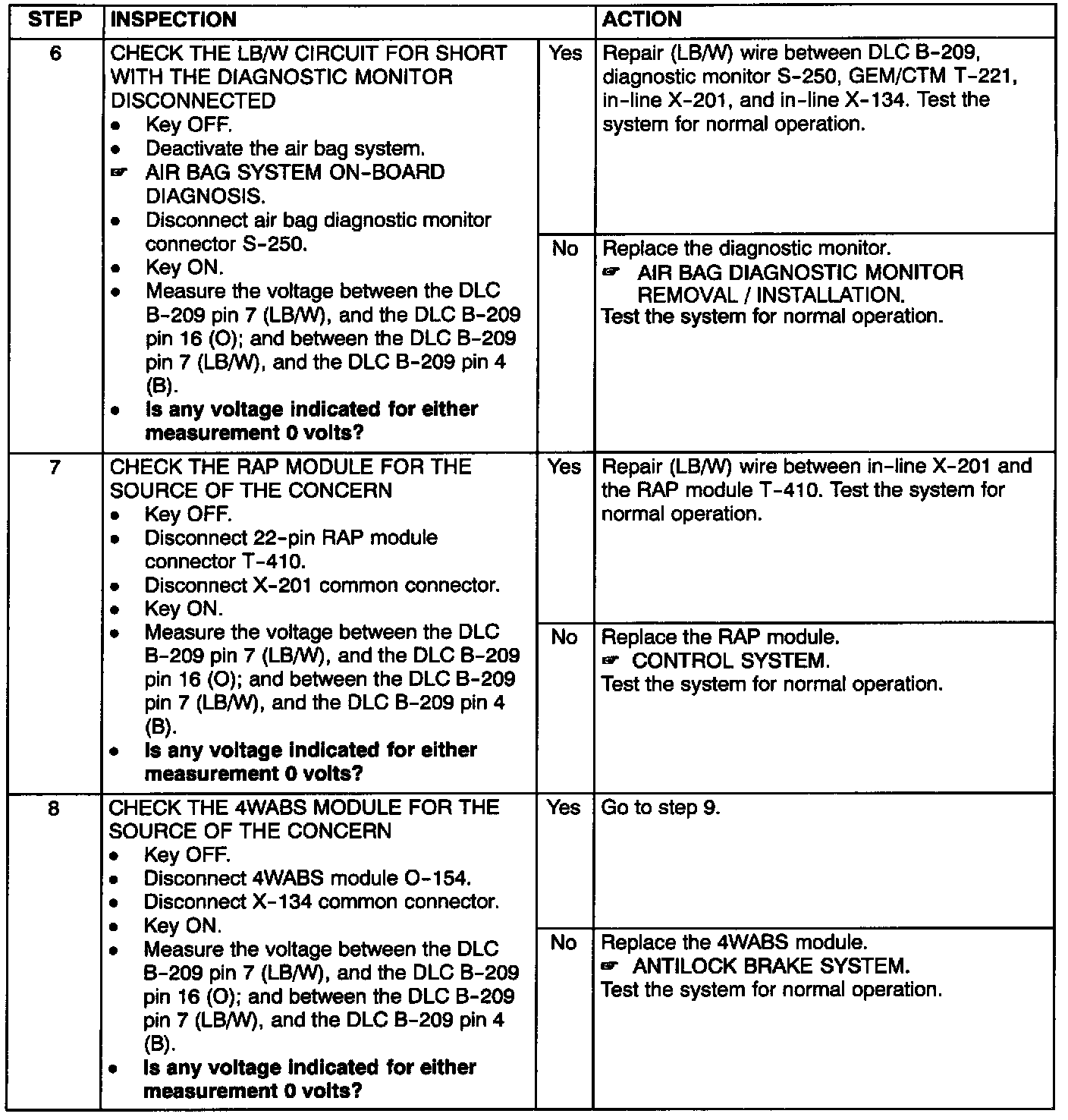

Pinpoint Test 2 (3 Of 4):

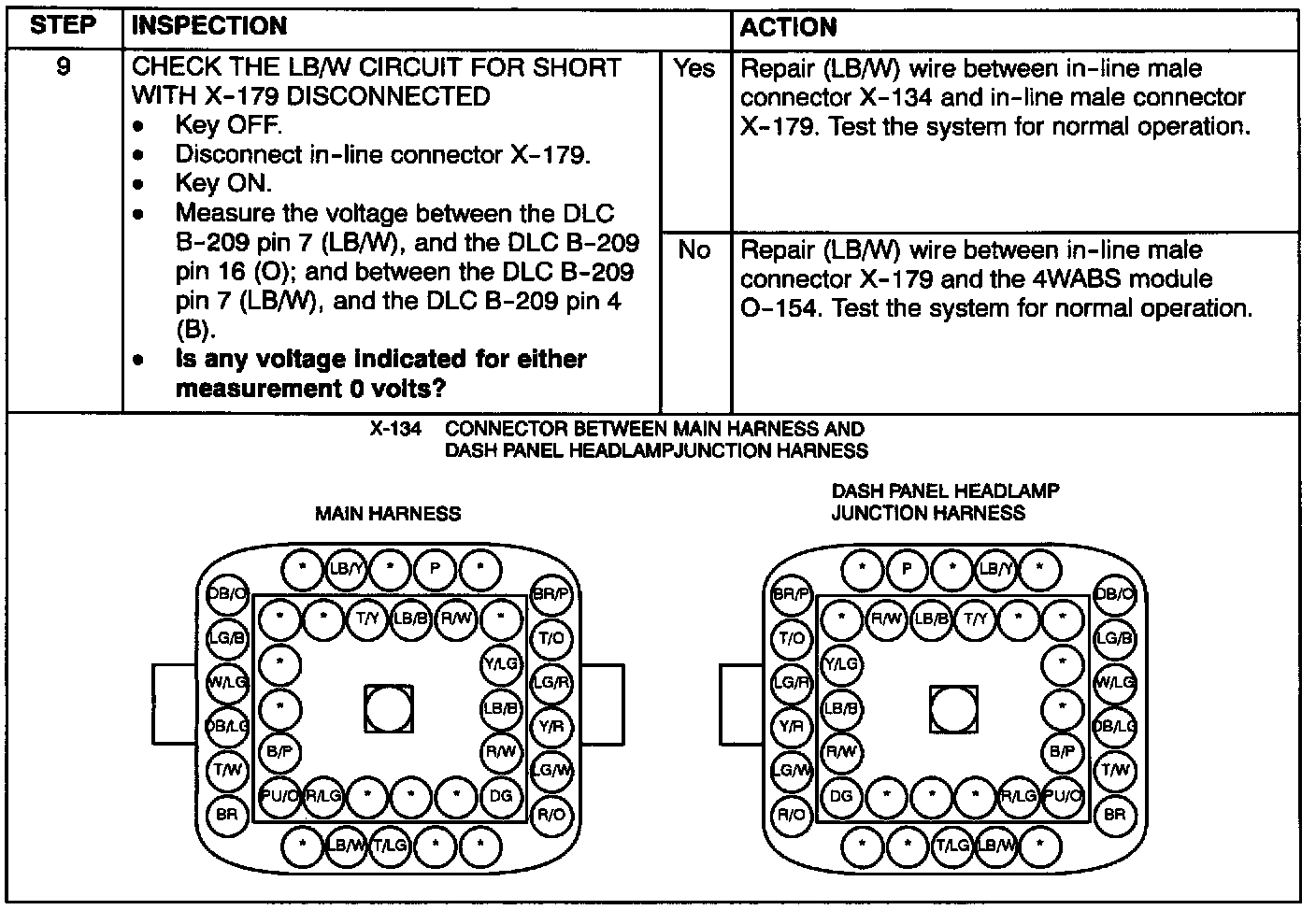

Pinpoint Test 2 (4 Of 4):
