Manual Transmission/Transaxle

General Specifications

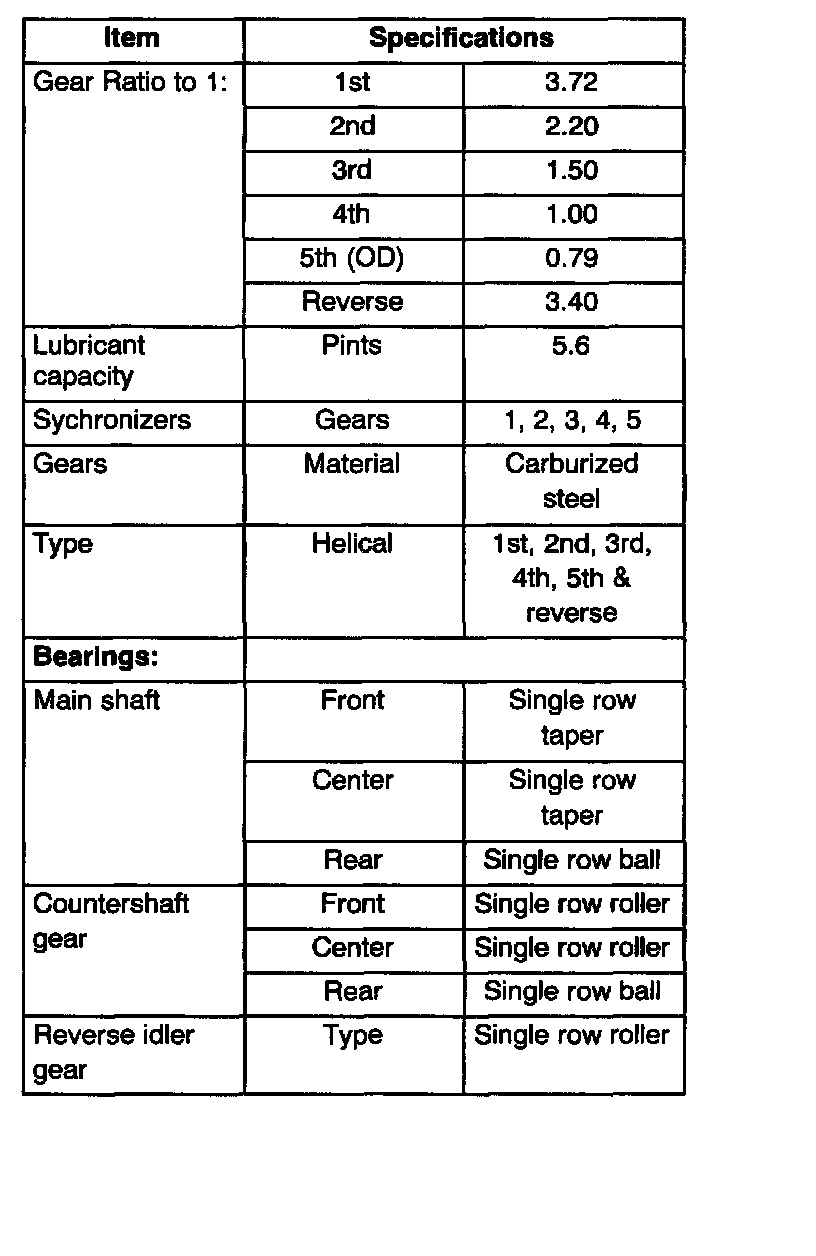

Manual Transmission Specifications - 5 Speed Overdrive (2.5L & 3.0L)

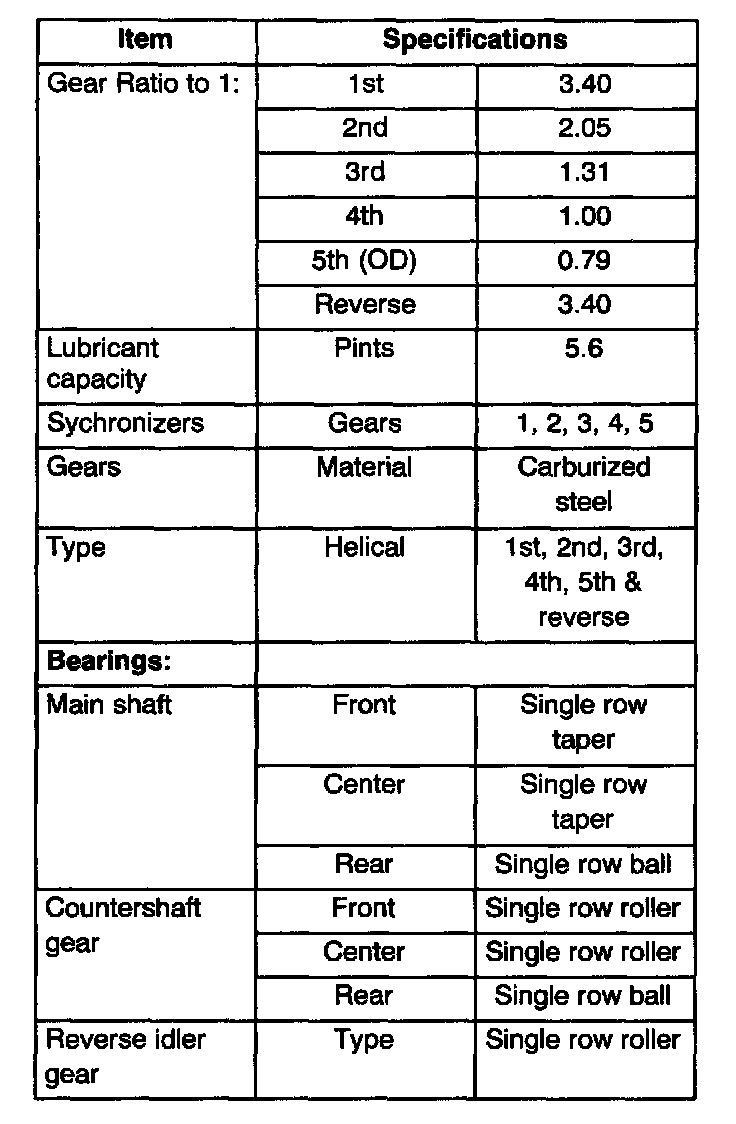

Manual Transmission Specifications - 5 Speed Overdrive (4.0L)

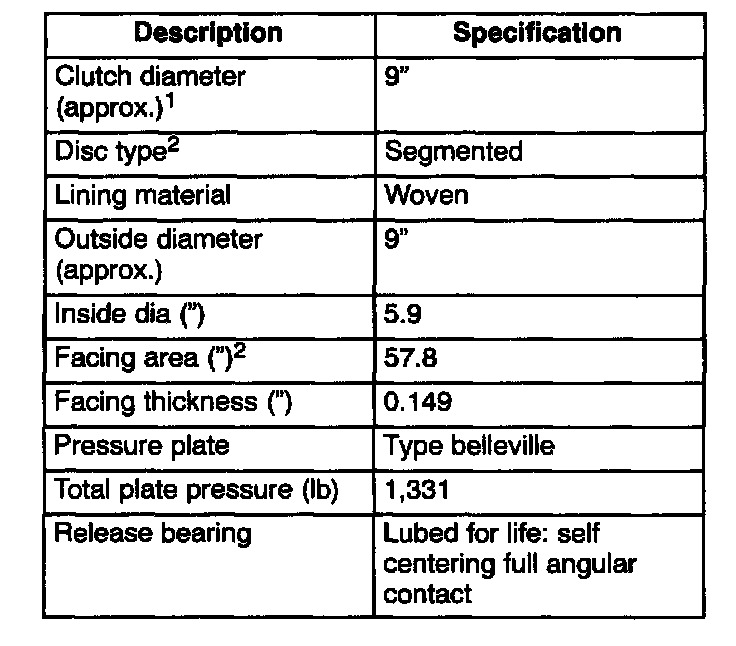

Clutch Specifications (2.5L)
Hydraulic clutch control (1)
With spring vibration damper (2)

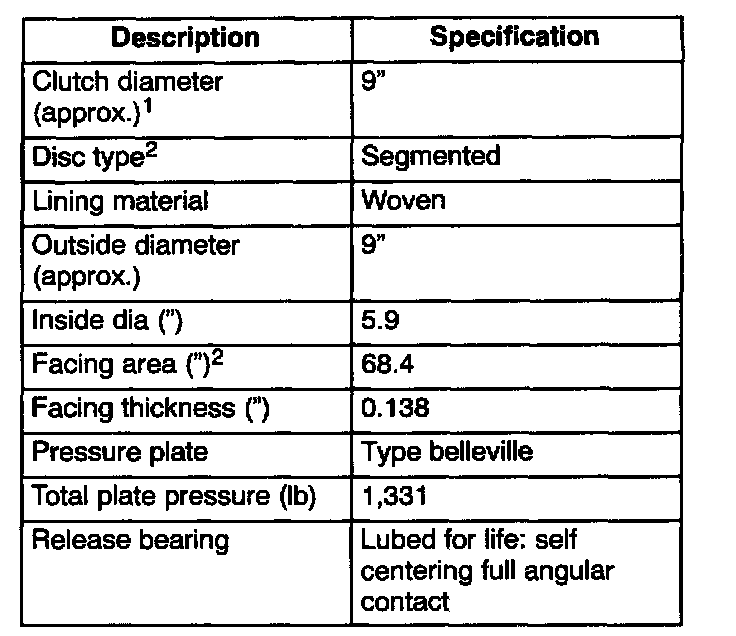

Clutch Specifications (3.0L)
Hydraulic clutch control (1)
With spring vibration damper (2)

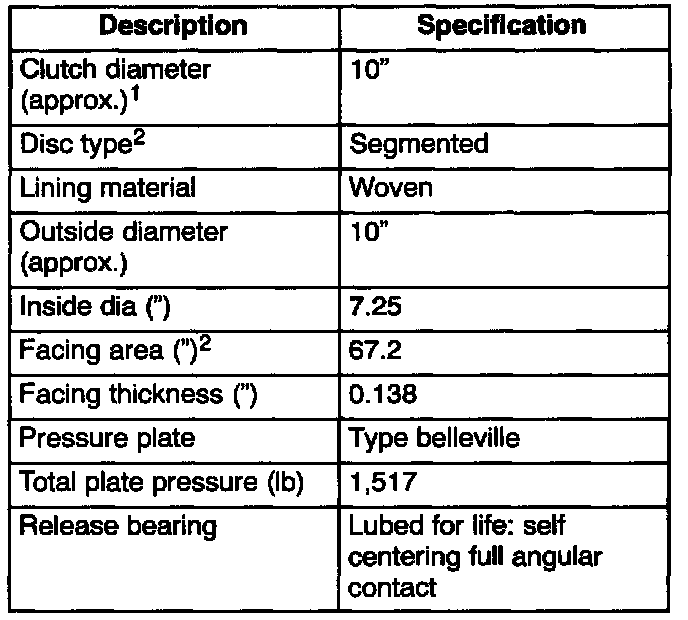

Clutch Specifications (4.0L)
Hydraulic clutch control (1)
With spring vibration damper (2)
