Ignition System: Testing and Inspection

PART 1 OF 4:

PART 2 OF 4:

PART 3 OF 4:

PART 4 OF 4:

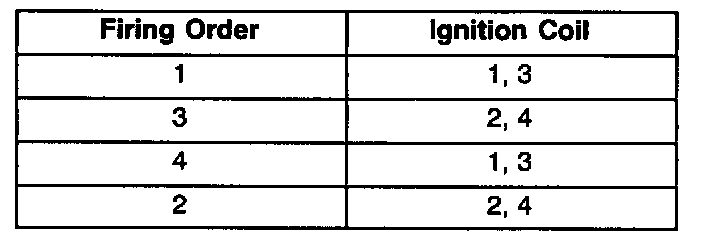

FIRING ORDER

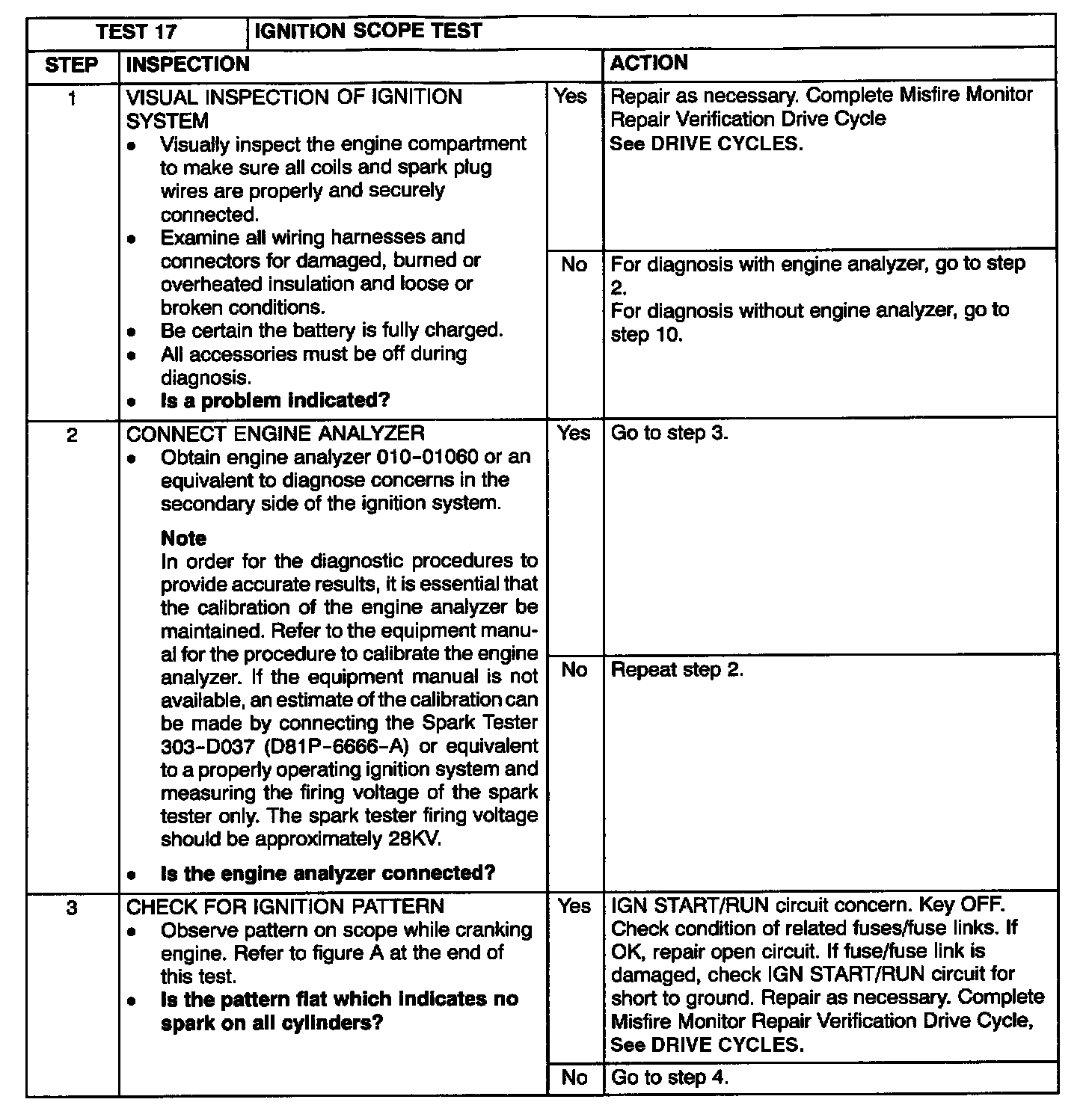

TEST 17: IGNITION SCOPE TEST








CAUTION: Fouled plugs or a damaged Ignition may cause high catalyst temperatures. Check components next to the catalyst and muffler for heat damage
