Home >> Mazda >> 1999 >> B3000 SE Cab Plus 2WD V6-3.0L OHV >> Repair and Diagnosis >> Diagrams >> Connector Views >> Powertrain Management >> Computers and Control Systems >> Engine Control Module

Engine Control Module

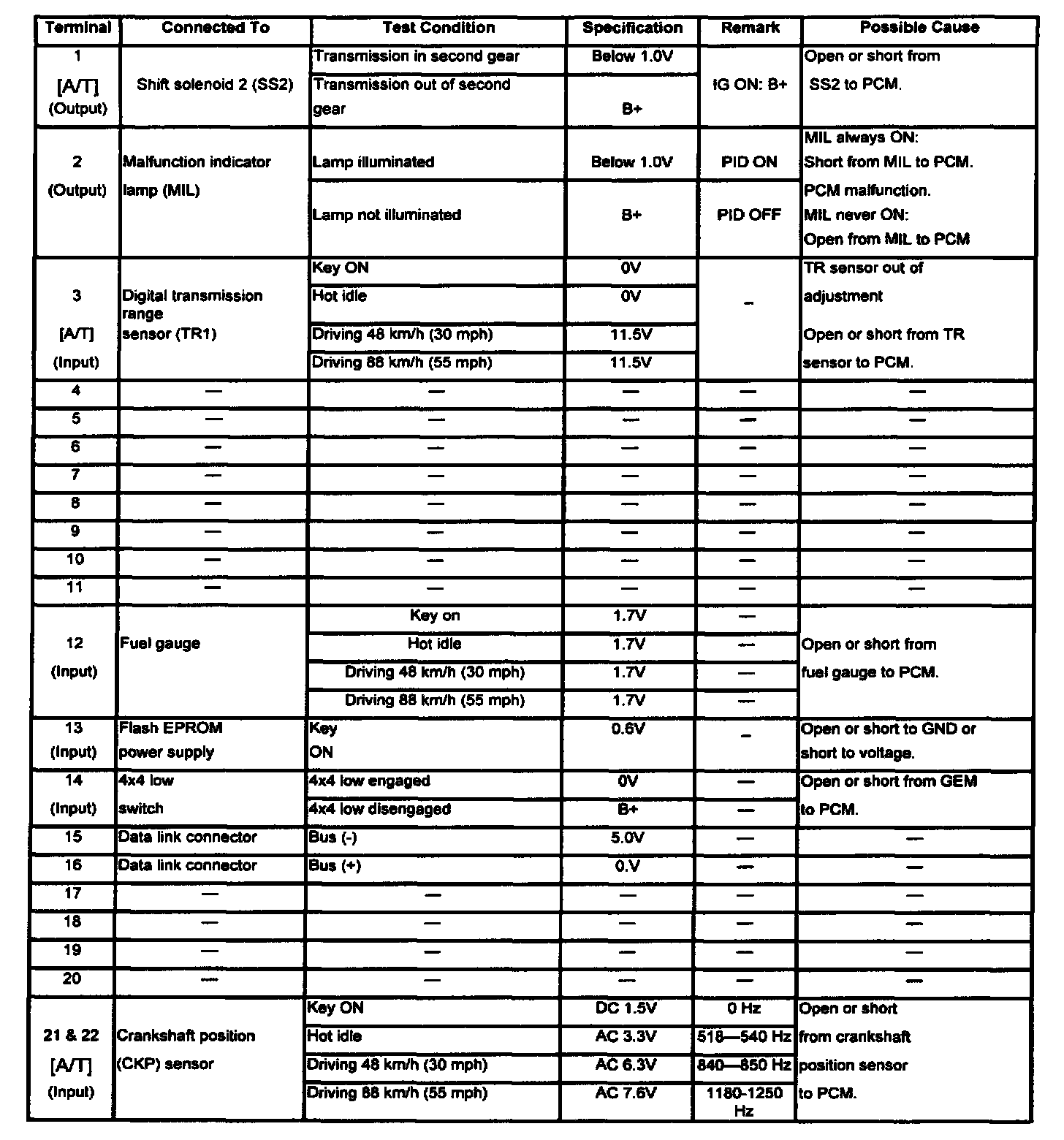

TERMINALS 1 THRU 22:

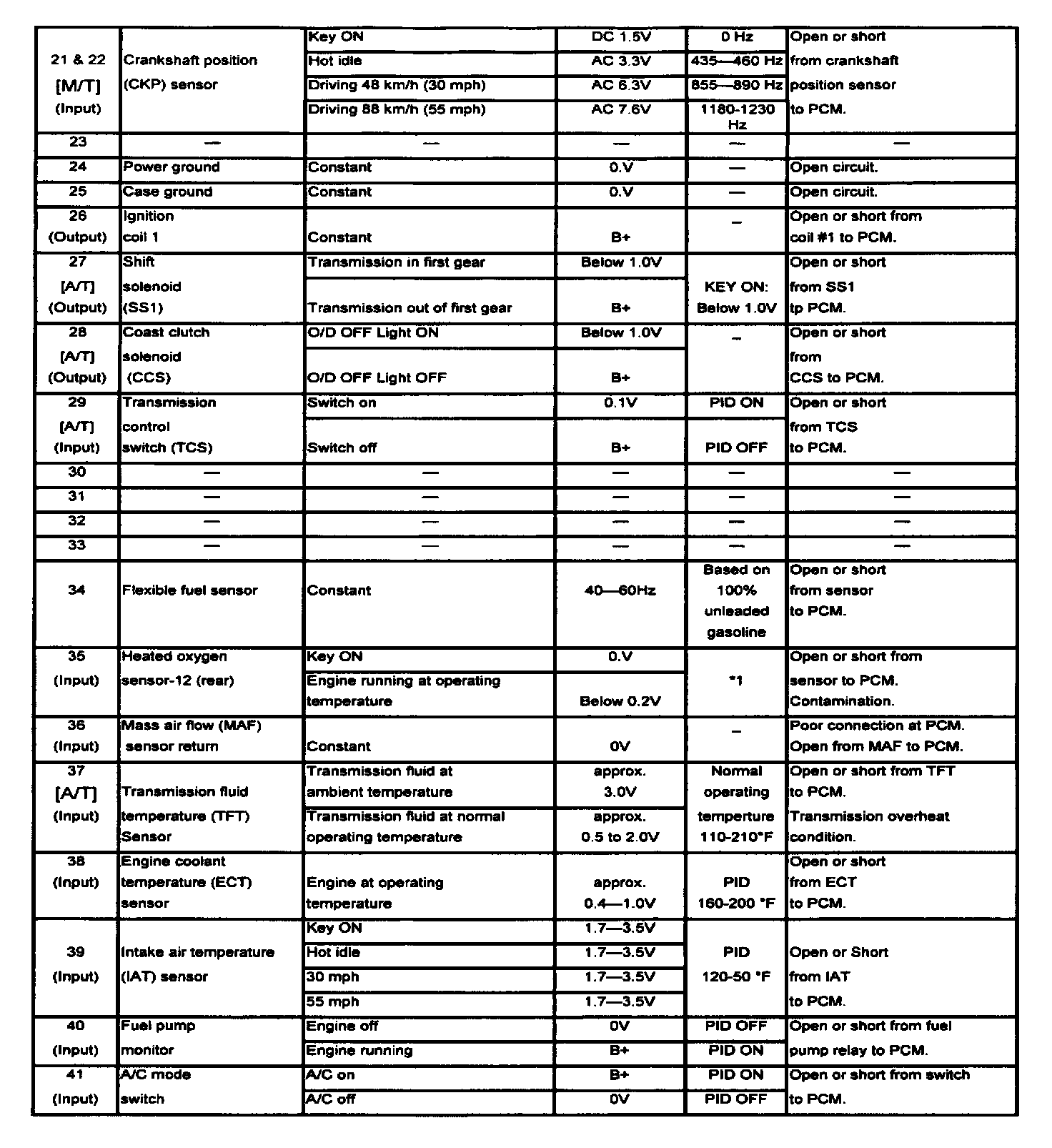

TERMINALS 21 THRU 41:

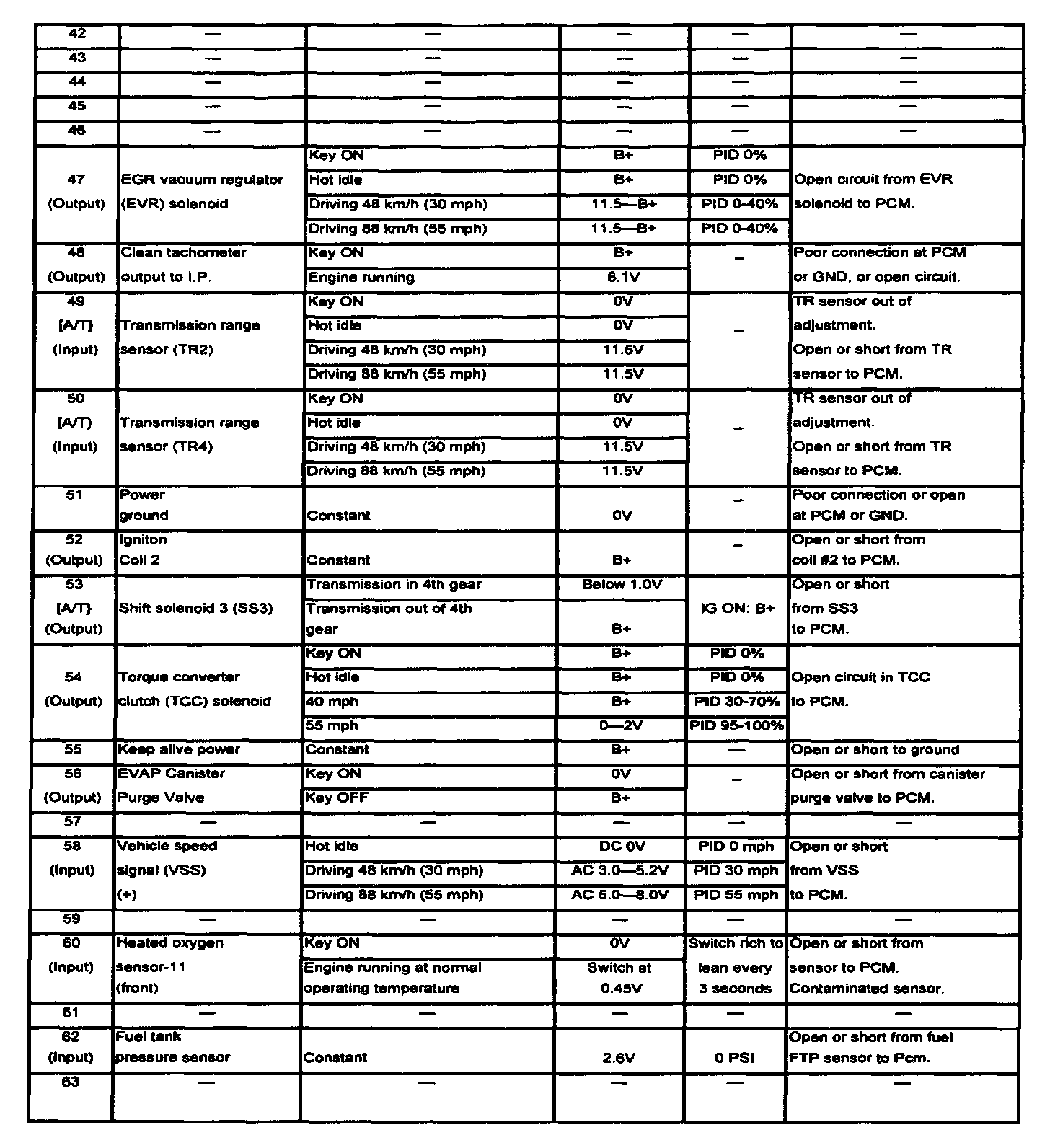

TERMINALS 42 THRU 63:






TERMINALS 64 THRU 80:

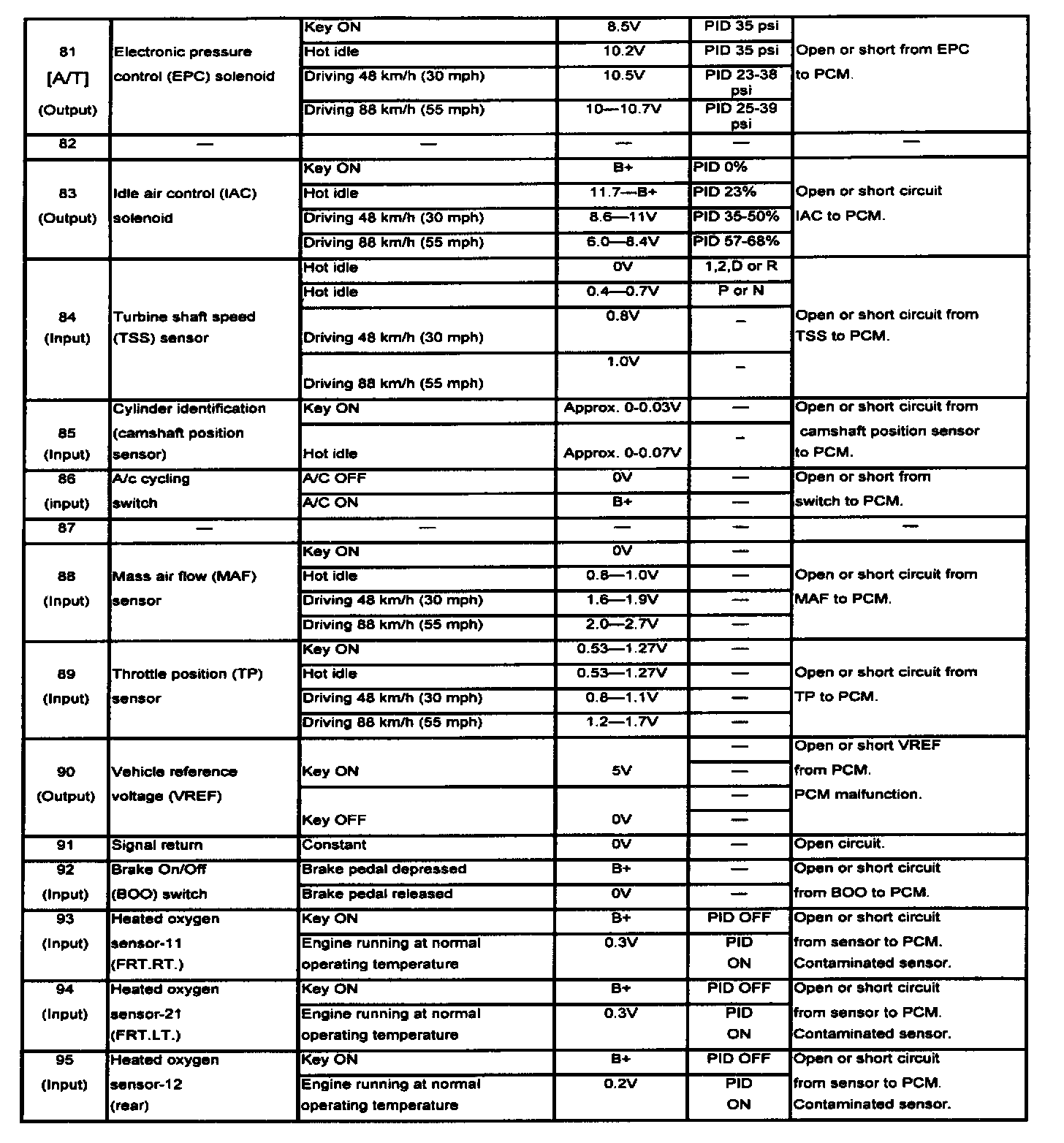

TERMINALS 81 THRU 95:

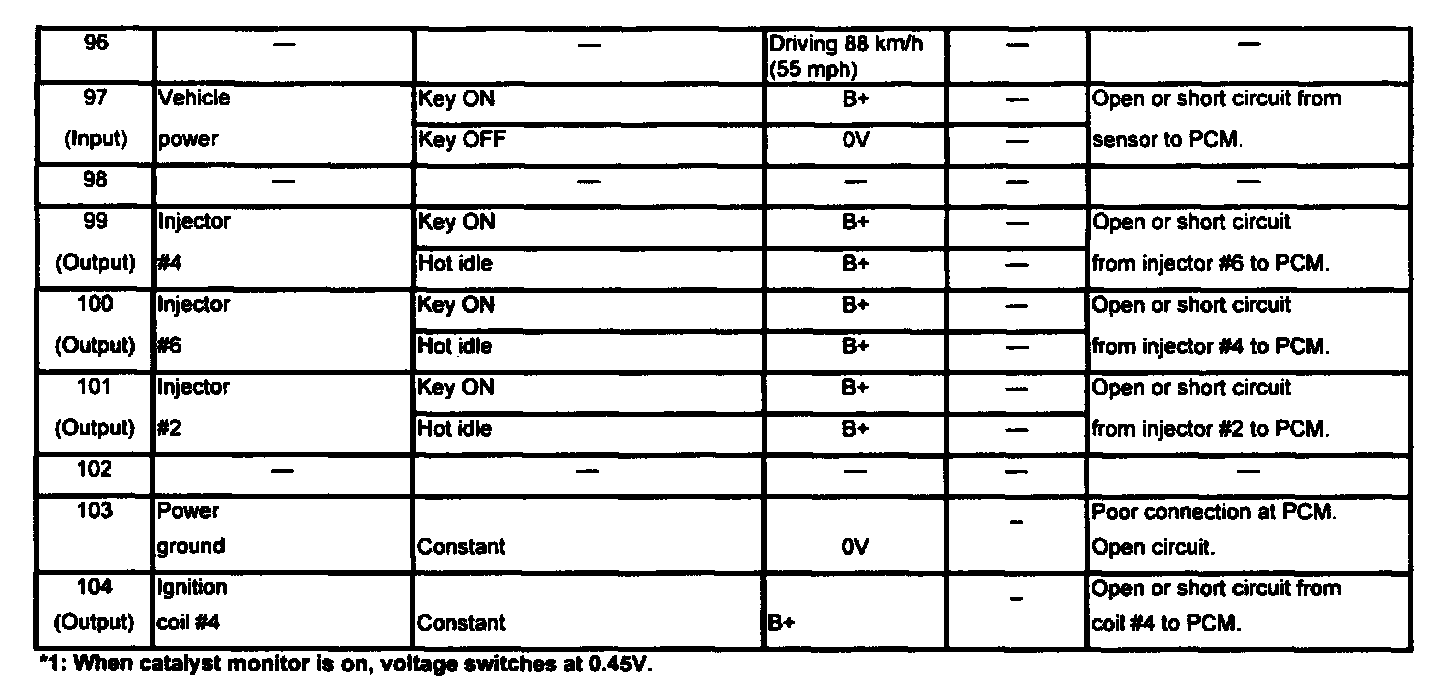

TERMINALS 96 THRU 104:
