Emission Control Systems: Locations

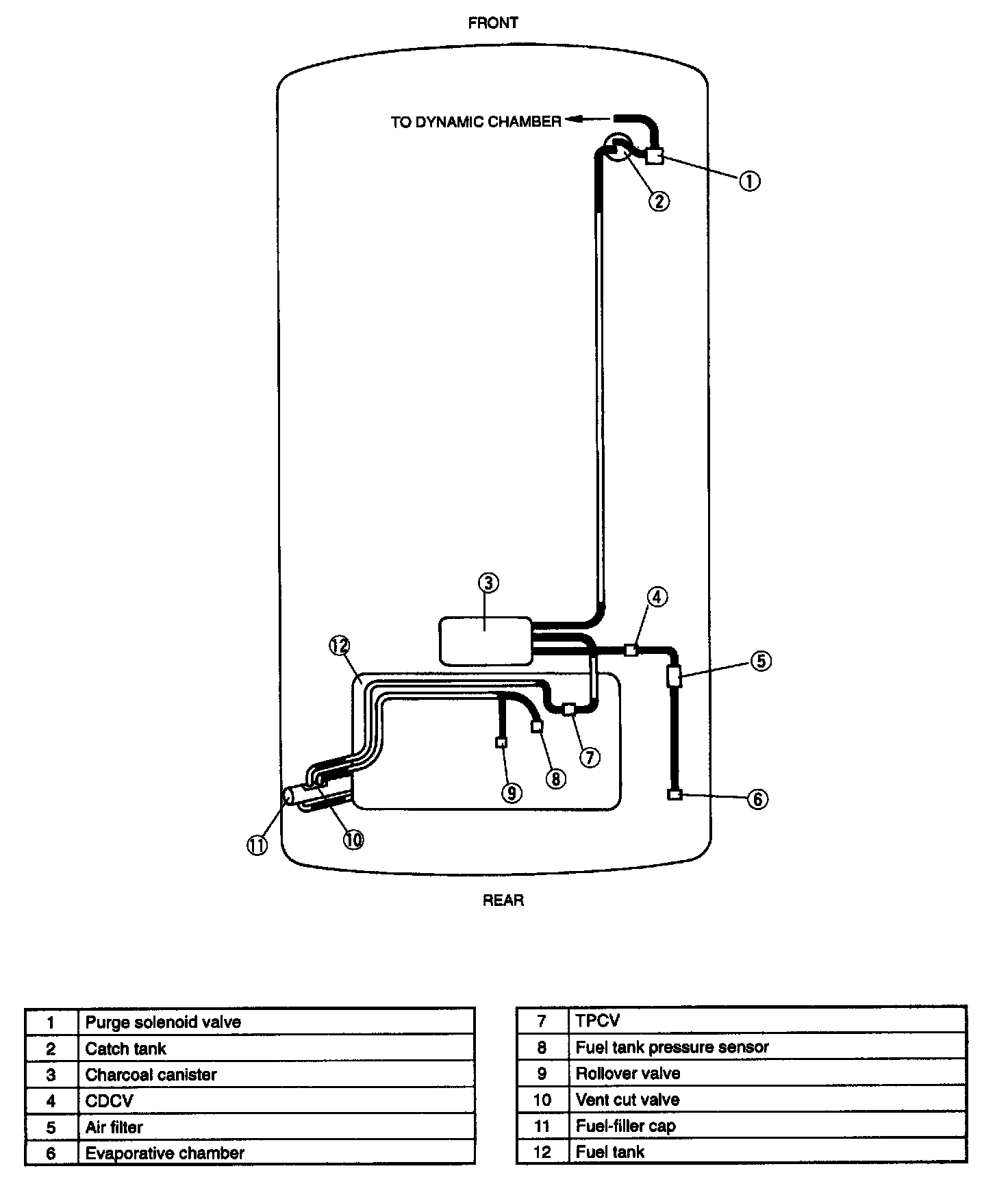

EVAPORATIVE EMISSION CONTROL SYSTEM

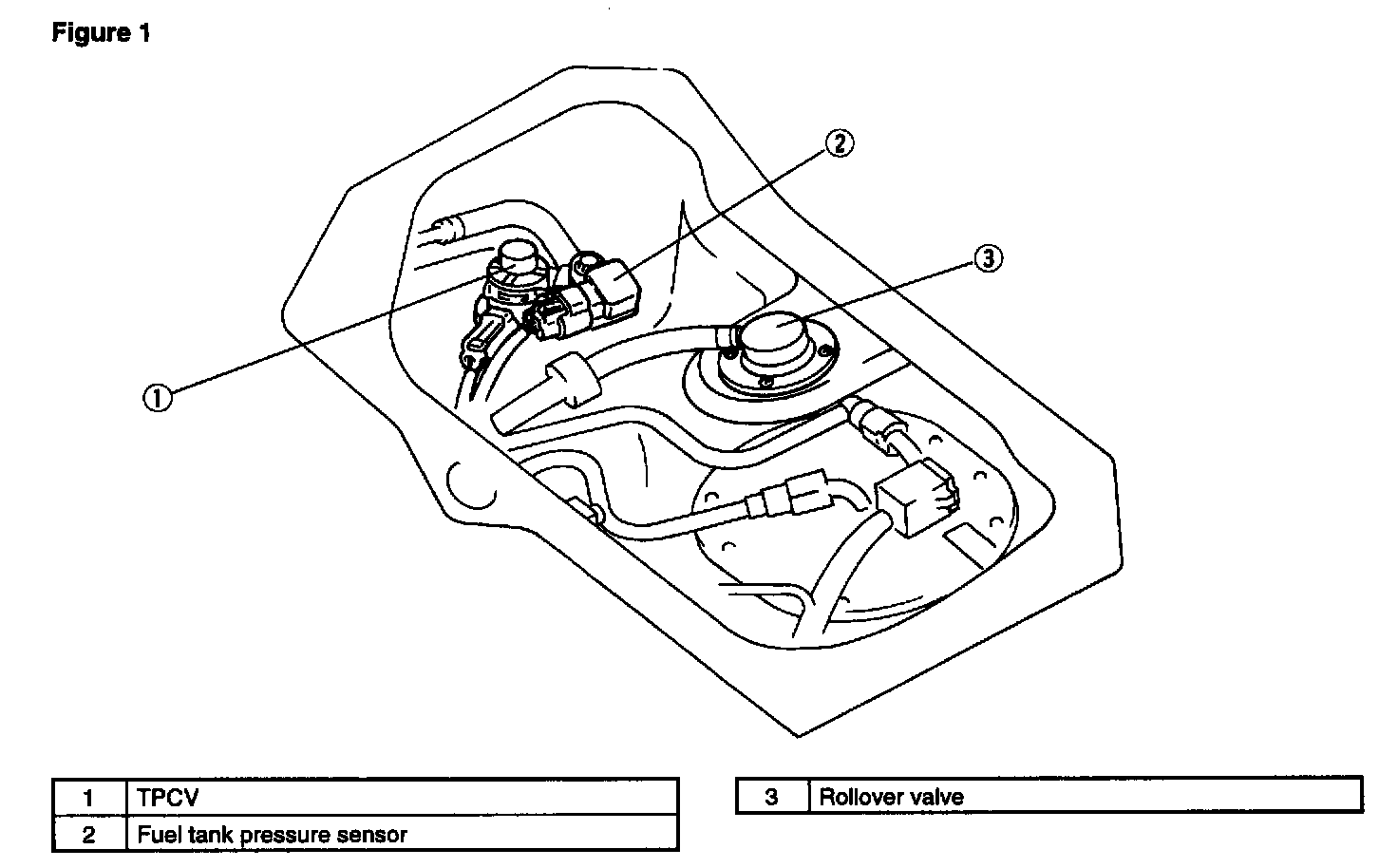

Figure 1

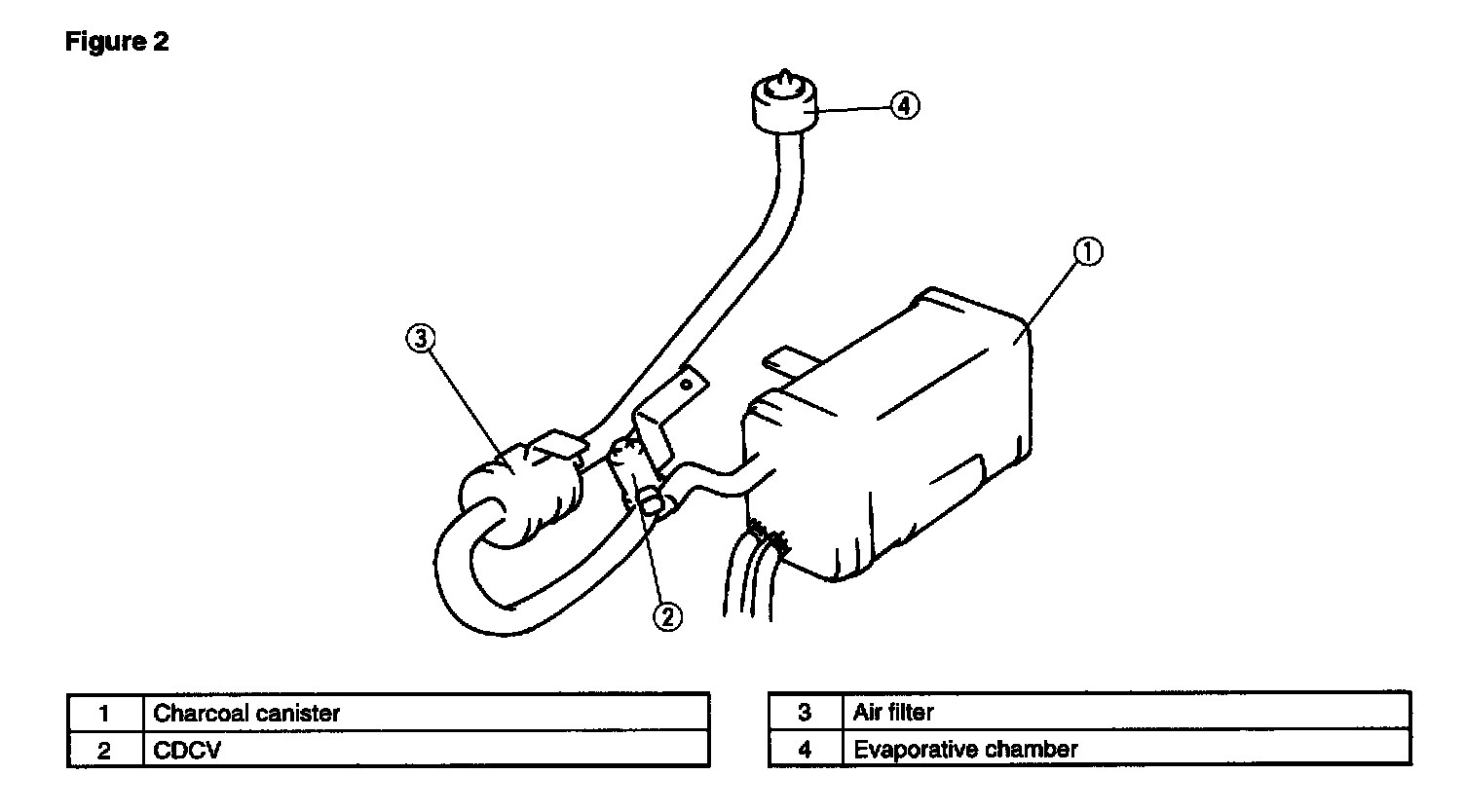

Figure 2

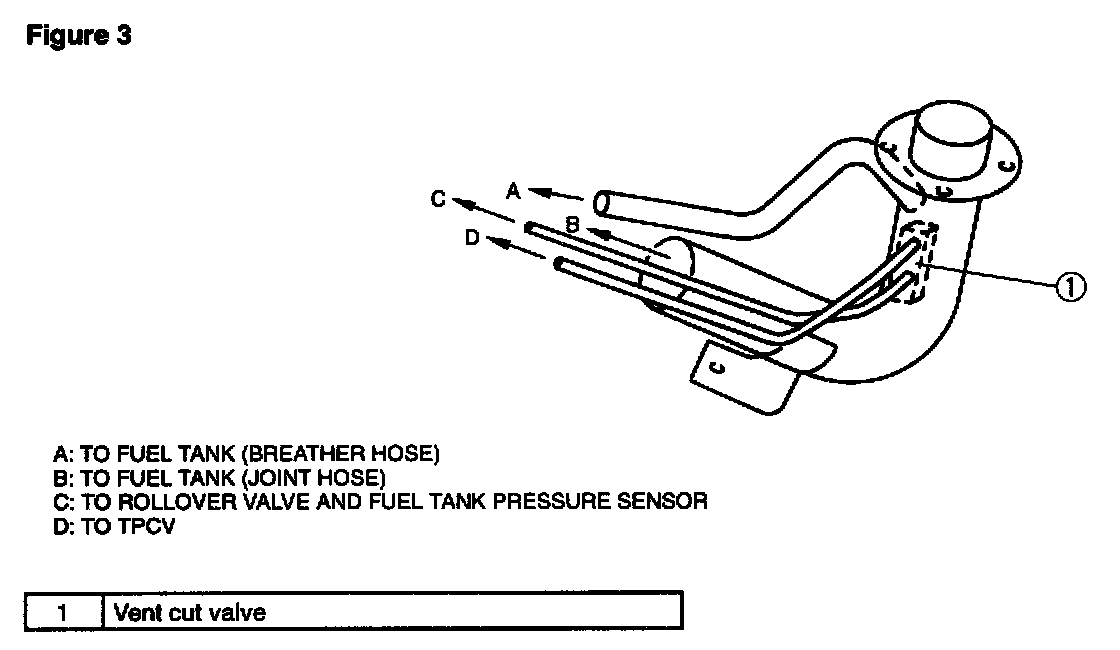

Figure 3

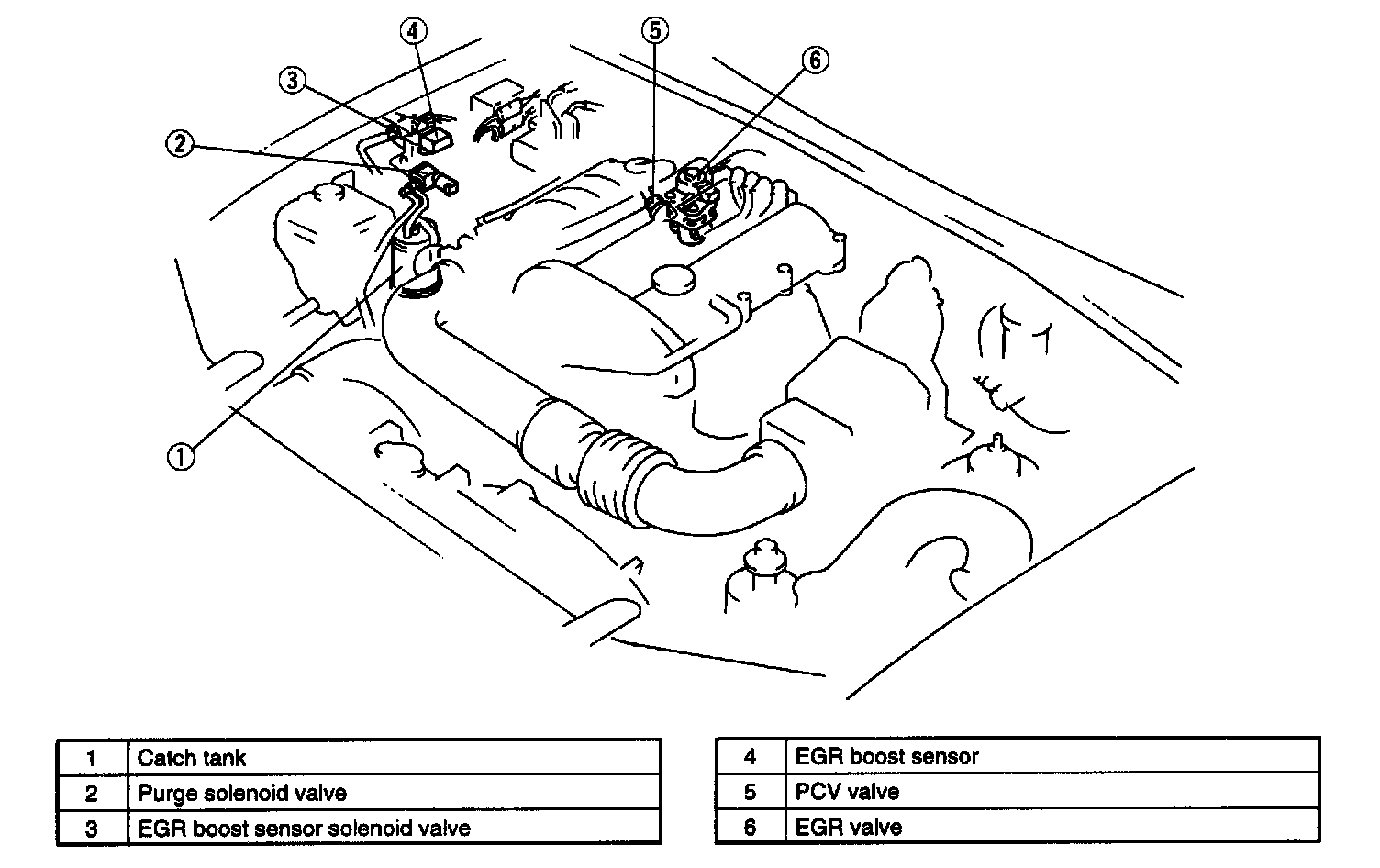

EMISSION SYSTEM (ENGINE COMPARTMENT SIDE)
