With 2.5L Engine

CRUISE ACTUATOR INSPECTION

1. Disconnect the cruise actuator connector.

KL (2.5L):

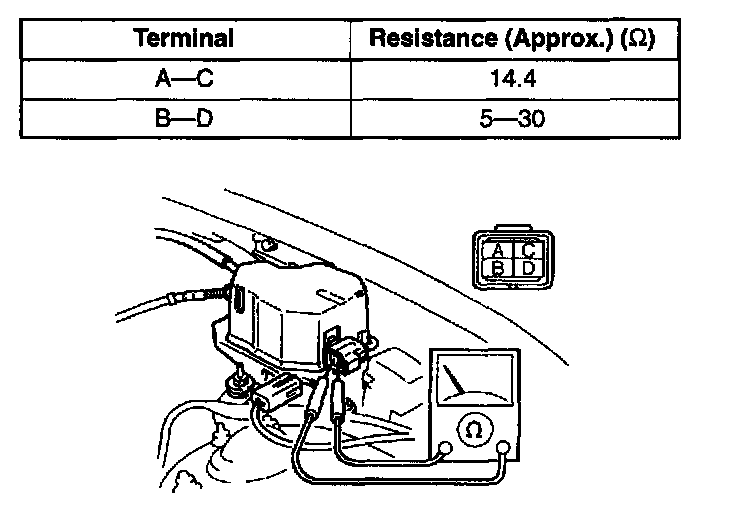

2. Measure the resistance between the actuator terminals.

KL (2.5L):

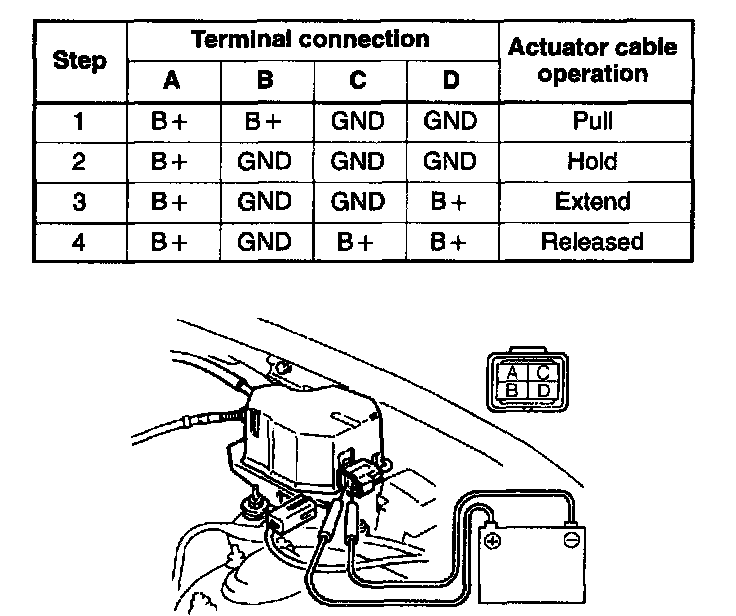

3. Connect battery positive voltage and verify the operation of the actuator cable as indicated below.
4. If not as specified, replace the cruise actuator.
