Locations
>>
Component Locations
>>

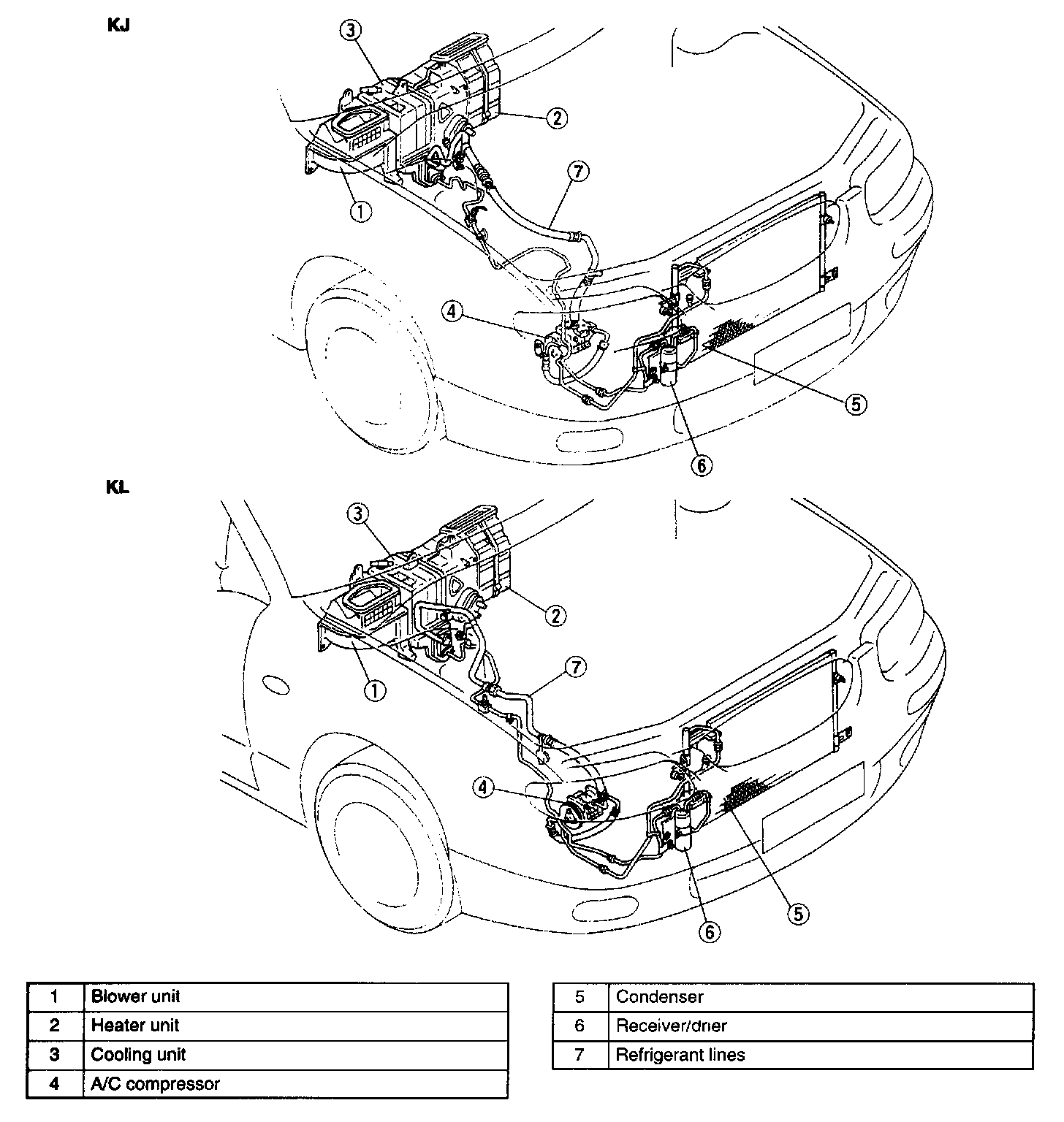

Basic Structural View
Basic Structural View
KL = 2.5L AND KJ = 2.3L:
