Key Interlock Inspection

Key Interlock Inspection
1. Turn the ignition switch to ON position (engine is off.)
2. Shift the selector lever to R position.
3. Verify that the ignition key cannot be turned to LOCK position.

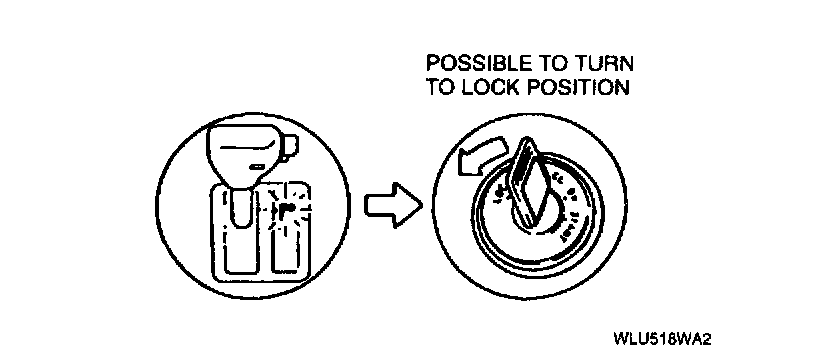

4. Shift the selector lever to P position.
5. Verify that the ignition key can be turned to LOCK position.
6. If not as specified, inspect and repair as necessary.
