Throttle Position Sensor: Service and Repair

Removal and Installation
1. Disconnect the TP sensor connector.

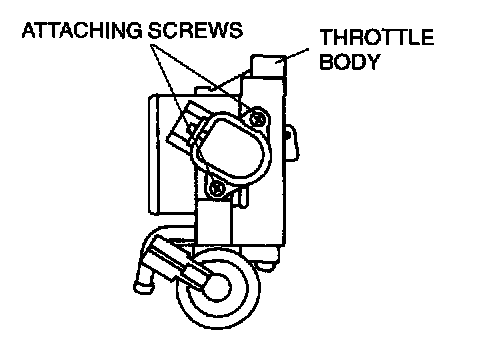

2. Remove the TP sensor screws.




3. Remove the TP sensor from the throttle body.
4. Verify that the throttle valve is fully closed.
5. Install the TP sensor to the throttle body.




6. Tighten the TP sensor screws.

Tightening torque
1.6 - 2.3 Nm (16 - 24 kg.cm, 14 - 20 in.lb)

7. Verify that the throttle valve moves smoothly.
8. Reconnect the TP sensor connector.
