Ignition Cable: Testing and Inspection

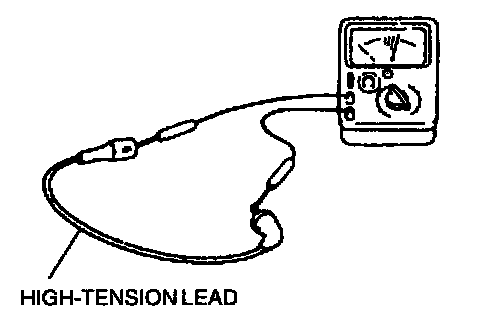

Measure the resistance of the high-tension leads.
-
If not as specified, replace the high-tension lead.

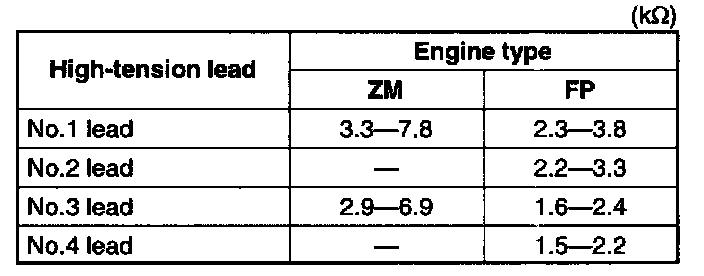

Specification
