Automatic Transaxle Control Component Location Index

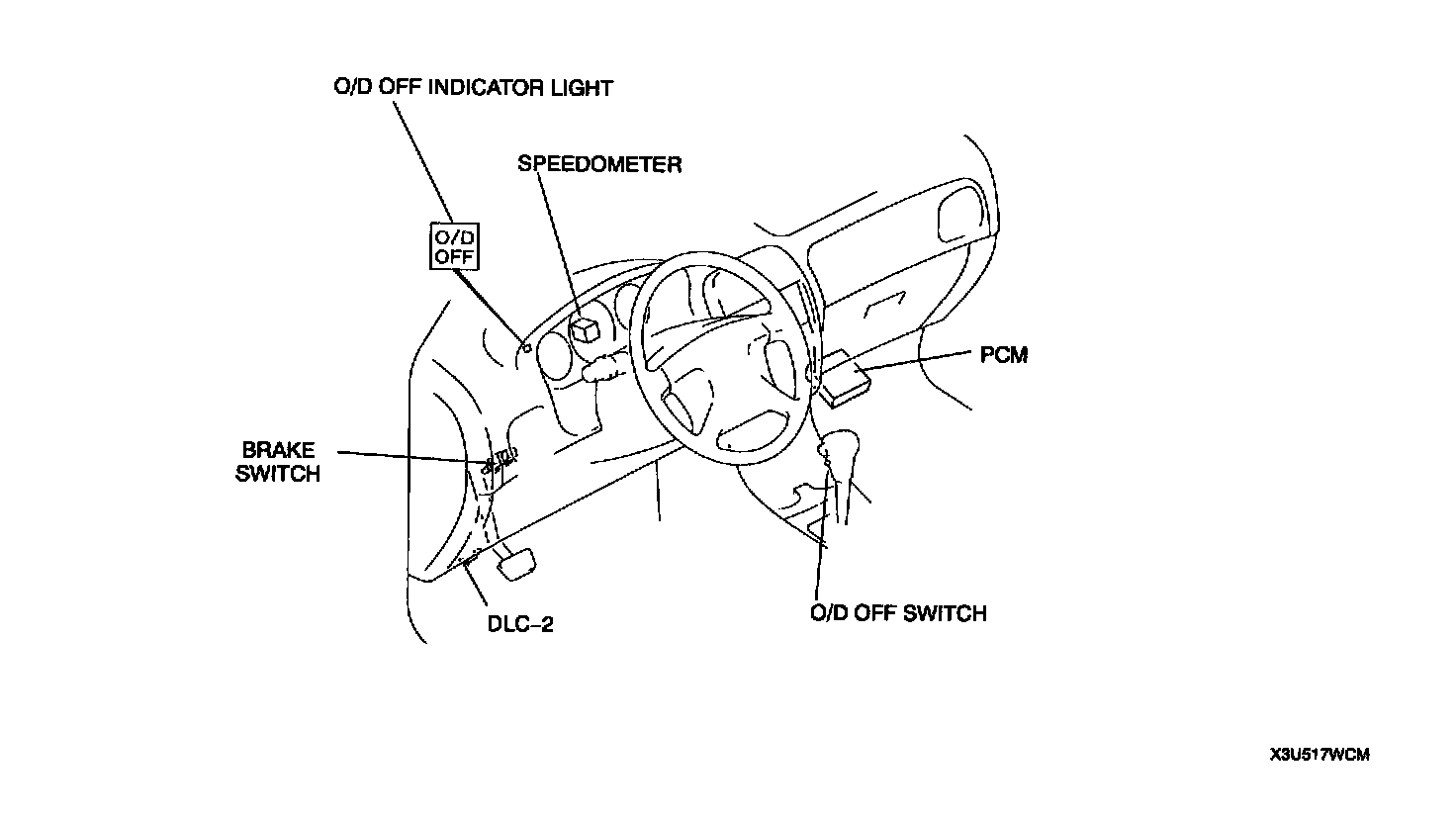

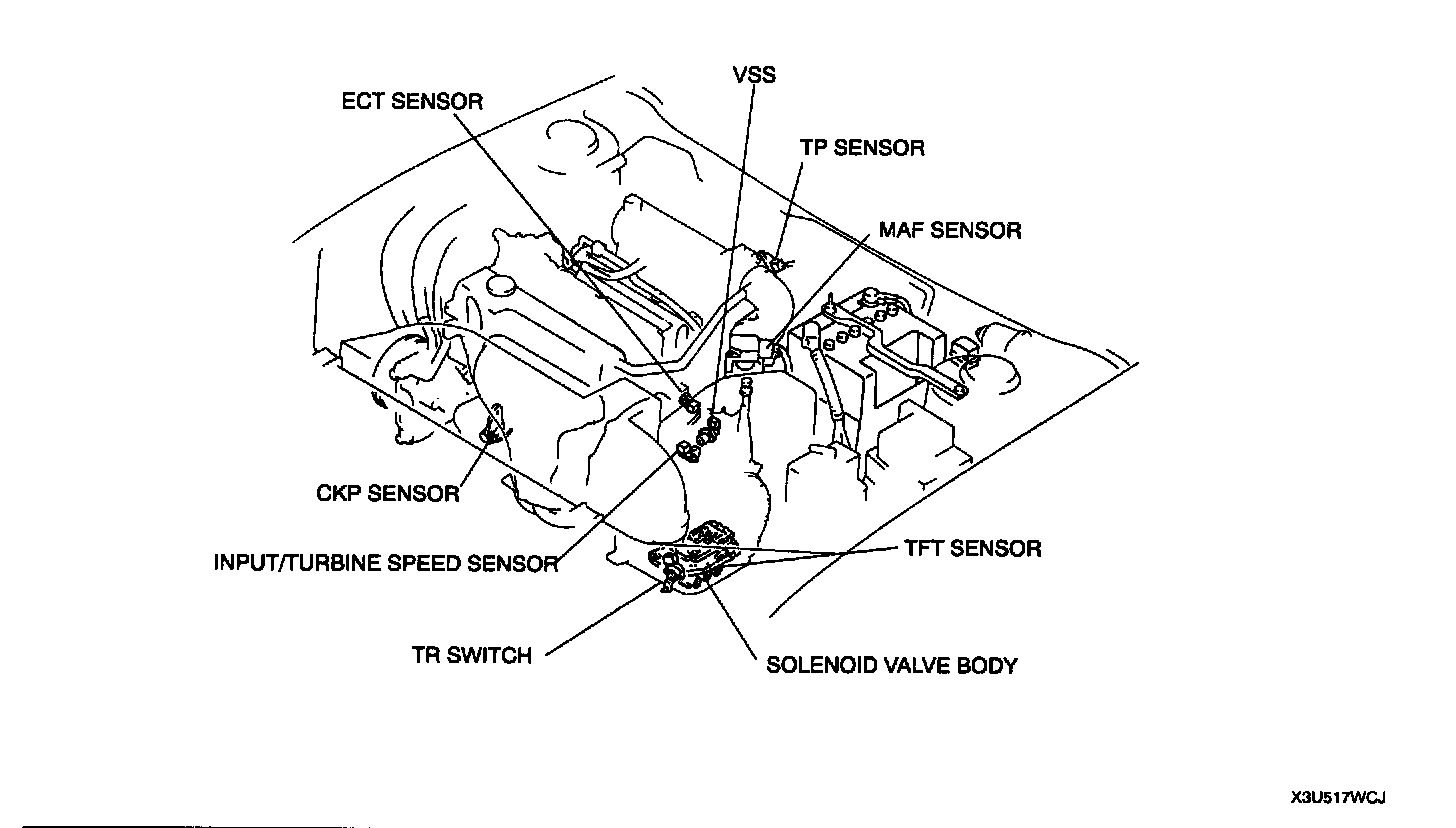

Automatic Transaxle Electronic Control System Structural View
