Using the SST (104 Pin Breakout Box)

CAUTION: The PCM terminal voltages vary with change in measuring conditions and vehicle conditions. Always carry out a total inspection of the input Systems, output systems, and PCM to determine the cause of trouble. Otherwise, a wrong diagnosis will be made.

PCM Inspection Using the SST (104 Pin Breakout Box)

1. Disconnect the negative battery cable.
2. Disconnect the PCM connector.

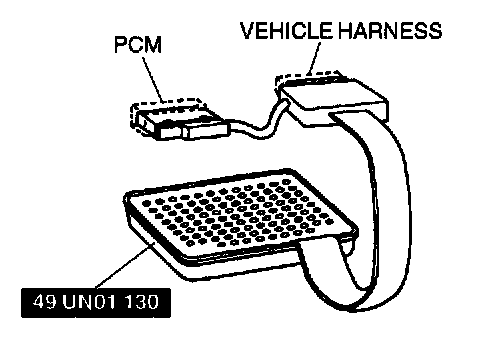

3. Connect the SST (104 Pin Breakout Box) to the PCM as shown.
4. Tighten the connector bolt.

Tightening torque
7.9 - 10.7 Nm (80 - 110 kg.m, 69.5 - 95.4 in.lb)

5. Connect the negative battery cable.

6. Measure the voltage at each terminal.
- It any incorrect voltage is detected, inspect the related system(s), wiring harnesses and connector(s) referring to the Action column in the terminal voltage table.

Terminal 1 To 18:

Terminal 19 To 30:

Terminal 31 To 43:

Terminal 44 To 57:

Terminal 58 To 70:

Terminal 71 To 85:

Terminal 86 To 97:

Terminal 98 To 104:

TERMINAL VOLTAGE TABLE (REFERENCE)

*1 : ATX only
*2 : Measure at AC range
*3 : The ECT when the engine is started should be lower than when the ignition switch was turned from on to off in the past by more that 50 °C (122 °F)
