Ignition System: Testing and Inspection

1. Disconnect the fuel pump relay connector.
2. Verify that each high-tension lead and connector is connected properly.

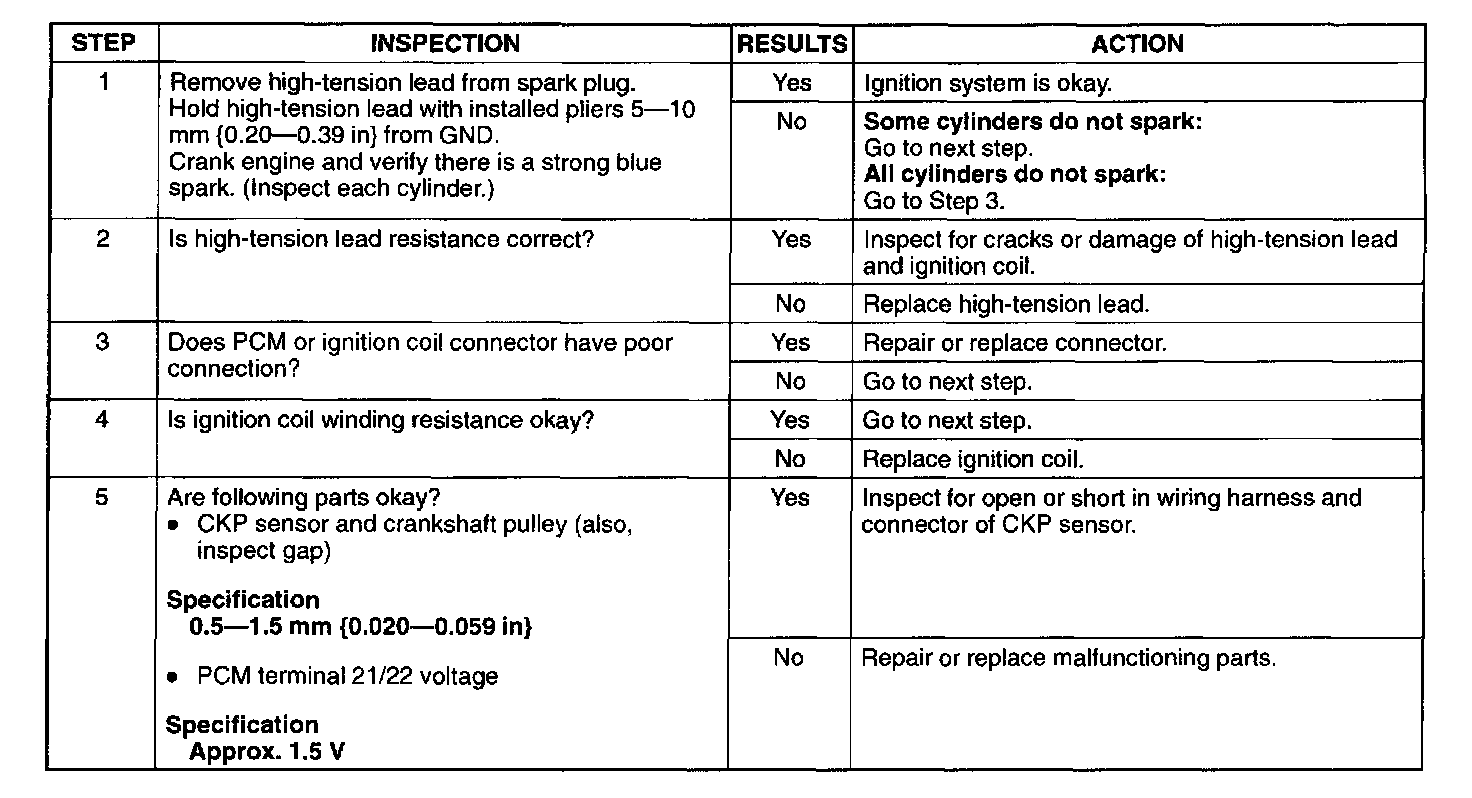

3. Inspect the ignition system in the following procedure.

WARNING: High voltage in the ignition system can cause strong electrical shock which can result in serious injury. Avoid direct contact to the vehicle body during the following spark test.
