Horn Relay: Service and Repair

HORN RELAY REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the main fuse block cover.
3. Remove the condenser fan relay.

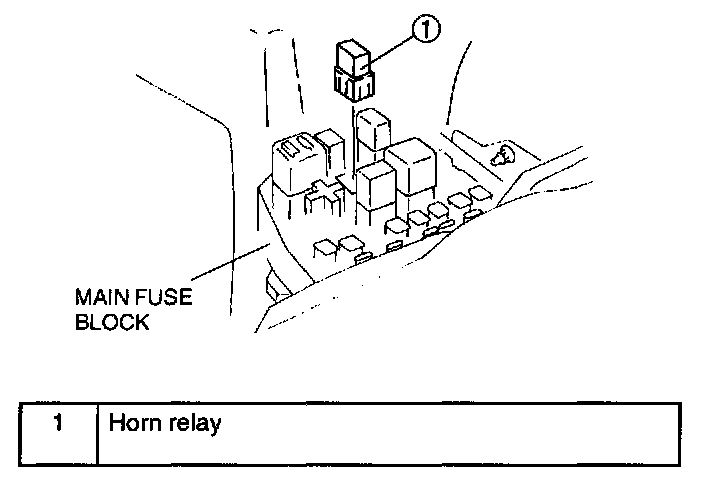

4. Remove in the order indicated in the table.
5. Install in the reverse order of removal.

Horn Relay Removal Note

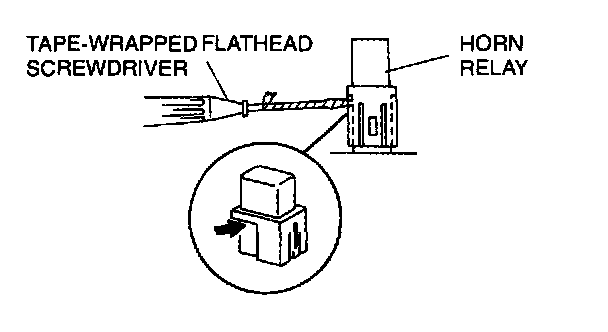

1. Insert a tape-wrapped flathead screwdriver to the horn relay groove as shown.

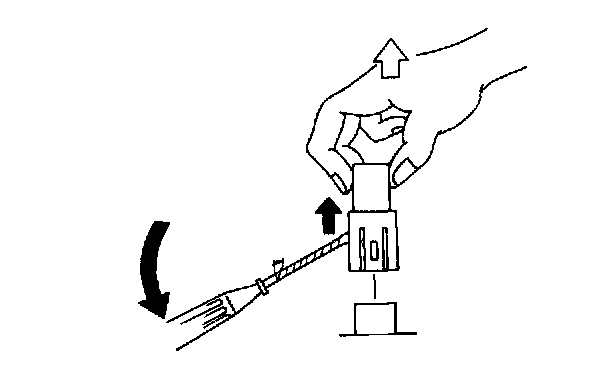

2. Push a tape-wrapped flathead screwdriver downward to remove the horn relay.
