Forward Clutch Preinspection

Forward Clutch Preinspection

Clutch operation
1. Set the forward clutch onto the oil pump.

Caution: Applying compressed air to the assembled clutch pack for longer than 3 s at a time will damage the seal.
Do not apply compressed air for more than the aforementioned time when testing the system.

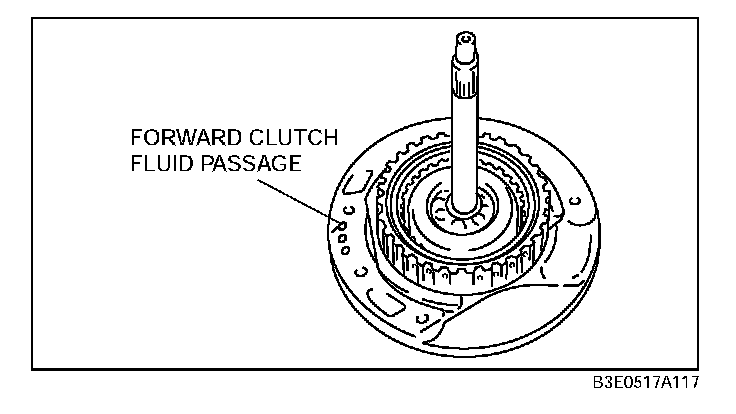

2. Inspect the clutch operation by applying compressed air through the fluid passages shown.

Air pressure:
392 kPa (4.0 kgf-cm2, 57 psi) max.

3. If not as specified, replace parts as necessary.
