Front Internal Gear and One-Way Clutch Component Preinspection

Front Internal Gear and One-Way Clutch Component Preinspection

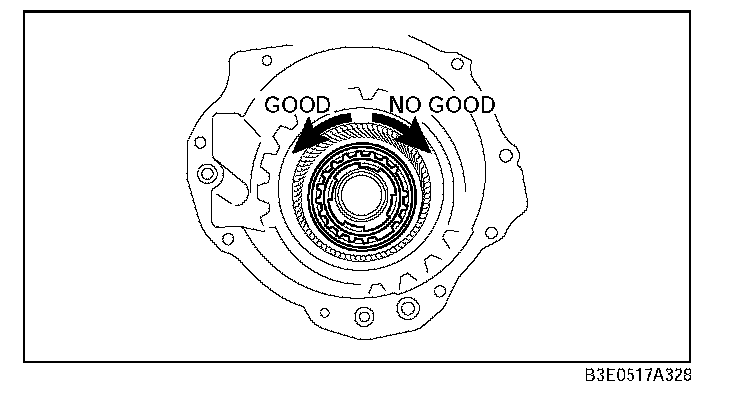

1. Set the front internal gear and one-way clutch component to the one-way clutch inner race. Verify that the one-way clutch rotates smoothly when turned counterclockwise and locks when turned clockwise.
2. If not as specified, replace parts as necessary.
