Assembly Procedure
Assembly Procedure1. Measure the spring free length.

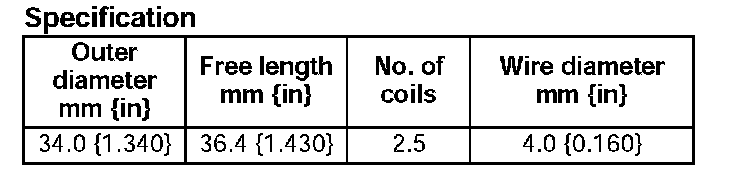

Specification
^ If not as specified, replace the spring.

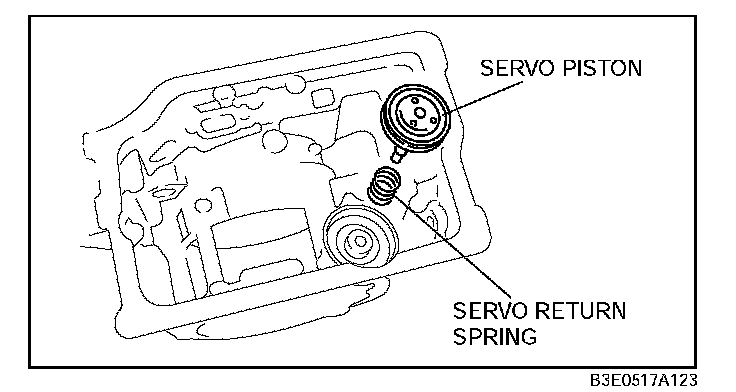

2. Install the servo return spring to the transaxle case.
3. Install the servo piston to the transaxle case.

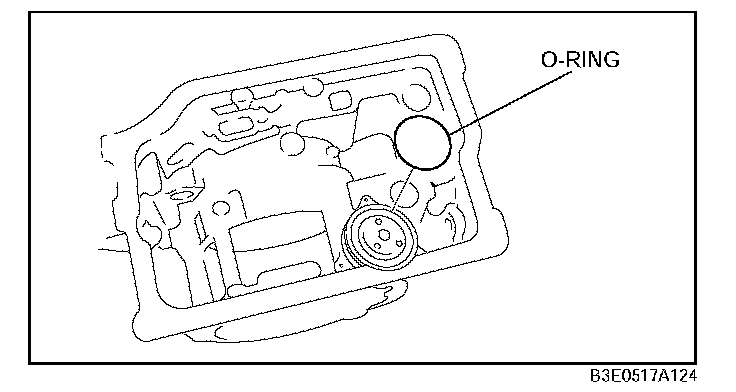

4. Apply ATF to new O-ring and install it to the transaxle case.
O-ring inner diameter:
70.2 mm (2.76 in)

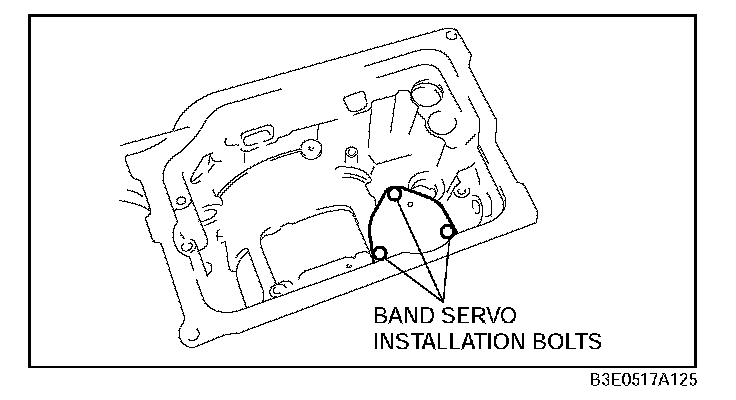

5. Install the servo retainer by tightening the bolts evenly and gradually.
Tightening torque:
10.8-13.7 Nm (110-140 kgf-cm2, 95.5-121 in. lbf.)
