Power Door Lock Switch: Testing and Inspection
DOOR LOCK SWITCH INSPECTION 1.
Disconnect the negative battery cable.
2.
Remove the driver's side front door trim.
3.

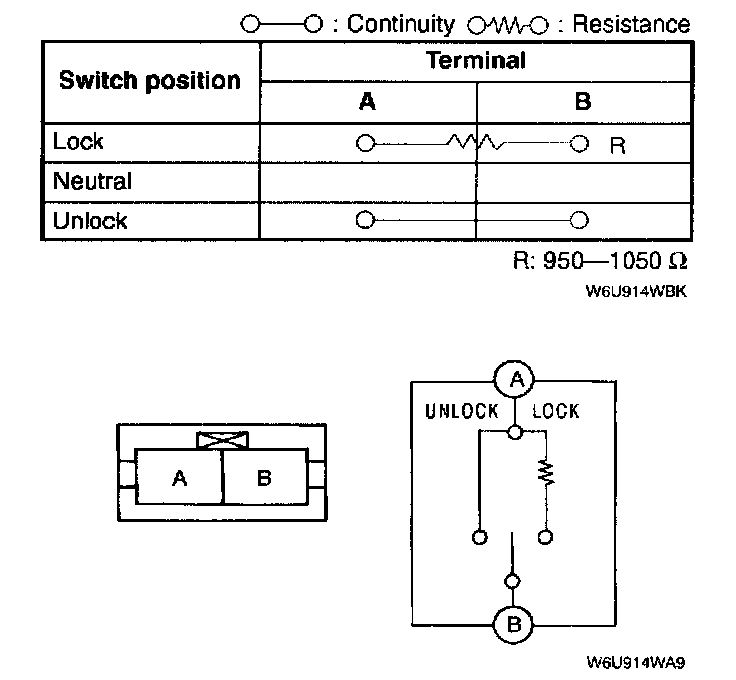

Check for continuity between the door lock switch terminals by using an ohmmeter.
-
If not as specified, replace the door lock switch.
