Traction Control Switch: Testing and Inspection
TCS OFF SWITCH INSPECTION 1.
Remove the TCS OFF switch.
2.

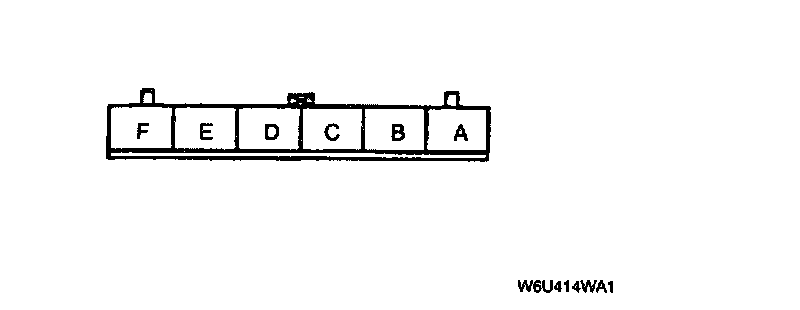

Measure the resistance between B and C of the connector.
^
If not within the specification, replace the TCS
Resistance
When switch is pressed:
100 ohms or less When switch is released:
Infinite
