Air Register: Testing and Inspection

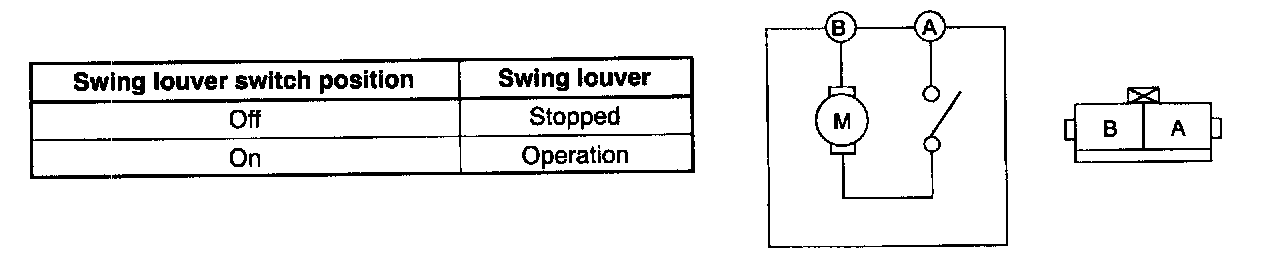

SWING LOUVER INSPECTION 1.
Remove the meter hood.
2.
Connect battery positive voltage to terminal B and ground to terminal A of the swing louver.
3.
Verify that the swing louver operates as indicated.
-
If not as specified, replace the swing louver.
