Blower Motor Relay: Service and Repair

1. Disconnect the negative battery cable.
2. Remove the nuts to move the main fuse block to the side.

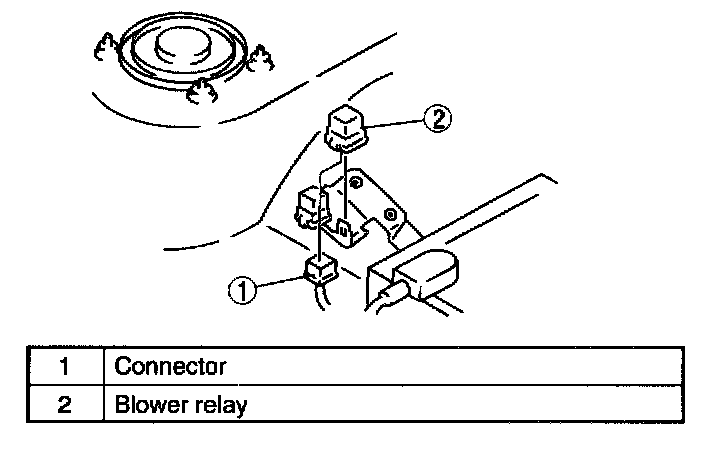

3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
