Receiver Dryer: Description and Operation

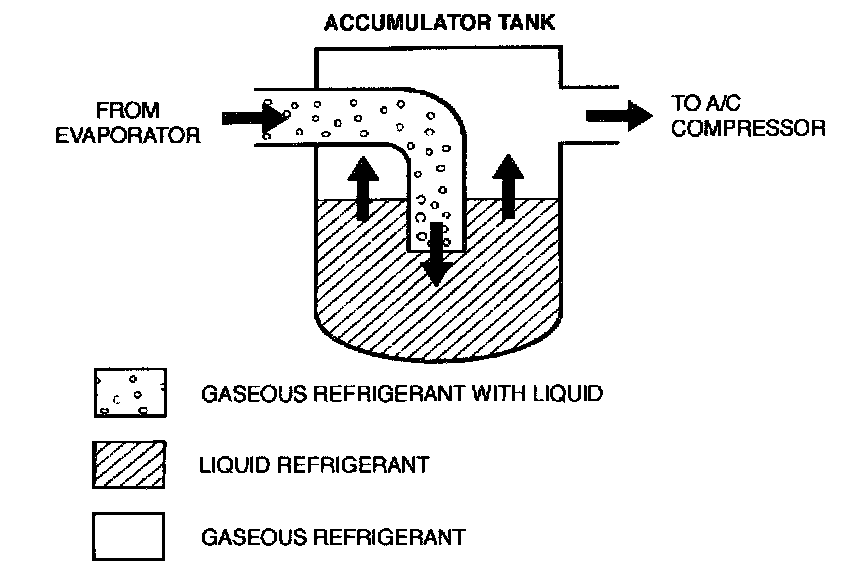

ACCUMULATOR TANK DESCRIPTION -
The accumulator tank is a device which separates the gas from the liquid for the
refrigerant.
-
The accumulator tank prevents the liquid from being compressed in the A/C compressor by sending only gaseous
refrigerant to the compressor.
-
Desiccant a drying agent is installed in the accumulator tank and moisture in the system is absorbed.
