Courtesy Lamp: Service and Repair

1. Disconnect the negative battery cable.

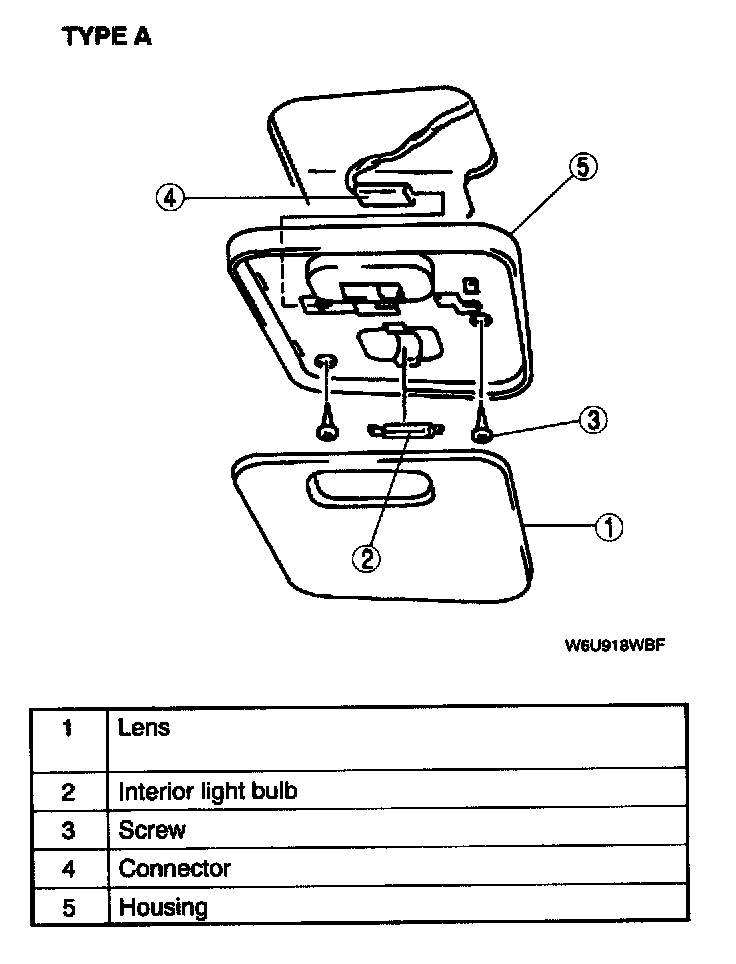

Type A:

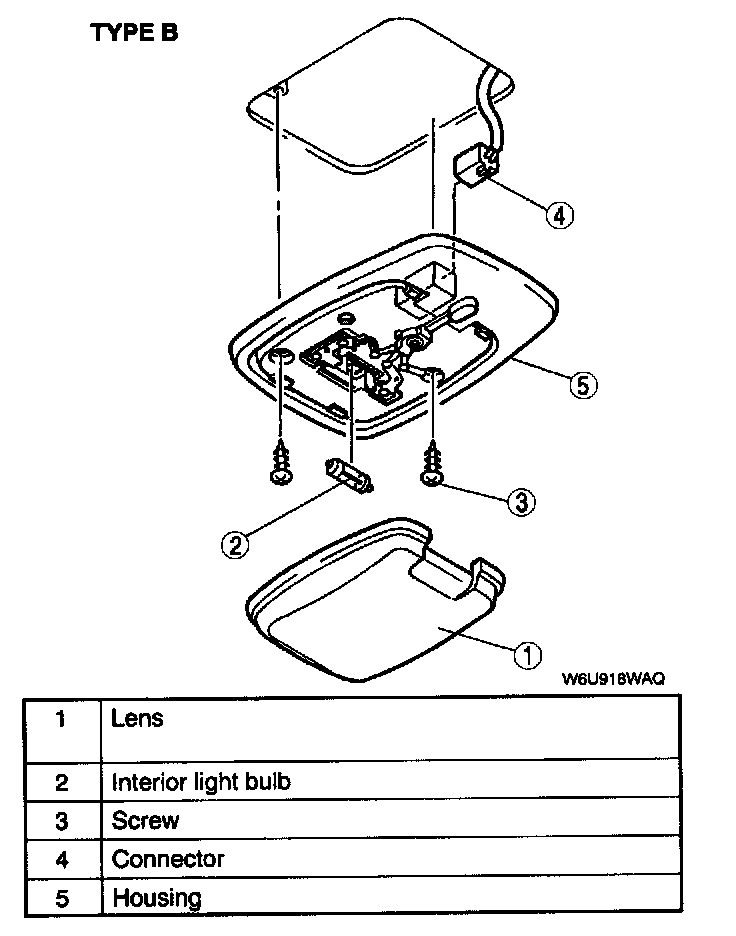

Type B:

2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.

NOTE:
- To remove type A interior tight bulb, move the bulb gently to the left or right using a small screwdriver and pull down out of the clip. To install a new bulb, loop a small rubber band around the bulb to hold it secure as it is positioned in one of the clips. Then with the assistance of the rubber band, move the bulb over to go into the remaining clip.
- When the bulb is in both clips, carefully remove the rubber band. Gently bend the two clips outward using a screwdriver to secure bulb.




Lens Removal Note
1. Insert a tape-wrapped, flathead screwdriver as shown in the figure.
2. Twist the flathead screwdriver to remove the lens.
