Headlamp: Service and Repair

CAUTION: When you Install the headlight, the headlight may hit the edge of the front fender panel. This may cause scratches on the front fender panel. To avoid this, attach protective tape to the edge of the front fender panel.

1. Disconnect the negative battery cable.
2. Remove the front combination light.

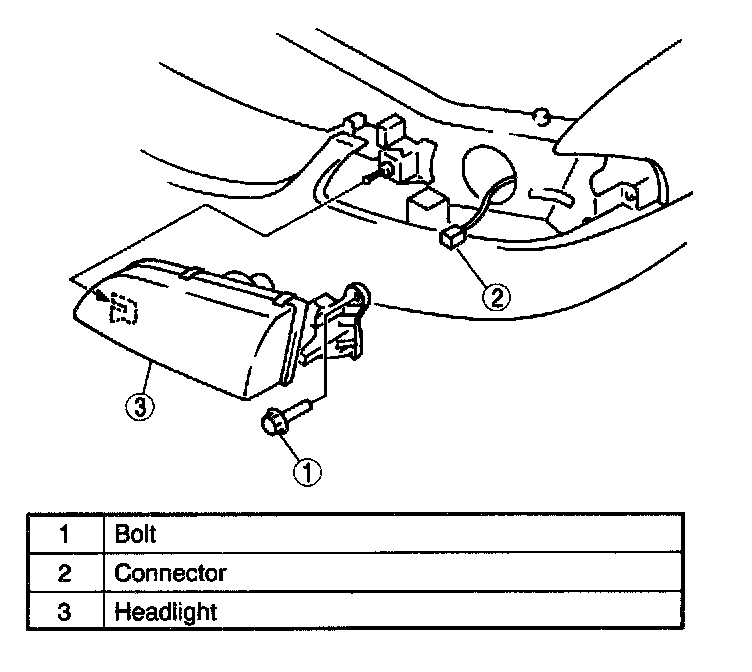

3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
5. Adjust the headlight aiming.
