IAT Sensor Resistance Inspection
1.
Remove the intake air temperature sensor.
2.

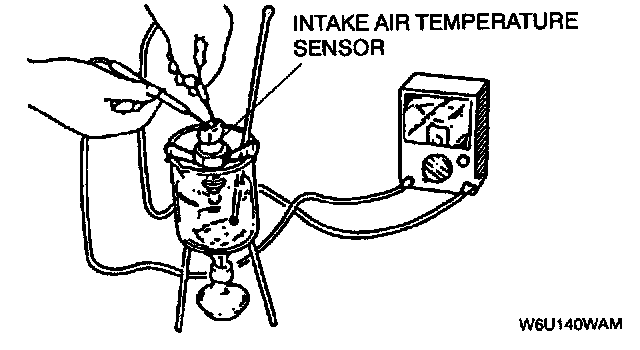

Place the intake air temperature sensor in water with a thermometer, and heat the water gradually.

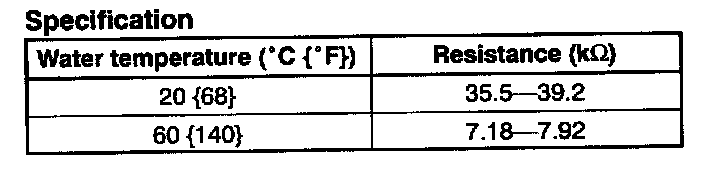

Specification:
3.
Measure the resistance of the intake air temperature sensor by using an ohmmeter.
-
If not as specified, replace the intake air temperature sensor.
Tightening torque :
10.8 - 16.2 N.m {110 - 166 kgf.cm, 95.5 - 144 in.lbf}
