Using the NGS Tester
1.

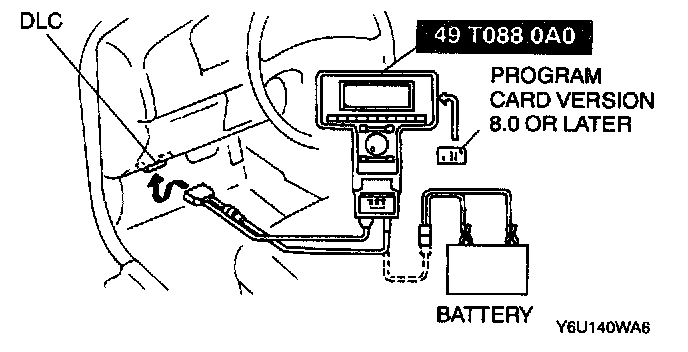

Connect the SSTs (NGS tester) to the data link connector.
2.
Turn the
ignition switch to
ON. 3.
Select the "PID/DATA MONITOR AND RECORD" function on the NGS tester display and press TRIGGER.

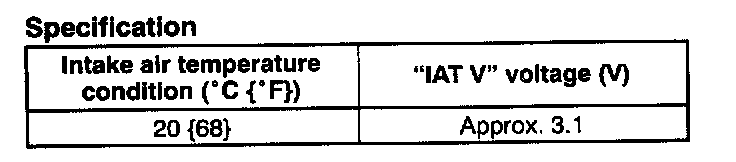

Specification:
4.
Select "IAT V" on the NGS tester display and press START. The NGS tester measures and shows the voltage.
-
If not as specified, check the related harness and intake air temperature sensor resistance.
