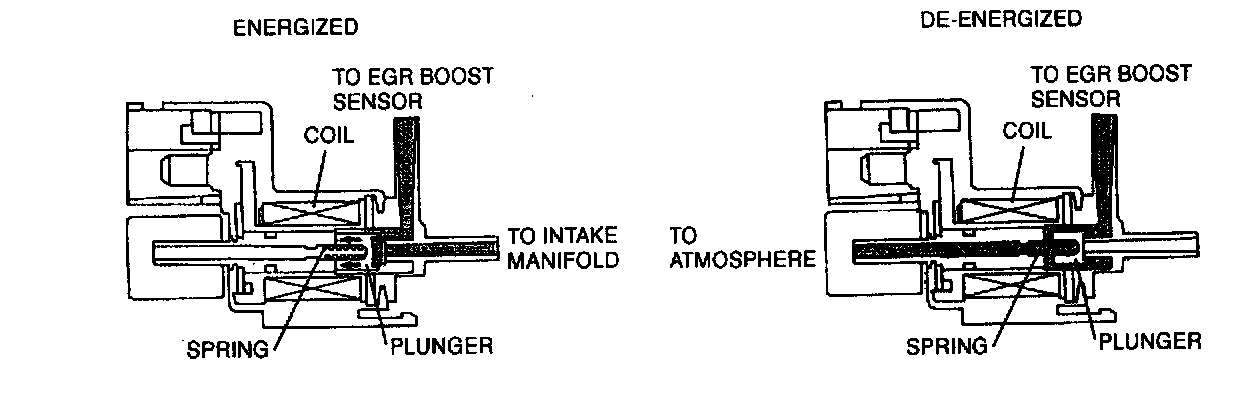

EGR Boost Control Solenoid: Description and Operation
-
The
EGR boost solenoid valve switches the application of barometric pressure or intake manifold vacuum to the
EGR boost sensor.
-
Intake manifold vacuum is applied to the
EGR boost sensor when the
solenoid is energized.
