Differential

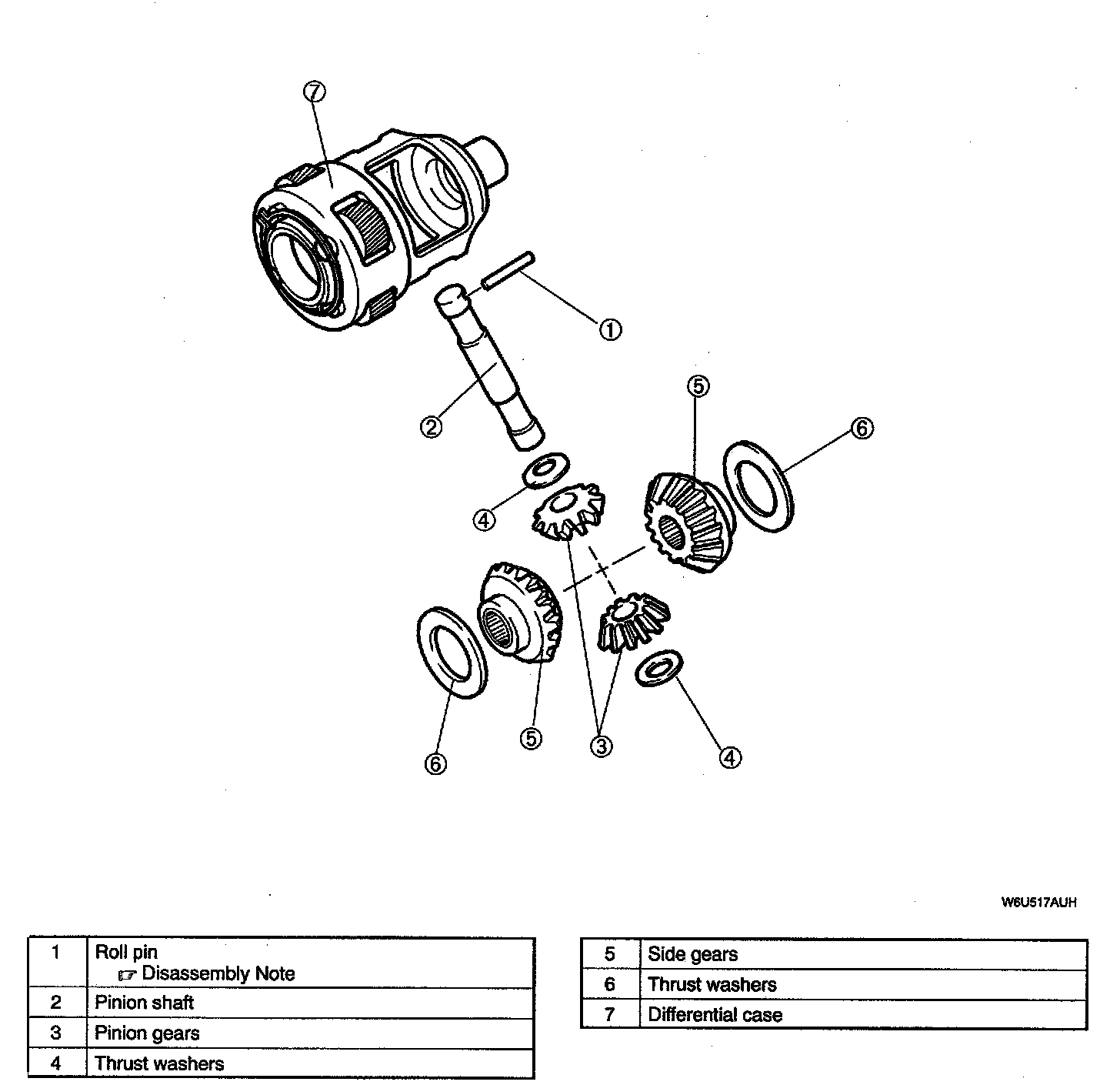

DIFFERENTIAL DISASSEMBLY/ASSEMBLY 1.
Disassemble in the order indicated in the table.
2.
Assemble in the reverse order of disassembly.
ROLL PIN DISASSEMBLY NOTE -

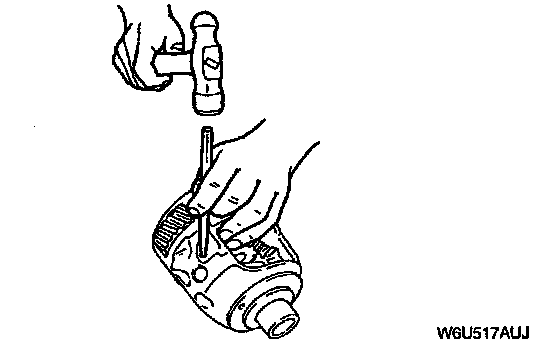

Use a punch to remove the pinion shaft roll pin.
DIFFERENTIAL ASSEMBLY PROCEDURE 1.

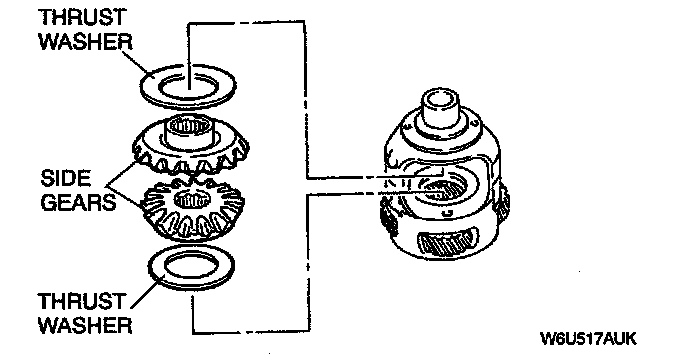

Install the side gears and thrust washers.
2.

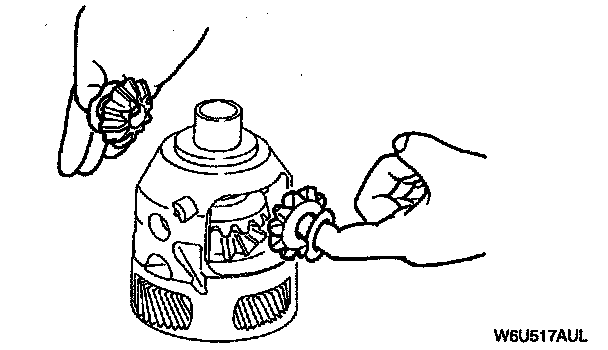

Install the pinion gears and thrust washers.
3.

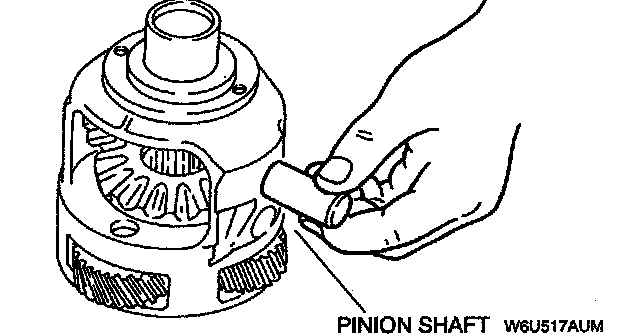

Install the pinion shaft.
4.

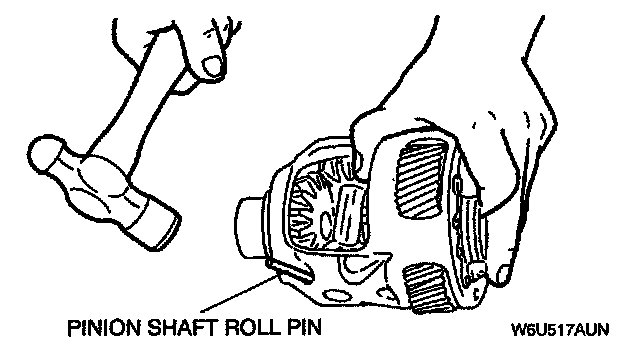

Install the pinion shaft roll pin.
