Rear Door Glass and Guide

1. Lower the rear door glass fully.
2. Remove the rear door screen. (See REAR DOOR LOCK AND OPENER REMOVAL/INSTALLATION.)
3. Remove the rear beltline molding.

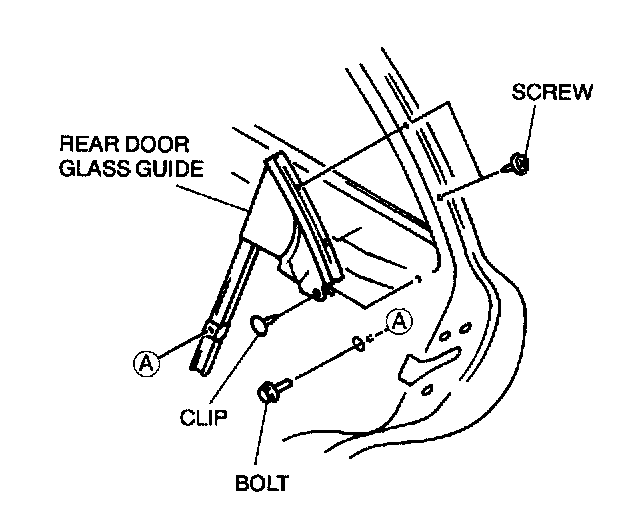

4. Remove the screws, bolt and clip.
5. Remove the rear door glass guide.

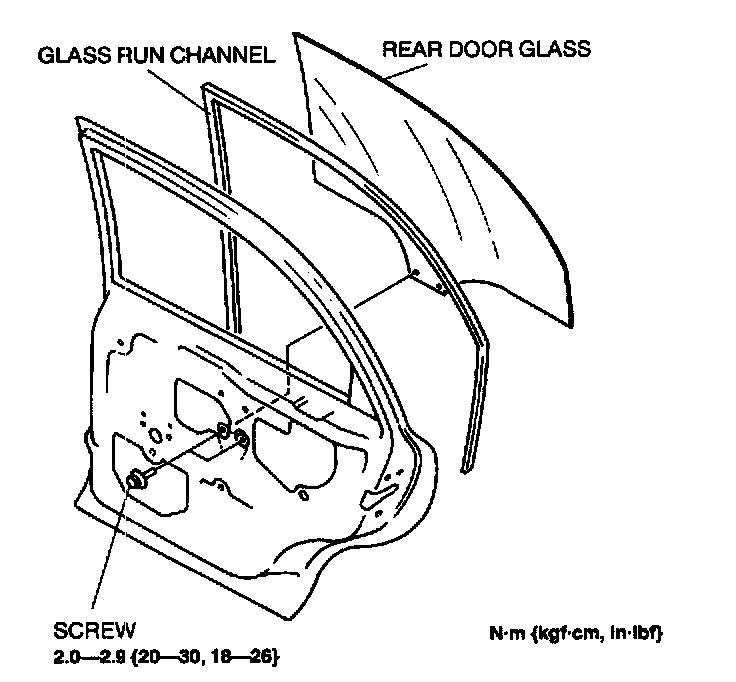

6. Raise the rear edge of the rear door glass about 90 mm {3.5 in} from the fully lowered position.




7. Remove the screws.
8. Remove the rear door glass.
9. Remove the glass run channel.
10. Install in the reverse order of removal.
