Inspection of Resistance
1.
Disconnect the battery negative cable.
2.
Disconnect the
crankshaft position sensor connector.
3.

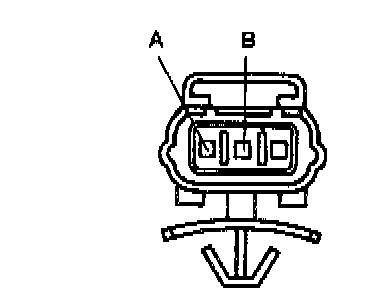

Measure the resistance between terminals A and B by using an ohmmeter.
-
If not as specified, check related wiring harness. If they are okay, replace the
crankshaft position sensor.
Specification : Approx.
550 ohms
