General Module: Service and Repair

CAUTION:
- Electronic modules are sensitive to electrical charges. If exposed to these charges, damage may result.
- Prior to removal of the module, It is necessary to upload module configuration information to the NGS Tester. This information needs to be downloaded into the new module once Installed. For additional information, refer to MODULE CONFIGURATION PRINCIPLES OF OPERATION.

1. Disconnect the negative battery cable.
2. Remove the audio unit.
3. Remove the center trim finish panel.

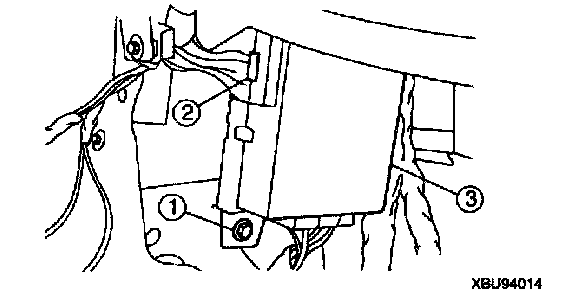

4. Remove the GEM/CTM retaining screw (1).
5. Remove the electrical connectors (up to four) (2).




6. Remove the GEM/CTM (3).

CAUTION: Once the new module is installed, it is necessary to download the module configuration information from the NGS Tester into the new module. For additional Information, refer to MODULE CONFIGURATION PRINCIPLES OF OPERATION.

NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 10 miles (16 km) or more to relearn the strategy.

7. Install in reverse order of removal.

Tightening torque
1.6 - 2 Nm { 16.3 - 20 kgf.cm, 9 - 18 in.lbf }
