Certification Labels

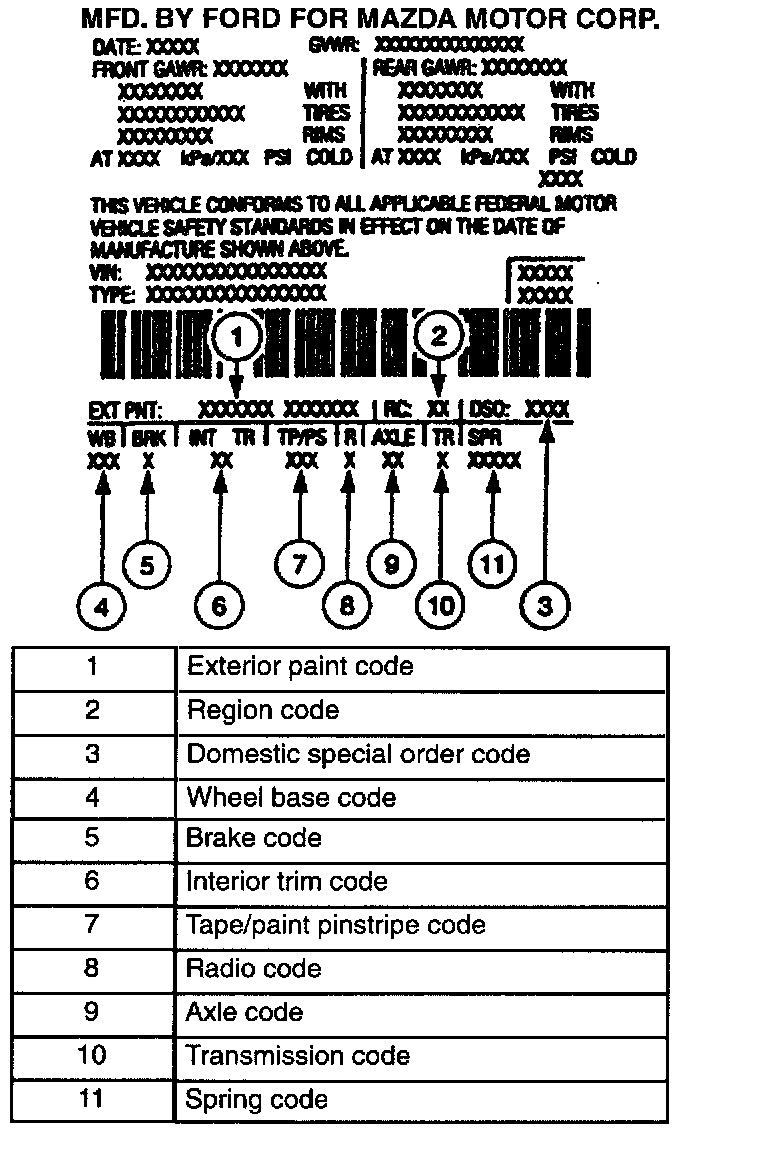

Vehicle Certification (VC) Label

The vehicle certification (VC) label contains the manufacturer name, the month and year of manufacture, the certification statement, and the VIN. It also includes gross vehicle weight ratings (GVWR).

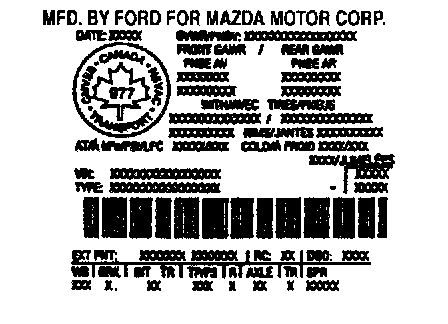

Vehicle Certification (VC) Label Canada (Typical)

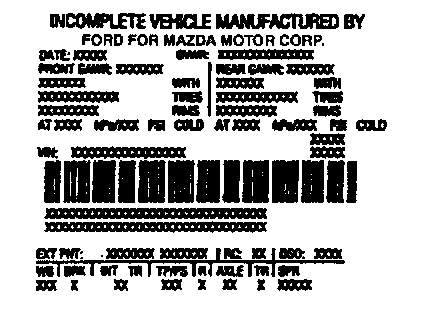

Vehicle Certification (VC) Label Incomplete Vehicle (Typical)

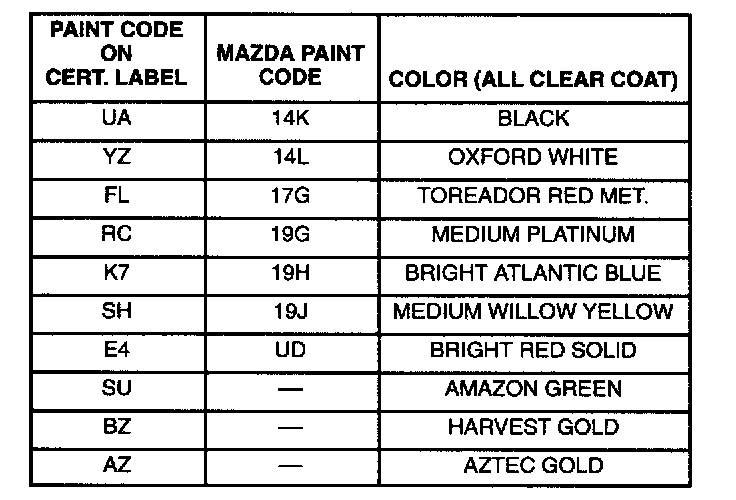

Paint Codes

Radio Codes
- 7 - AM/FM stereo with clock
- 9 - AM/FM stereo with cassette and clock
- K - AM/FM stereo with cassette, compact disc player and digital sound processing
- Z - AM/FM stereo with compact disc player

Axle Codes
The following lists the gear ratios on axles.
- 84-3.45 non-limited slip
- 86 -3.73 non-limited slip
- 87-4.10 non-limited slip
- 95 -3.55 non-limited slip
- R5 -3.55 limited slip
- 96-3.73 non-limited slip
- R6 - 3.73 limited slip
- F6 -3.73 limited slip
- F7 -4.10 limited slip
- F5 - 3.73 limited slip

Transmission Codes
- M - Five speed manual (M5OD)
- D - Five speed automatic (5R55E)
- T - Four speed automatic (4R44E)

Interior Trim Codes
The following lists the interior trim and interior color codes.

Seat Type Codes (left digit)
- H or 4-Vinyl split bench seat
- E or 3 - Cloth split bench seat
- G or 2 - Cloth split bench seat

Interior Color Codes (right digit)
- X - Medium Prairie Tan
- 2 - Medium Graphite Gray

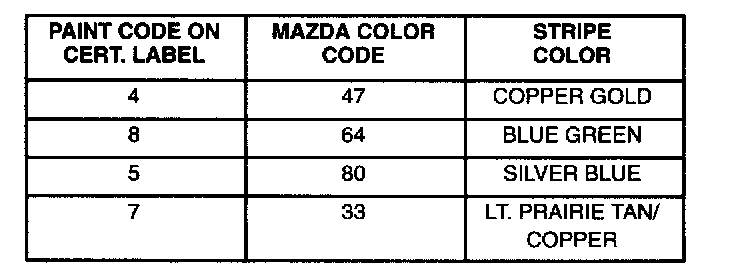

Tape/Paint Pinstripe Code

Spring Codes
The following lists available spring codes.

- A-4x2
- C-4x2
- D-4x2
- E-4x2
- G-4x2
- H-4x2
- J-4x2
- 2-4x2
- 3-4x2

Torsion Bars
- B-4x4
- F-4x4
- 1-4x4

Rear Springs
- 3
- 7
- C
- E
- K
- N

DRIVELINE SYSTEM CERTIFICATION LABEL AND IDENTIFICATION TAGS

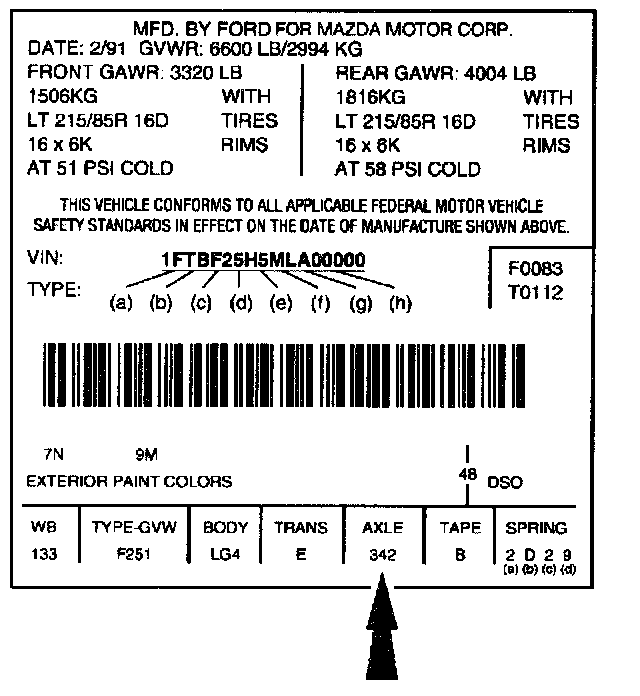

Vehicle Certification (VC) Label Example

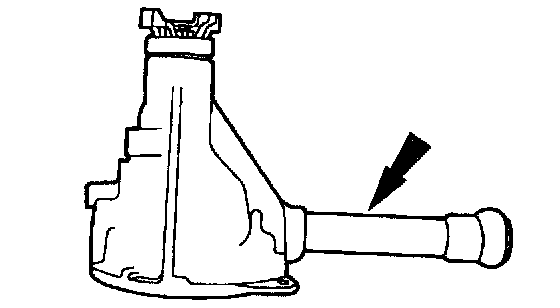

Front Axle Identification Tag Location

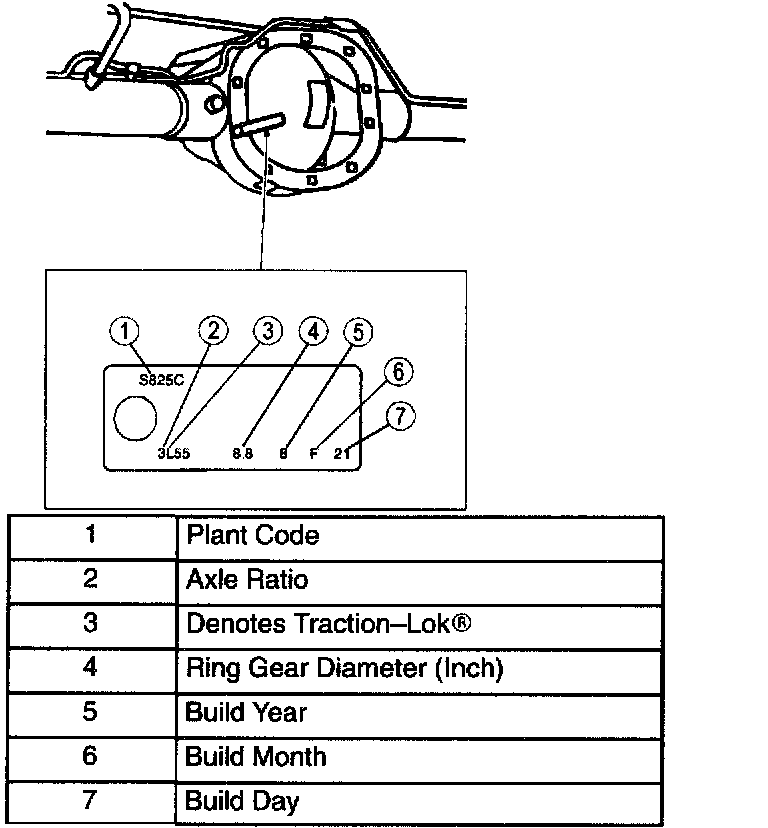

Rear Axle Identification Tag

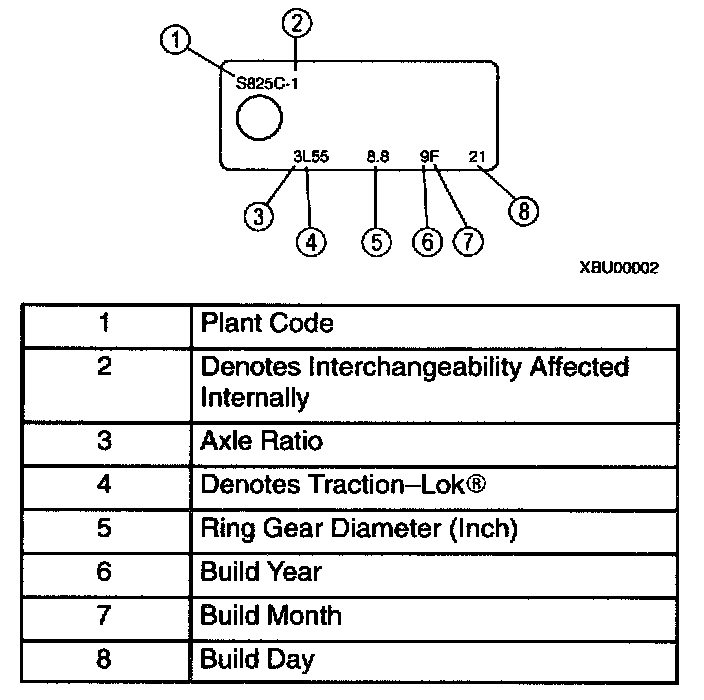

Axle Identification Tag Denoting Interchangeability Affected Internally


CAUTION: The axle identification tag is the official identifier. Do not damage the tag. Always reinstall the tag after removing it for axle inspection/repair.
