Power Mirror Switch: Service and Repair
1.
Remove the door trim finish panel.
2.

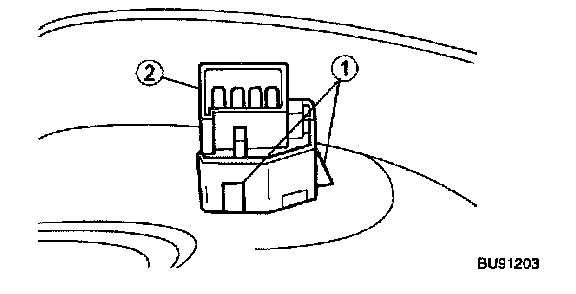

Depress the locking tabs (1).
3.
Remove the outside mirror switch (2).
4.
Install in reverse order of removal.
