RABS

RABS CONTROL MODULE REMOVAL / INSTALLATION
1. Remove the audio unit.
2. Remove I/P center trim.
3. Remove the ash tray.

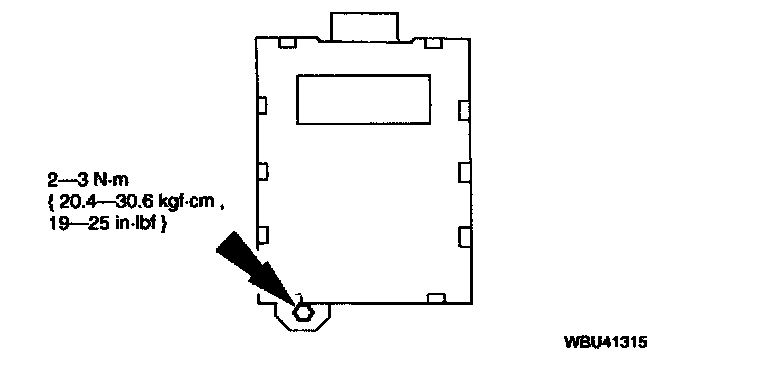

4. Remove the bolt.
5. Disconnect the RABS control module connector O-238.
6. Remove control module.
7. Install in reverse order of removal.
