General Module

T-1 Generic Electronic Module (GEM) System:

T-1a Generic Electronic Module (GEM) System:

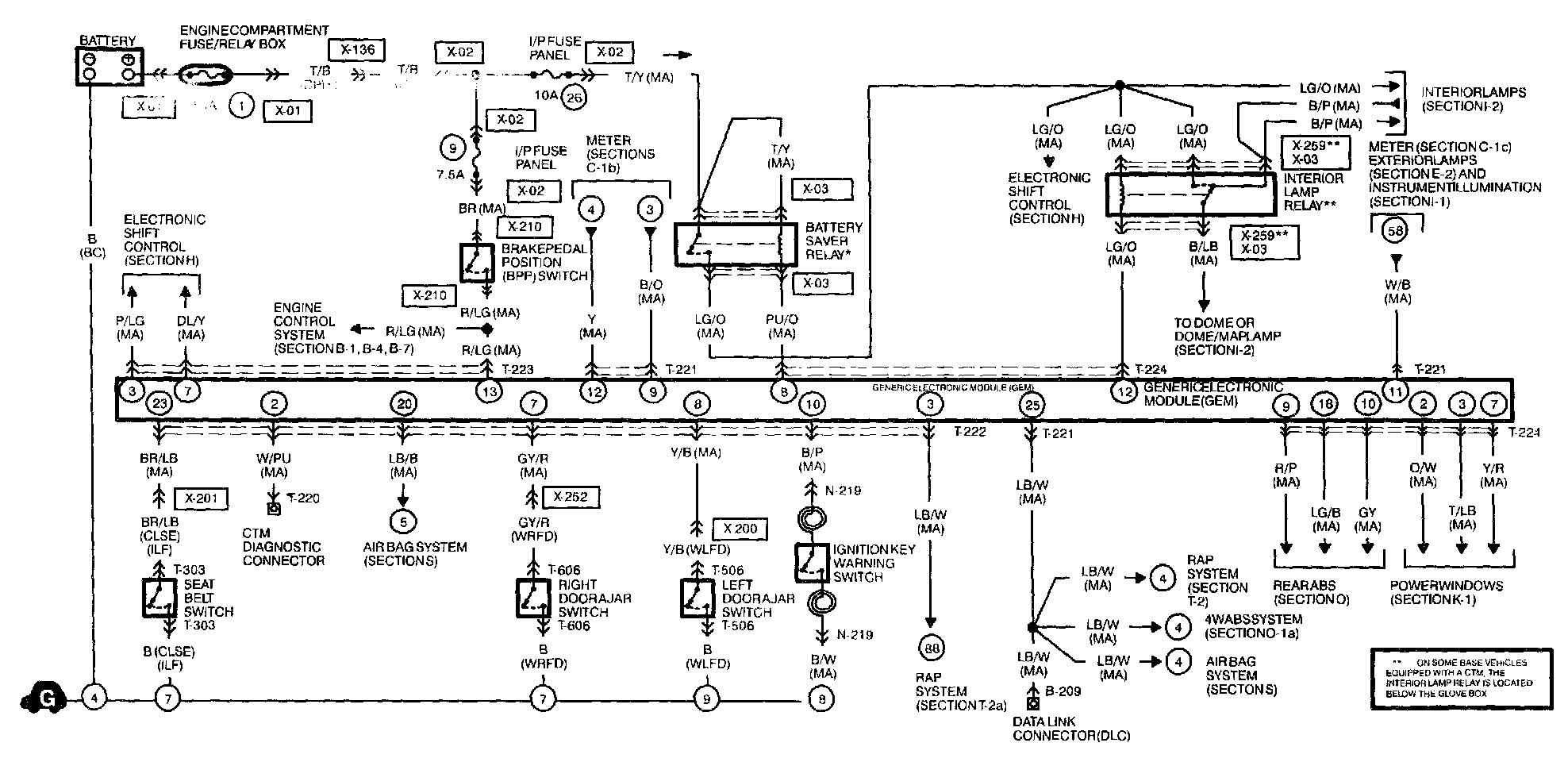

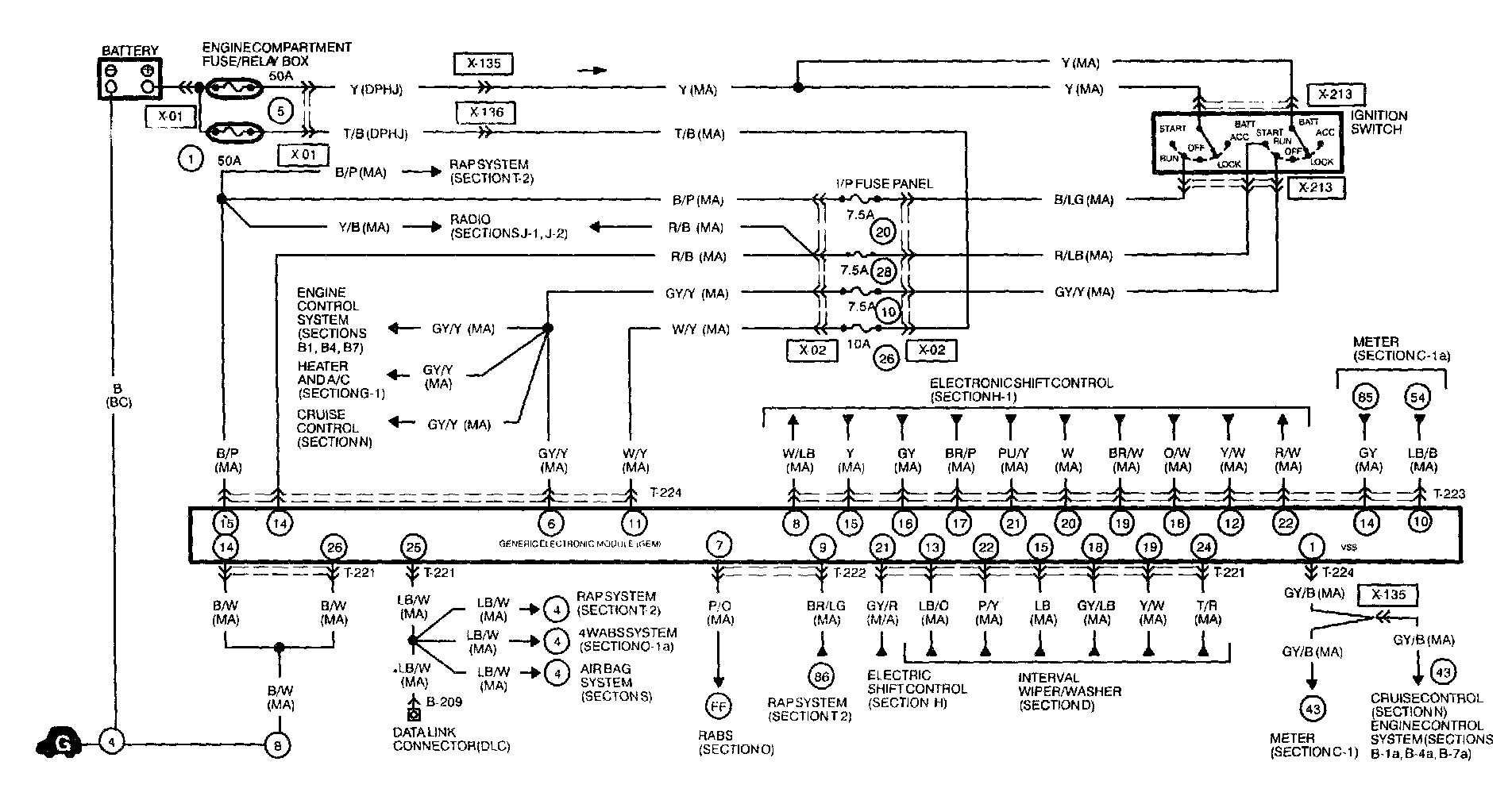

Electrical Diagram








Connector Views

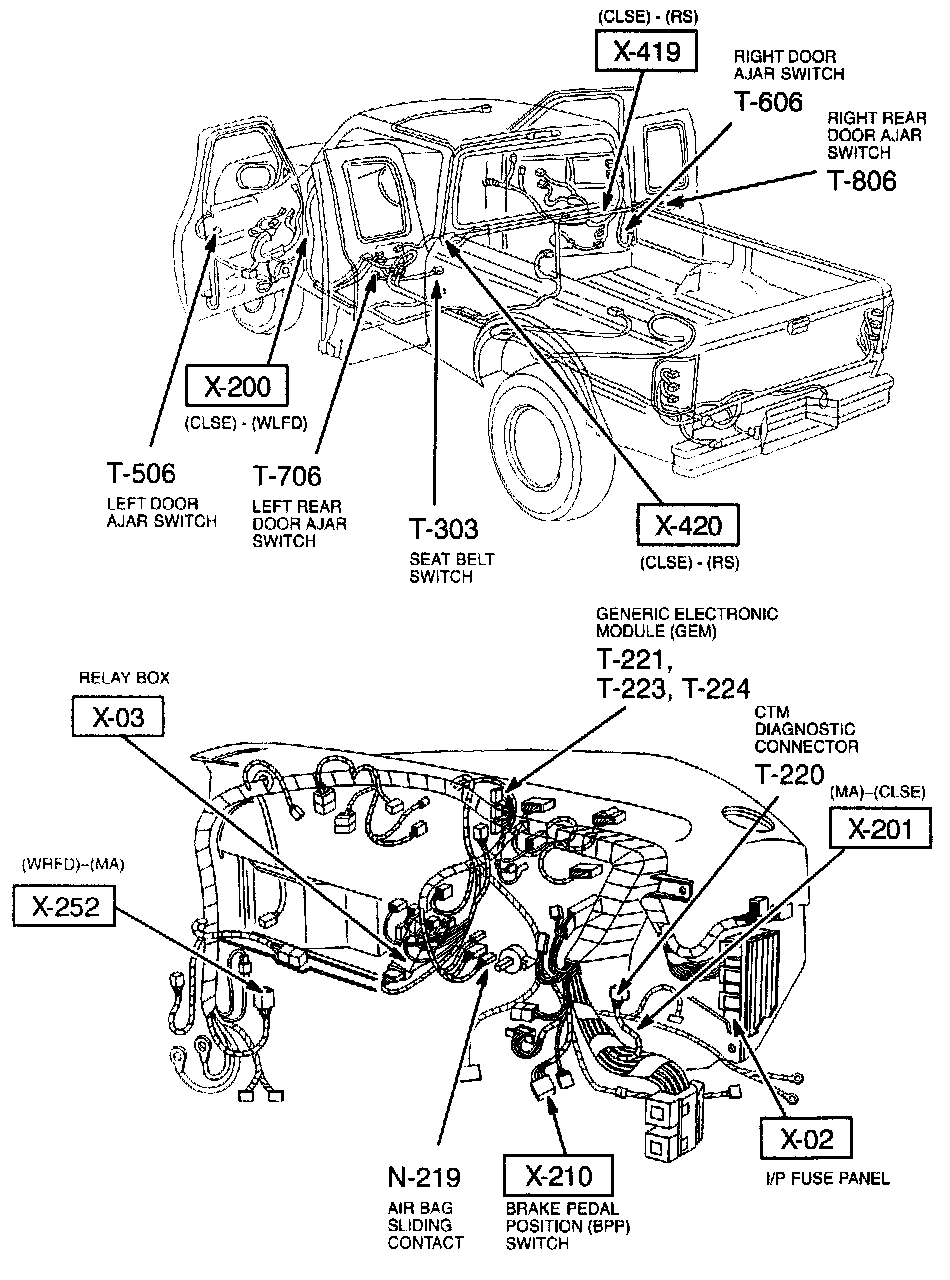

Connector Locations: Engine Compartment

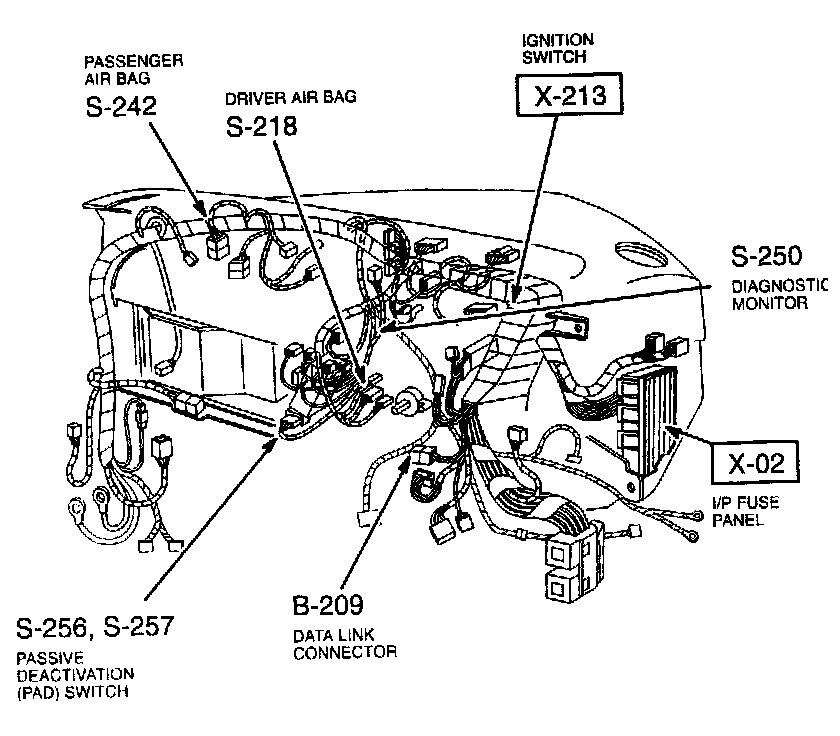

Connector Locations: Overall Vehicle and Dashboard

REFERENCED DIAGRAMS

In many instances electrical diagrams will refer you to another section to complete the circuit. These referenced sections can be found at vehicle level under "Diagrams."
Diagrams
