Valve Body, A/T

EXPLODED VIEWS

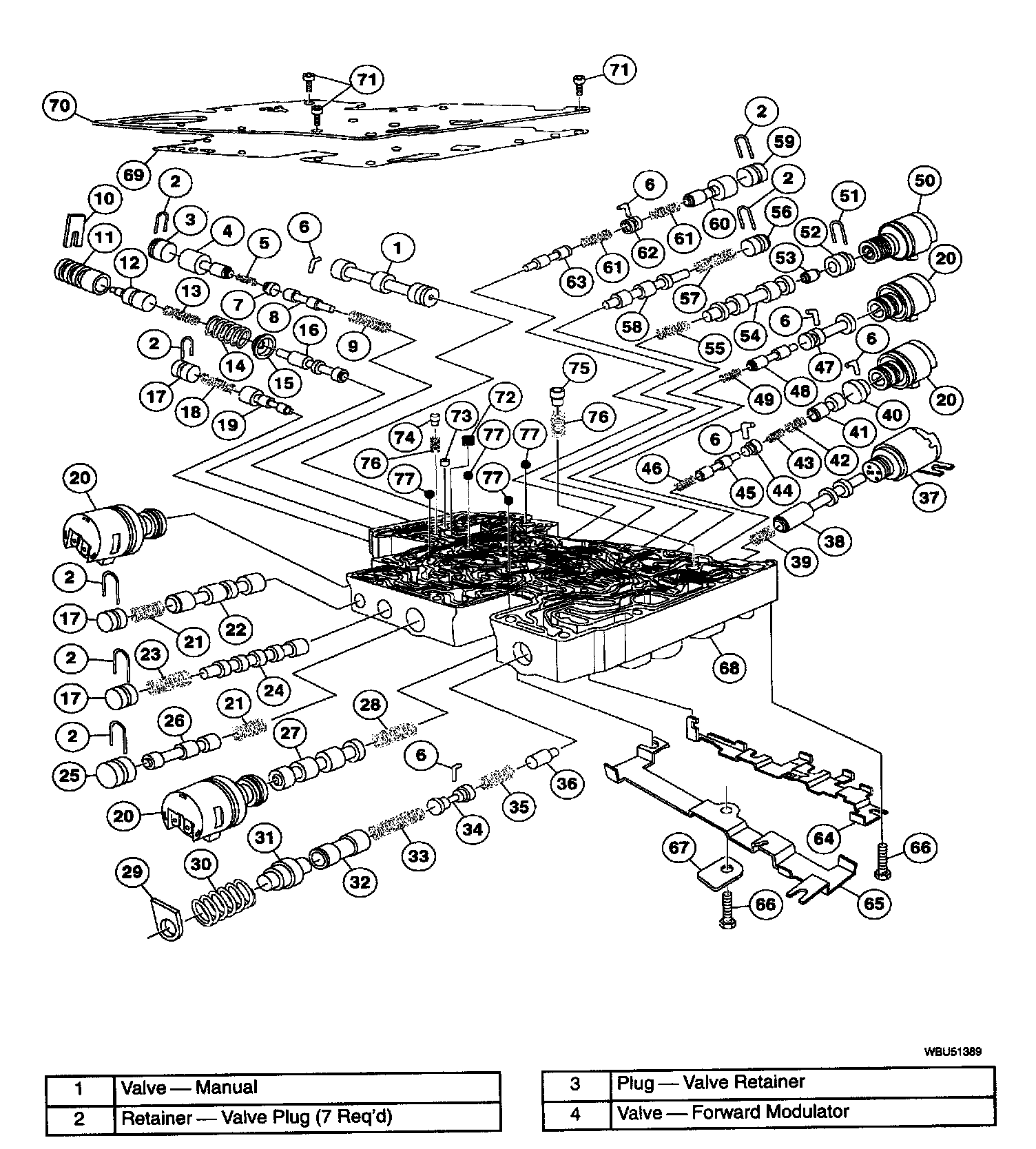

Exploded View & Legend 1 - 4

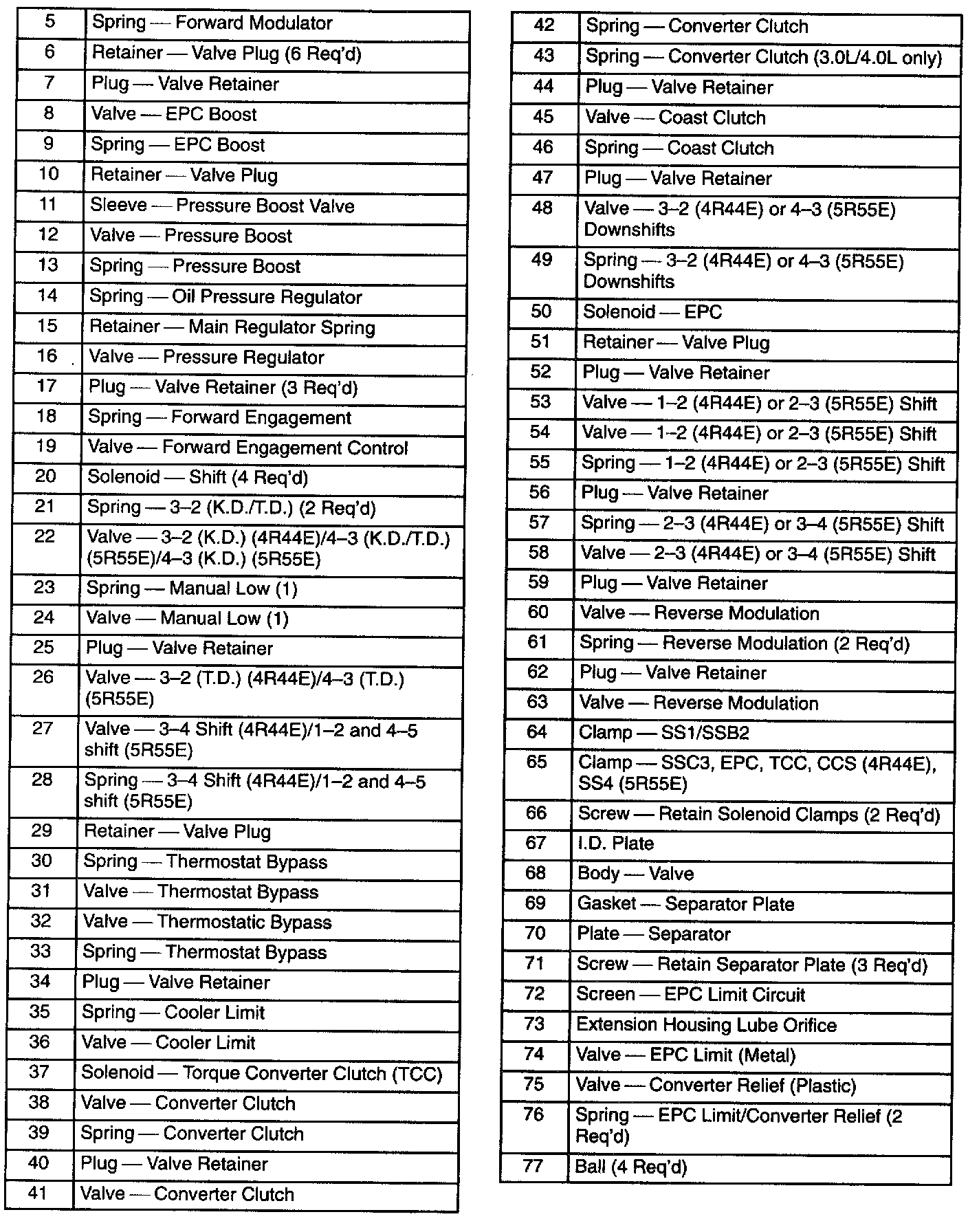

Legend 5 - 77

- All fluid drawn from the transmission fluid pan by the oil fluid pump passes through the fluid strainer.
- The strainer and its accompanying seals are part of the fluid path from the sump (pan) to the fluid pump.
- The strainer has a bypass section which allows fluid vented at the main regulator valve to be recirculated to the fluid pump, without passing through the strainer.

Control Valve Body Assembly
- The control valve body and related components are part of the pressure side of the hydraulic system.
- The control valve body consists of the solenoids, the valve body assembly and the separator plate.
- These components combine to convert electrical signals into hydraulic actions.

All valves in the control assembly are anodized aluminum and cannot be sanded, filed, or dressed in any other way. Any damage to the valves that prevents or restricts their movement requires replacement of the entire main control valve body.
