Clutch Switch: Service and Repair
1.
Disconnect negative battery cable.
2.
Disconnect CPP switch electrical connector.
3.

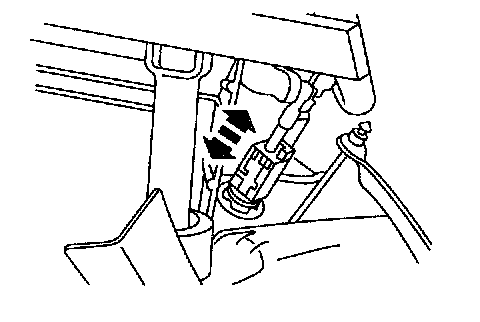

Spread the CPP switch apart and remove from the pedal rod.
4.
Install in reverse order of removal.
