NGS (VER. 9.0 Card) 1998-2000 Truck 4WABS Module Repl. / Gem

(Module Replacement)

1. Connect NGS DLC cable to vehicle 16-Pin OBDII Data Link Connector, (lower portion of dash in front of driver).

2. Select "Year and Model" of truck, press TRIGGER.

3. Select the entered vehicle", press TRIGGER.

4. Use scroll dial to highlight "B Series Truck Special Function", press TRIGGER.

5. Use scroll dial to highlight "Module Configuration", press TRIGGER.

6. Screen says "Retrieving Module Information, Please Wait".

7. Screen says "Communication Link Established-Make a selection from the following fields", Select "Vehicle". Press Trigger.

NOTE:
Obtain the following information from the vehicle:

- Tire Size (on tire sidewall)

- Axle ratio and Axle Diameter (found on tag on axle housing)

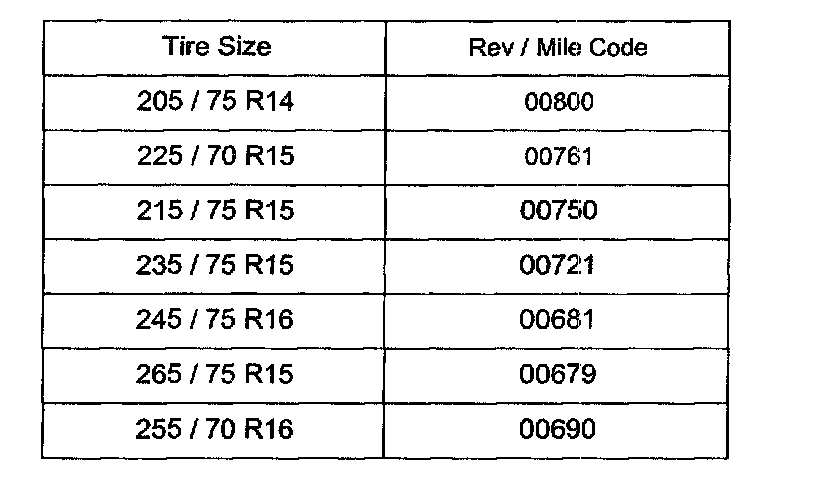

8. Select "Tire Size". Press Trigger. Use the keypad and the table to enter the REVS/Mile.

NOTE:
Example: if revs/mile is 680, enter 00680.





9. Highlight "Tone Ring Size", press TRIGGER.

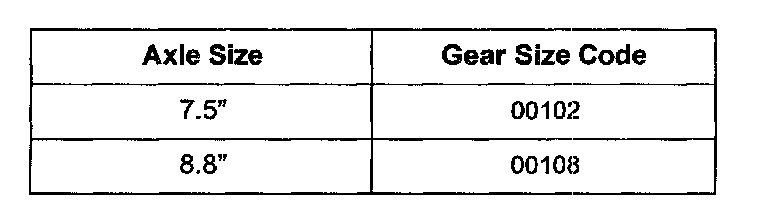

- Select the correct size using the table

10. Select "Option", Press TRIGGER

11. Select "ABS system", Press TRIGGER

12. Select "Vehicle" - it should indicate "B-=Series", Press TRIGGER.

13. Message "Module Configuration Complete" is displayed. Press TRIGGER.

14. Confirm all entries and select "Done"

15. Now you must configure the GEM or CTM.

- Vehicles with AT or power windows, mirrors, and door locks are equipped with a GEM

A. Select "GEM / Tire Size / Axle Ratio". Press TRIGGER.

B. Message "Retrieving Module Information, Please Wait".

C. Message "Communication link established-Make a selection from the following fields", select "Vehicle". Press TRIGGER.

D. Confirm information for Tire Size, Axle Size and Rev/Mile are the same as ABS:

- If all data matches ABS, select "Cancel".

- If data does not match, repeat steps 8-14.

- MT vehicles without power equipment are equipped with a CTM

A. Select "CTM / Tire Size / Axle Ratio". Press TRIGGER.

B. Message "Retrieving Module Information, Please Wait".

C. Message "Communication link established-Make a selection from the following fields", select "Vehicle". Press TRIGGER.

D. Confirm information for Tire Size, Axle Size and Rev/Mile are the same as ABS:

- If all data matches ABS, select "Cancel".

- If data does not match, repeat steps 8-14. 16. Once all data is verified, press "Cancel" two-times to exit.

17. Programming is now complete.
